WIPCOOL Infrared Thermal Imaging Camera
Pickup available at 36 Enterprise Drive
Usually ready in 24 hours

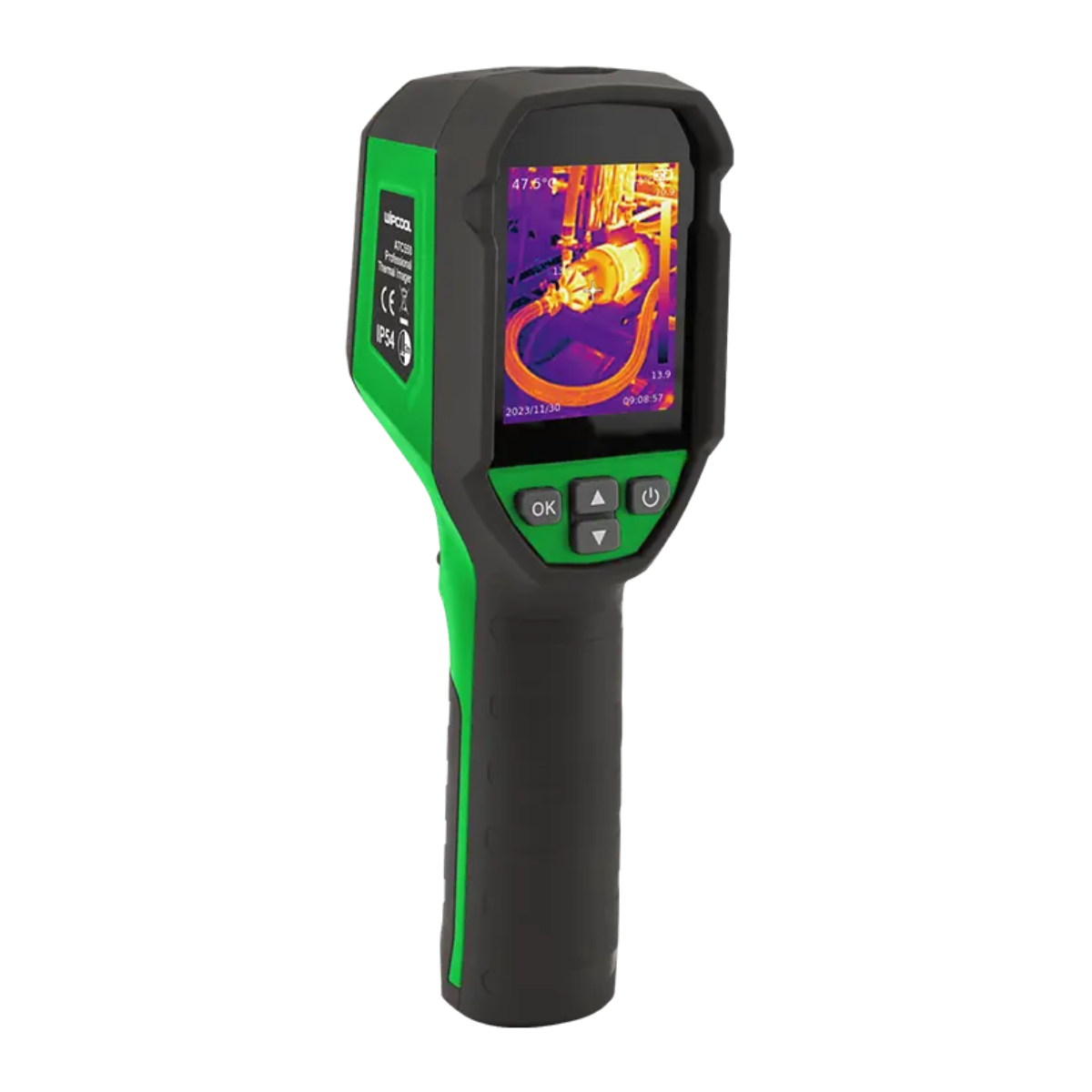

WIPCOOL Infrared Thermal Imaging Camera
ATC550
The ATC550 Infrared Thermal lmaging Camera is a handheld thermal imager used in different occasions integrated imaging with temperature measurement range -20 ℃ to 550 ℃. Thermal imaging map is clear, temperature distribution is accurate and reliable, high and low temperature automatic alarm to ensure safe operation.
The light-weight and portable design, multiple functions, center spot temperature measurement and auto high/low spot tracking, equipped with LED light, laser pointer, high/low alarm, IP54 protection grade and 2m drop-proof design, adapt to a variety of working environments.
Features:
- Fast and clear thermal imaging
- Automatic alarm for high and low temperature
- Type-C charging and data upgrading port
- 2 meter drop proof design
- 2.4" TFT
Specifications:
| Temperature Range |
-20℃-550℃ |
| Temperature measaccuracy |
±2℃/±2%(maximum value taken) |
| Temperature meas resolution |
0.1℃ |
| Display Resolution |
320x240px |
| IR Sensor Resolution |
160*120 |
| Response band |
8-14 μM |
| Thermal Sensitivity |
<50mK @25 ℃ |
| Frame rate |
≤25Hz |
| Distance to Spot Ratio |
emissivity 0.95(default)(0.1-0.99) |
| Field of View |
40°Hx 30°V |
| Storage |
Built-in 32GB EMMC |
| Battery type |
Built-in 3.7V 2600mAh(Type-C port) |
