EV Safety Kit 1 - CO Detector + Thermal Imager camera

VIC ROADS COMPLIANT

The HVAC Direct EV Safety Kit 1 combines carbon monoxide detection and thermal imaging in one professional safety and diagnostic package for electric vehicle servicing, automotive workshops and technical maintenance environments.

The Fieldpiece SCM4 provides fast, real-time carbon monoxide readings to help technicians identify potentially hazardous CO concentrations in ambient air. The Wipcool ATC550 Thermal Imaging Camera allows abnormal heat, electrical hotspots, overheating connections and temperature differences to be located without direct contact.

Together, these instruments provide technicians with a practical way to monitor the surrounding work area and inspect EV battery systems, electrical components, charging equipment and workshop machinery for potential hazards.

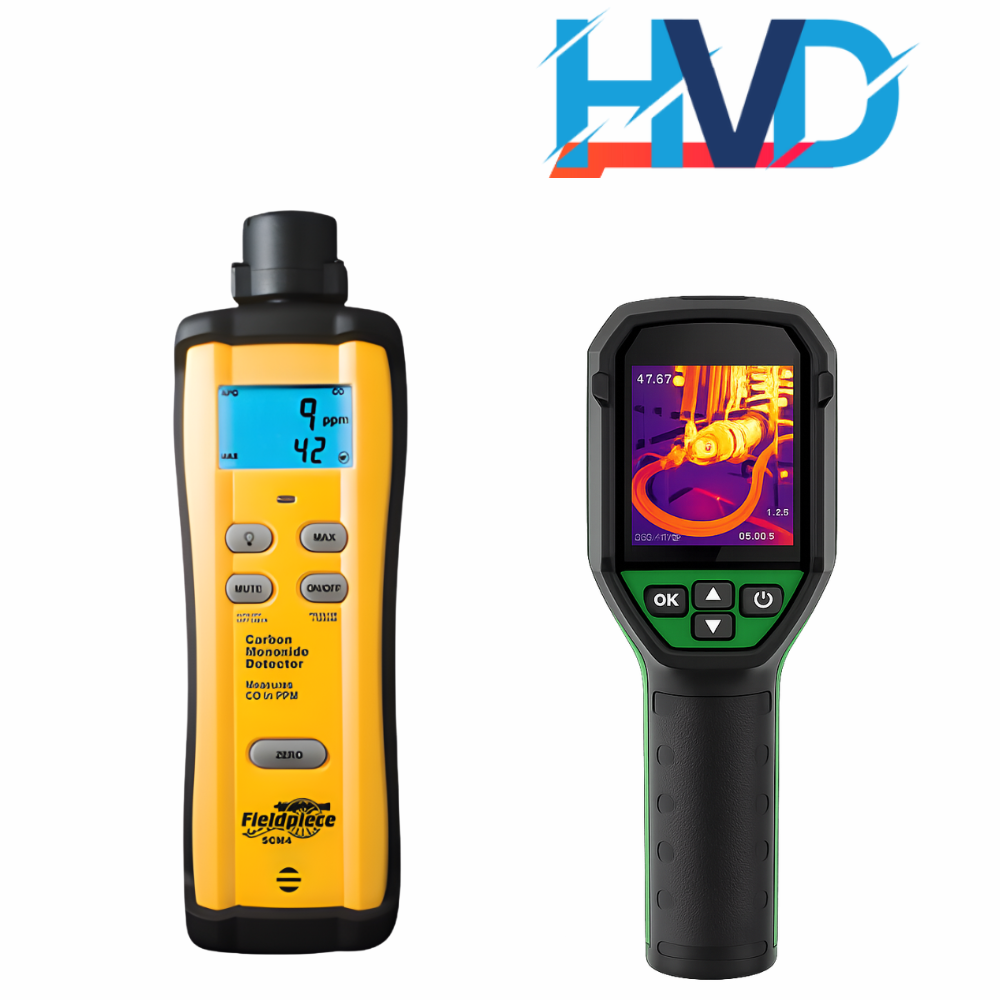

Set Includes

• 1 x Fieldpiece SCM4 Carbon Monoxide Detector

• 1 x 9V battery for the SCM4

• 1 x Wipcool ATC550 Infrared Thermal Imaging Camera

• 1 x Rechargeable 3.7V 2600mAh internal battery

• 1 x USB Type-C charging and data cable

• Operating instructions

Key Features

• Combines carbon monoxide monitoring and non-contact thermal imaging in one professional kit

• Suitable for EV workshops, automotive service centres and enclosed working environments

• Helps identify abnormal heat in EV batteries, electrical connections, charging equipment and mechanical components

• Provides real-time ambient carbon monoxide measurements in parts per million

• Fast-response electrochemical CO sensor supports walk-around testing

• Audio and visual CO alarms increase in frequency as the measured concentration rises

• MAX hold displays the highest recorded CO measurement

• Backlit dual display shows the current and maximum CO readings simultaneously

• Magnetic hanger supports hands-free CO monitoring

• Field-replaceable SCM4 sensor is supplied pre-calibrated

• ATC550 provides clear thermal imaging across a wide -20°C to 550°C temperature range

• Automatic high and low temperature tracking helps locate hot and cold areas quickly

• One-trigger image capture records thermal inspection results

• Built-in 32GB storage provides space for thermal images and inspection records

• IP54-rated ATC550 construction provides protection against dust and water splashes

• Two-metre drop-tested thermal camera design suits demanding workshop environments

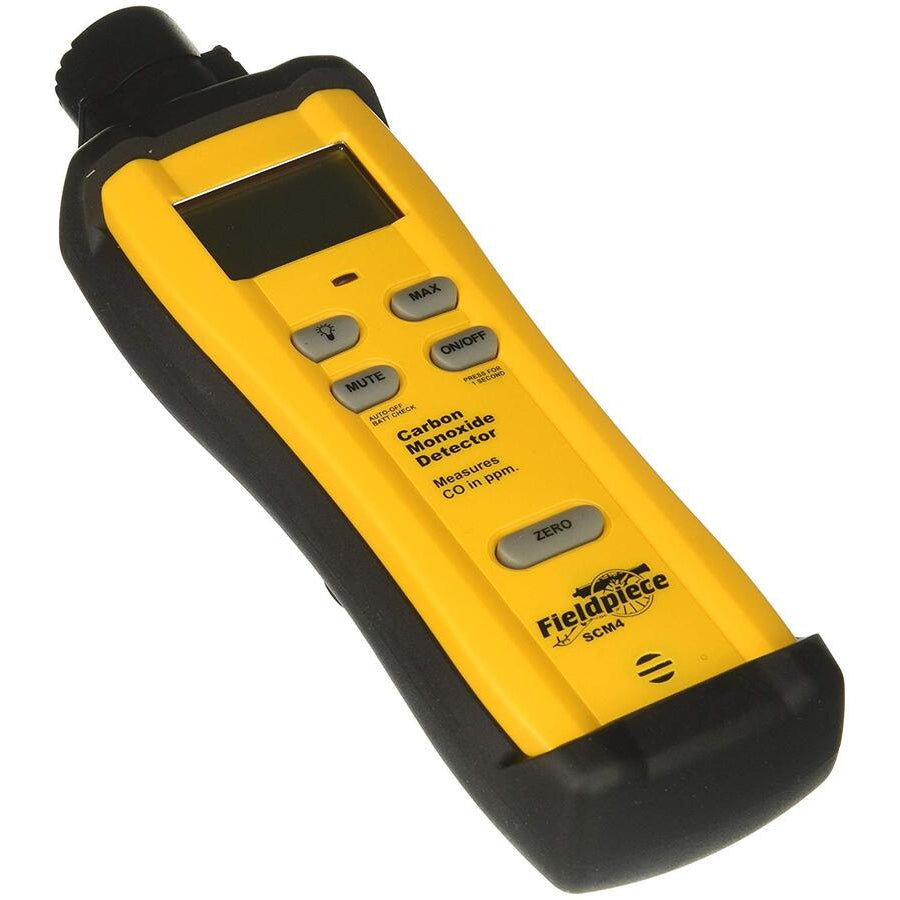

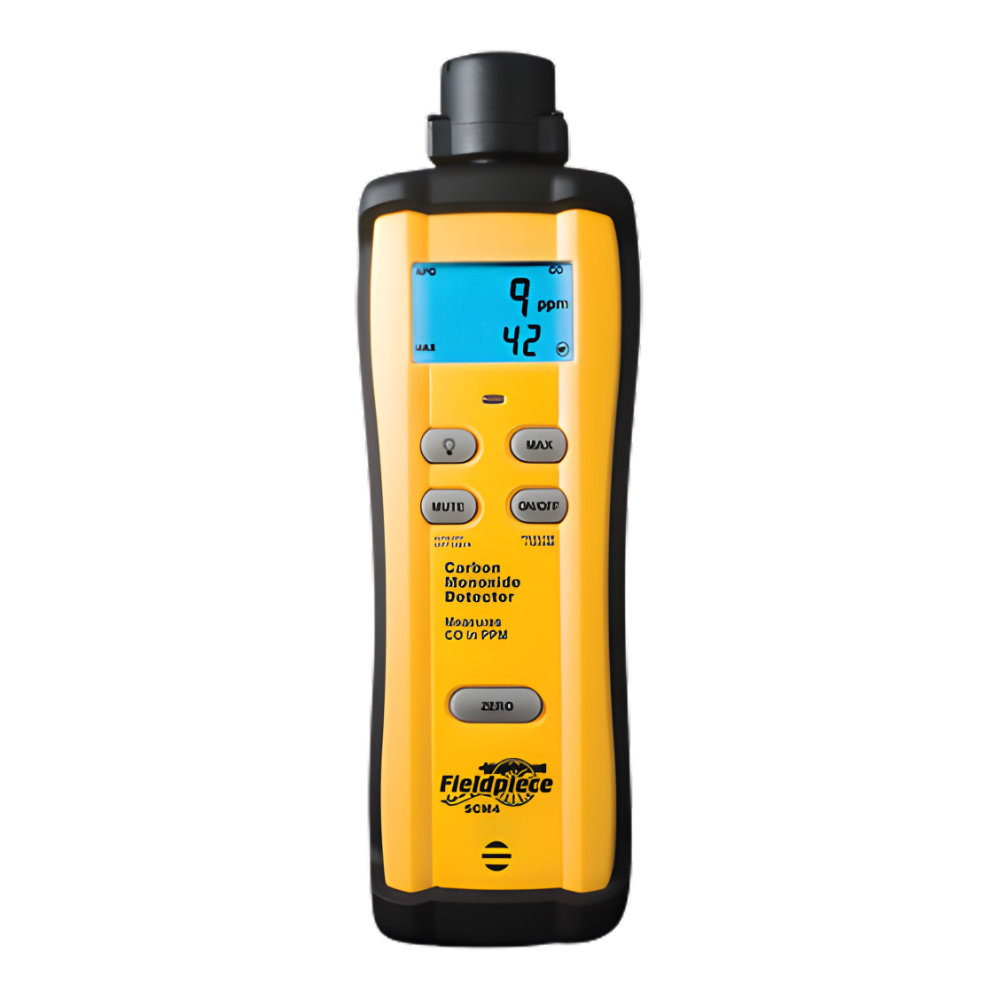

Fieldpiece SCM4 CO Detector Specifications

• Brand: Fieldpiece

• Model: SCM4

• Measurement: Carbon monoxide concentration in ambient air

• Sensor Type: CO-specific electrochemical sensor

• Standard Measurement Range: 0 to 1,000 ppm

• Short-Exposure Measurement Range: Up to 2,000 ppm for less than five minutes

• Accuracy from 0 to 15 ppm: ±5% of reading ±1 ppm after zeroing

• Accuracy from 16 to 35 ppm: ±5% of reading ±2 ppm after zeroing

• Accuracy from 36 to 1,000 ppm: ±5% of reading ±5 ppm after zeroing

• Sensor Calibration: Factory calibrated at 17 ppm and 200 ppm CO

• Display: Bright-blue backlit dual display

• Functions: Current reading, MAX hold, ZERO, battery indicator and alarm mute

• Alarms: Audible and visual

• Operating Temperature: 0°C to 50°C

• Operating Humidity: 15% to 90% RH, non-condensing

• Power Supply: 1 x 9V battery

• Typical Battery Life: Approximately 150 hours with an alkaline battery

• Auto Power Off: After approximately 15 minutes

• Mounting: Integrated magnetic hanger

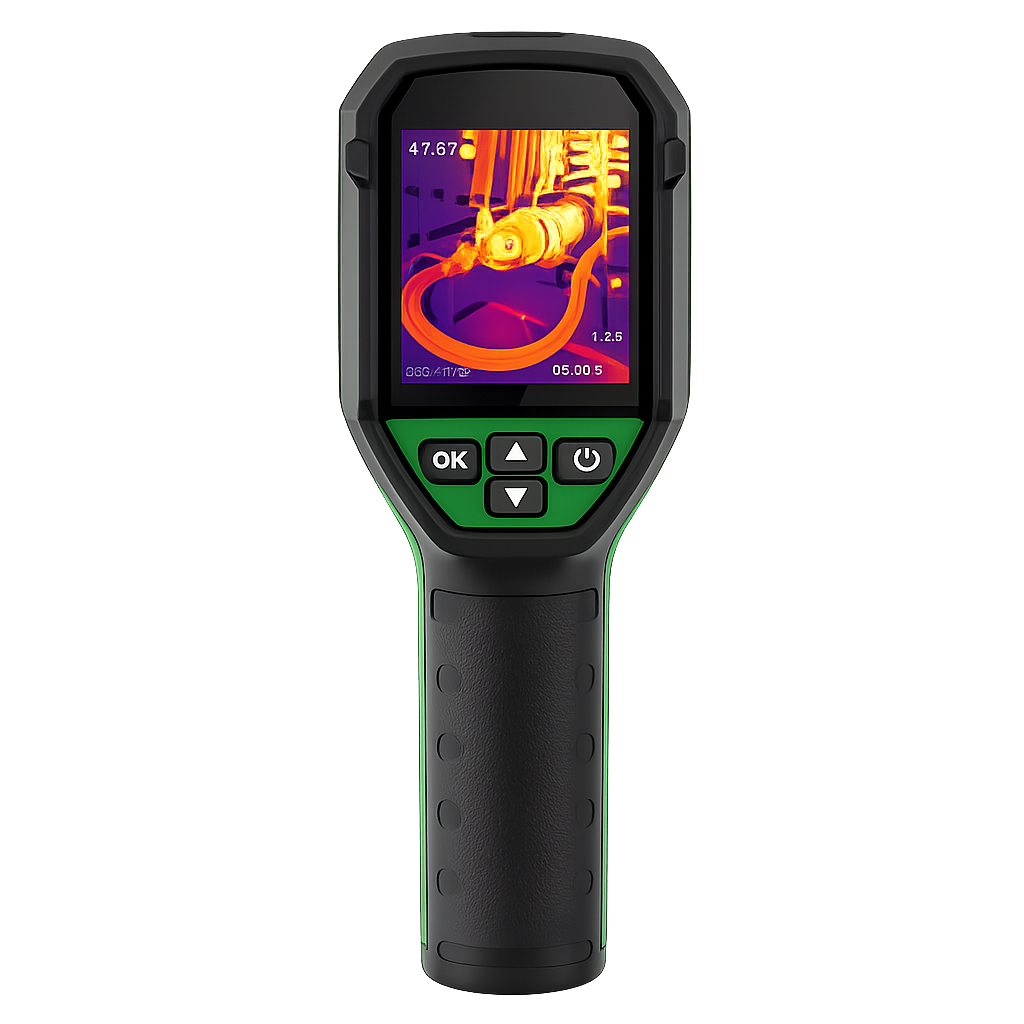

Wipcool ATC550 Thermal Imager Specifications

• Brand: Wipcool

• Model: ATC550

• Temperature Measurement Range: -20°C to 550°C

• Temperature Accuracy: ±2°C or ±2%, whichever is greater

• Temperature Resolution: 0.1°C

• Infrared Detector Resolution: 160 x 120 pixels

• Display Resolution: 320 x 240 pixels

• Display Size: 2.4-inch TFT

• Thermal Sensitivity: Less than 50 mK at 25°C

• Frame Rate: Up to 25 Hz

• Spectral Response: 8 to 14 µm

• Field of View: 40° horizontal x 30° vertical

• Emissivity: Adjustable from 0.10 to 0.99

• Default Emissivity Setting: 0.95

• Temperature Tracking: Centre point with automatic high and low temperature tracking

• Storage Capacity: Built-in 32GB EMMC storage

• Battery: Built-in 3.7V 2600mAh rechargeable battery

• Charging and Data Connection: USB Type-C

• Protection Rating: IP54

• Drop Protection: Tested to two metres

Ideal For

• Electric vehicle servicing and diagnostics

• Hybrid vehicle servicing and maintenance

• Automotive workshops and service centres

• EV battery temperature inspections

• Checking electrical connections for abnormal heat

• Inspecting EV charging equipment and charging stations

• Monitoring ambient carbon monoxide in enclosed work areas

• Workshop safety inspections

• HVAC and refrigeration technicians

• Electrical and industrial maintenance technicians

• Plant rooms, garages, service bays and underground work areas

EV Workshop CO Detection and Thermal Imaging Safety Kit

The HVAC Direct EV Safety Kit 1 provides two essential measurement technologies for modern vehicle and electrical servicing. The Fieldpiece SCM4 monitors ambient carbon monoxide levels in real time, while the Wipcool ATC550 displays temperature differences that may indicate battery faults, loose electrical connections, overheating components or other developing problems.

This professional kit is a practical addition to EV workshops, automotive service centres, mobile service vehicles and maintenance teams requiring reliable CO monitoring and thermal inspection equipment.
