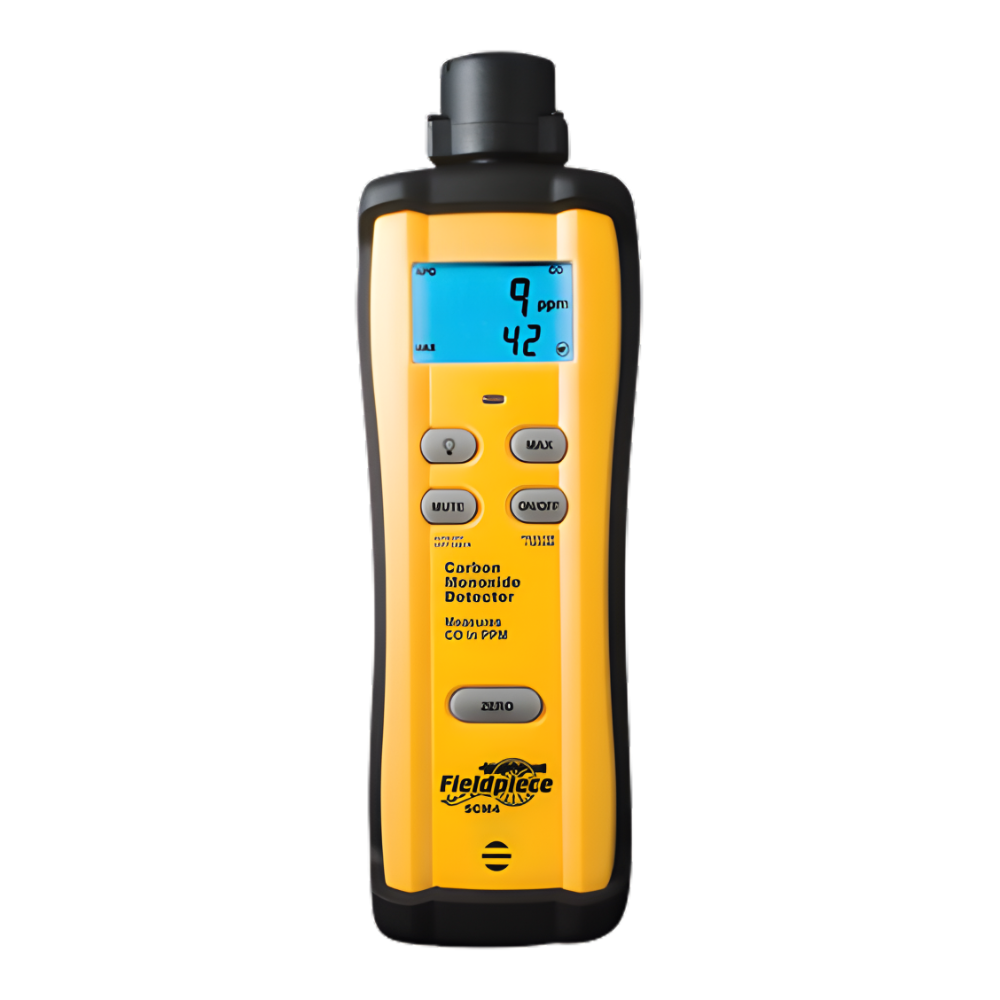

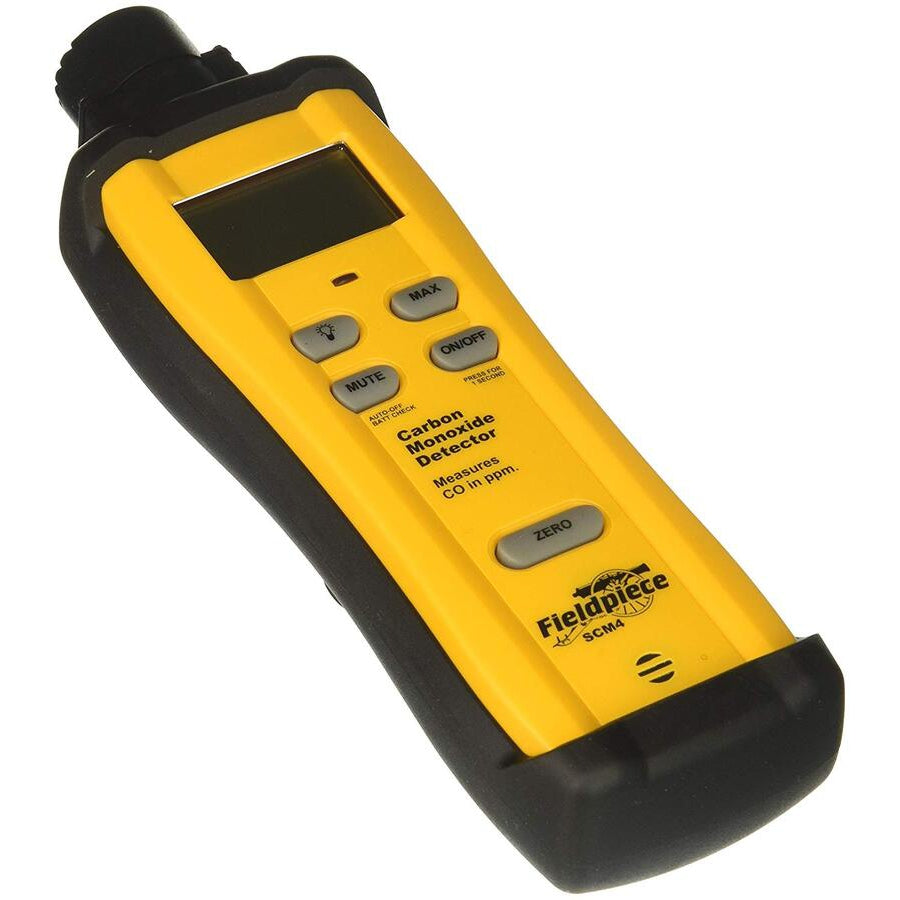

FIELDPIECE Carbon Monoxide Detector

FIELDPIECE Carbon Monoxide Detector

SCM4

VIC ROADS COMPLIANT

This FIELDPIECE SCM4, Carbon Monoxide Detector has a very fast reaction time, and measures CO in parts per million (ppm). Its electrochemical sensor is fast enough for walk-around tests.

Features and benefits include:

• Ideal for automotive workshops and underground carparks

• Easy to install

• Fast and Easy Sensor Replacement (Part # RCM4)*

• Comes pre-calibrated & certified

• Alarm rate increases as carbon monoxide concentration increases MAX hold to help you zero in on the source

• Auto Power Off (APO) to save battery life (easy to disable)

• Battery check with % of battery life left displayed

• Advanced three-pin sensor measures 0 to 1000 ppm CO

• Calibrate / Zero SCM4 to ambient quickly with the ZERO button

• Audio and visual alarms with mute function

• Bright-blue, backlit dual-display with MAX and real-time measurements displayed

• Magnetic hanger for hands-free operation

Specifications

• Sensor type: Electrochemical (specific to CO)
• Sensor calibration: Factory calibrated @ 17ppm CO and 200ppm CO
• Range: 0 to 1000 ppm; 0 to 2000 ppm (less than 5 minute exposure time)
• Initial accuracy: @ 73°F±9°F, <75% R.H.
  0-15ppm ±5% reading ±1 ppm after zeroing
  16-35ppm ±5% reading ±2 ppm after zeroing
  36-1000ppm ±5% reading ±5ppm after zeroing
• Long term drift: less than 5% per year (depending on use)
• CO air sample temperature range: 32 to 105°F
• Operating environment: 32 to 122°F (0 to 50°C); 15 to 90% R.H., non-condensing
• Storage environment: 32 to 68°F (0 to 20°C) at <80% R.H. with battery removed from meter
• Battery: 9V
• Battery life: 150 hours typical alkaline
• Auto power off: After 15 minutes
