BOSCH - Leak Seeker 1.0
Pickup available at 36 Enterprise Drive
Usually ready in 24 hours
This item is available for pre-order.
Estimated time remaining:

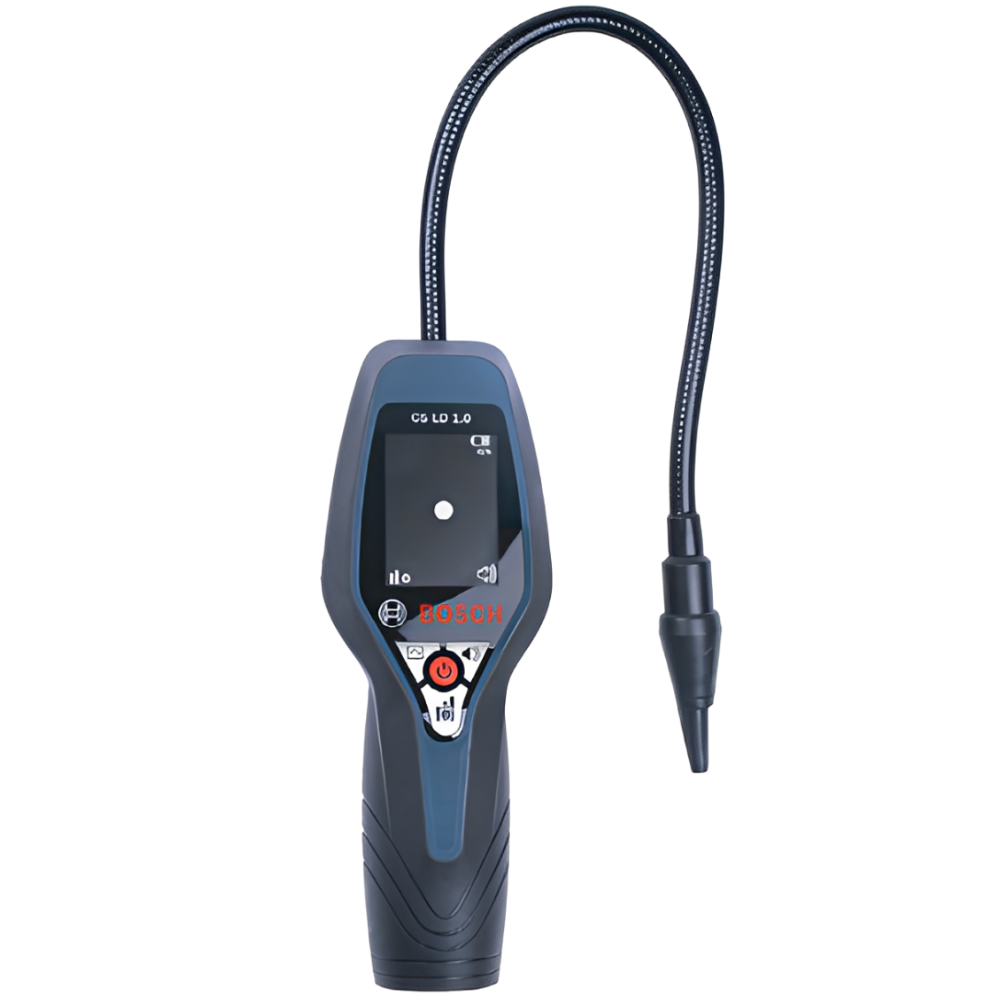

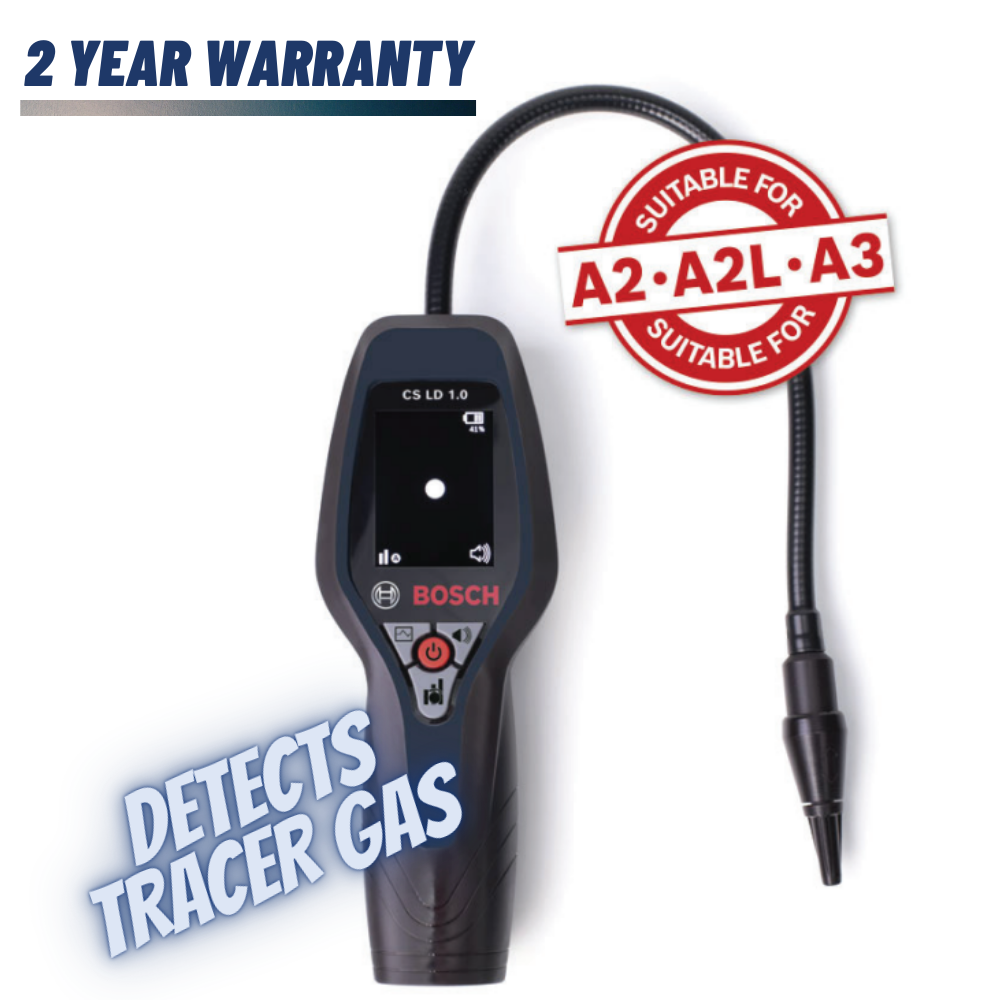

The BOSCH CS LD 1.0 is a versatile single-sensor leak detector designed to identify all common refrigerants with one tool. It is fully compatible with CFC, HCFC, HFC, HFO (including R32, R134a, R1234yf, R454A), hydrocarbons (R290, R600, R600a), tracer gas (95% N₂ / 5% H₂), and ammonia (NH₃).
A dedicated leak tracing mode displays raw signal output, enabling precise pinpointing of leaks. The intelligent monitoring system alerts the user to filter changes, sensor faults, or contamination, while an automatic purging function ensures consistent accuracy.
The large 61 mm high-contrast graphic LCD remains clear in both bright and low-light environments. With rapid warm-up in under 30 seconds, intuitive operation, and both automatic and manual reset options, the CS LD 1.0 is engineered for efficiency and ease of use.
Powered by a rechargeable battery delivering up to 8 hours per charge, the unit supports mains and USB vehicle charging. Its rugged IP51-rated housing with an anti-slip handle ensures durability in demanding conditions.
Backed by a 2-year warranty, the CS LD 1.0 delivers professional-grade performance for reliable leak detection.
Key Features
-
Detects halogenated refrigerants (CFC, HCFC, HFC, HFO), hydrocarbons, tracer gas (95% N₂ / 5% H₂), ammonia, butane, and propane.
-
Meets or exceeds EN14624 performance standards.
-
Ultimate sensitivity: < 1 g/year.
-
Long-life electronic sensor (> 5 years).
-
Large 61 mm backlit LCD for clear visibility.
-
Audible alarm with mute function and visual leak size indicator.
-
Leak tracing mode for accurate pinpointing.
-
Durable rubber keypad with tactile feedback.
-
Ergonomic design with TPU overmold for ambidextrous operation.
-

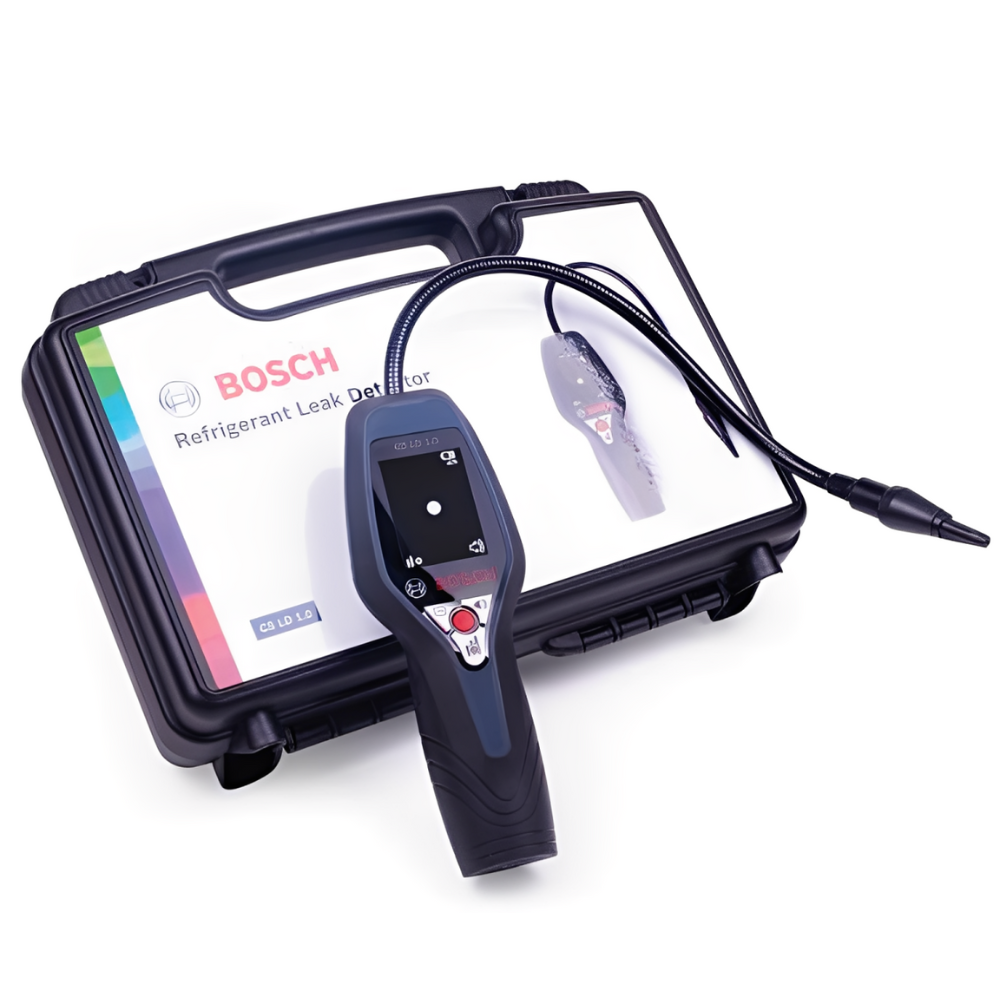

Supplied with carrying case, spare filters, and charger.
-
2-year warranty included.
| Property | CS LD 1.0 |
|---|---|
| Sensor Life | > 5 years |
| Power Supply | 5V DC 1.0 A charger |
| Battery | Li-Ion 3350 mAh Battery |
| Operating Time (full charge) | Approx. 8 hours continuous |
| Battery Charge Time | Approx. 3 hours |
| Battery Charging Temperature | 0°C to 45°C |
| Warm-up Time | Normally 20 - 30 seconds, 45 seconds Max. |
| Operating Environment | Indoor/Outdoor Use -20°C to 50°C and 0 to 95% RH, non-condensing Note: Use in temperatures below 0°C should be limited. Extended warm-up time is recommended before use in low temperature environments. |
| Storage Environment | -20°C to 65°C and 0 to 95% RH, non-condensing |
| LCD | 61 mm; 240 x 320 Pixels full color display |
| Warranty | 2 years (includes battery), Sensor warranty of 30 days |
| IP Rating | IP51 |
| Altitude | <3000 m |
| Pollution Degree | 4 |
| Dimensions (excluding probe) | 216 x 83 x 51 mm |
| Overall Probe Length | 413 mm |
| Weight | 452 g |
