Wera Tool-Check Modular Set Imperial 1 Ratchet, Socket, Bit & L-Key Set, 50 Piece – 049025

049025

The Wera Tool-Check Modular Set Imperial 1 is a versatile 50-piece fastening and precision tool set designed for professional installation, servicing, assembly and maintenance work.

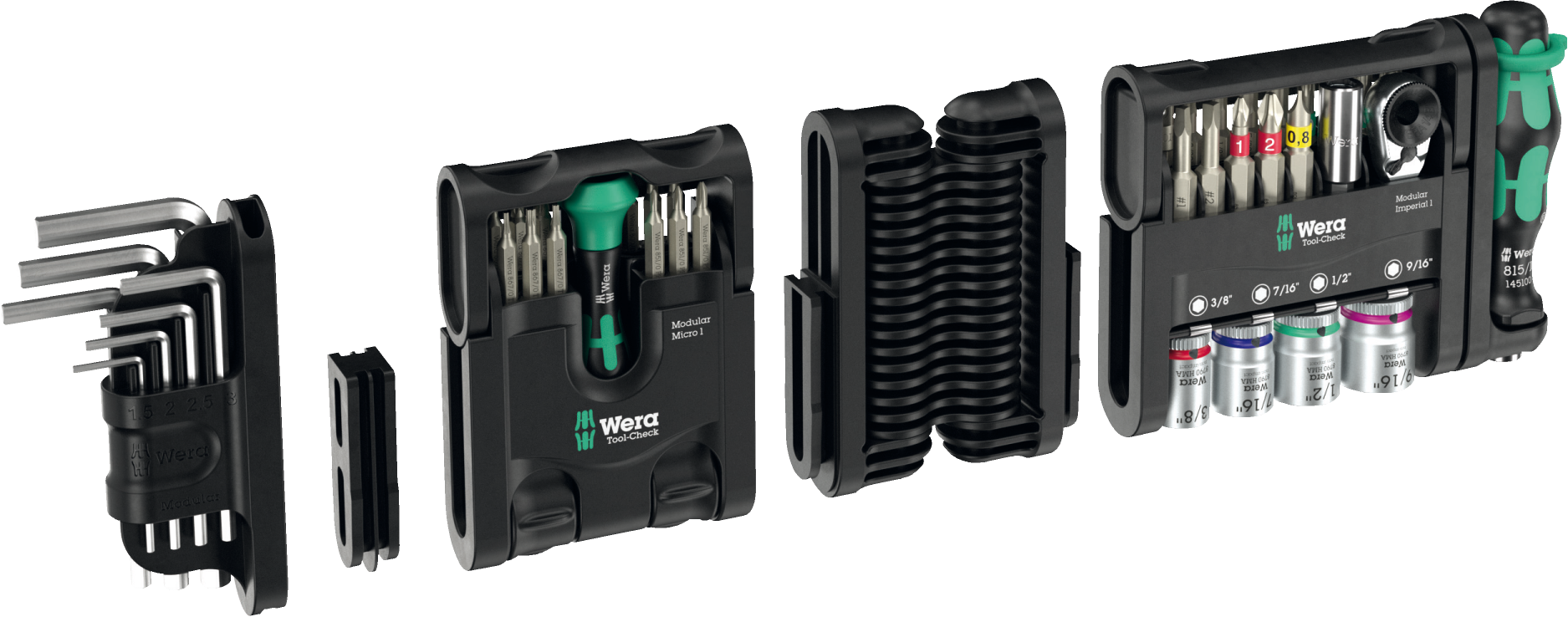

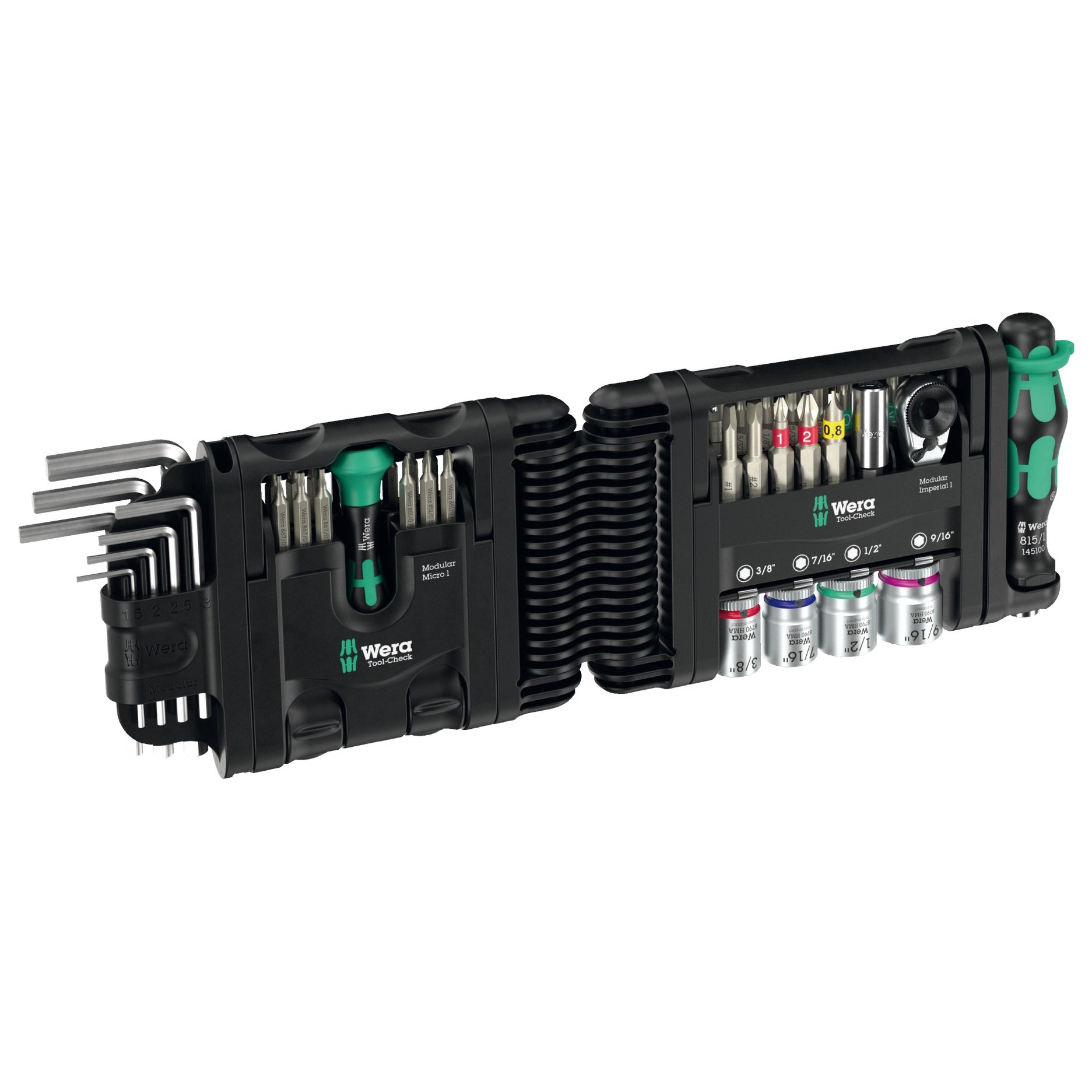

The set combines three compact Tool-Check modules containing a bit ratchet, standard and precision screwdriver handles, screwdriver bits, imperial sockets and metric Hex-Plus L-keys. A rigid adapter and flexible hinge allow the modules to be connected, rearranged, expanded or folded together for compact transportation.

With imperial 1/4-inch fastening tools for general maintenance, 4 mm Micro bits for precision components and metric Hex-Plus L-keys, the set provides broad coverage for mechanical, electrical, HVAC, electronics and workshop applications.

Set Includes

Tool-Check Modular Imperial 1 – 21 Pieces

• 1 x 815/1 Kraftform bit-holding screwdriver – 1/4 inch x 92 mm

• 1 x 8011 Zyklop Mini 4 bit ratchet – 1/4 inch x 50 mm

• 1 x 899/4/1 magnetic universal bit holder – 1/4 inch x 50 mm

• 1 x 870/1 socket adaptor with friction ball – 1/4-inch hex to 1/4-inch square x 25 mm

• 1 x Phillips BiTorsion bit – PH1 x 50 mm

• 1 x Phillips BiTorsion bit – PH2 x 50 mm

• 1 x TORX® BiTorsion bit – TX10 x 25 mm

• 1 x TORX® BiTorsion bit – TX15 x 25 mm

• 1 x TORX® BiTorsion bit – TX20 x 25 mm

• 1 x TORX® BiTorsion bit – TX25 x 25 mm

• 1 x Slotted BiTorsion bit – 0.8 x 5.5 x 50 mm

• 1 x Imperial hexagonal bit – 3/32 inch x 25 mm

• 1 x Imperial hexagonal bit – 1/8 inch x 25 mm

• 1 x Imperial hexagonal bit – 5/32 inch x 25 mm

• 1 x Imperial hexagonal bit – 3/16 inch x 25 mm

• 1 x Square-Plus bit – #1 x 50 mm

• 1 x Square-Plus bit – #2 x 50 mm

• 1 x 8790 HMA Zyklop socket – 3/8 inch x 23 mm

• 1 x 8790 HMA Zyklop socket – 7/16 inch x 23 mm

• 1 x 8790 HMA Zyklop socket – 1/2 inch x 23 mm

• 1 x 8790 HMA Zyklop socket – 9/16 inch x 23 mm

Tool-Check Modular Micro 1 – 21 Pieces

• 1 x 1014 Kraftform Micro bit-holding precision screwdriver – 4 mm x 80 mm

• 1 x Phillips Micro bit – PH000 x 30 mm

• 1 x Phillips Micro bit – PH00 x 30 mm

• 1 x Phillips Micro bit – PH0 x 30 mm, modified to JCIS 0

• 1 x Phillips Micro bit – PH1 x 30 mm

• 1 x Pozidriv Micro bit – PZ0 x 30 mm

• 1 x Pozidriv Micro bit – PZ1 x 30 mm

• 1 x TORX® Micro bit – TX3 x 30 mm

• 1 x TORX® Micro bit – TX4 x 30 mm

• 1 x TORX® Micro bit – TX5 x 30 mm

• 1 x TORX® Micro bit – TX6 x 30 mm

• 1 x TORX® Micro bit – TX8 x 30 mm

• 1 x TORX® Micro bit – TX10 x 30 mm

• 1 x Hex-Plus Micro bit – 0.9 mm x 30 mm

• 1 x Hex-Plus Micro bit – 1.3 mm x 30 mm

• 1 x Hex-Plus Micro bit – 1.5 mm x 30 mm

• 1 x Hex-Plus Micro bit – 2 mm x 30 mm

• 1 x Hex-Plus Micro bit – 2.5 mm x 30 mm

• 1 x Slotted Micro bit – 0.3 x 1.5 x 30 mm

• 1 x Slotted Micro bit – 0.4 x 2.5 x 30 mm

• 1 x Slotted Micro bit – 0.5 x 3.0 x 30 mm

Tool-Check Modular L-Keys Hex-Plus 1 – 7 Pieces

• 1 x Chrome-plated metric L-key – 1.5 mm x 45 mm

• 1 x Chrome-plated Hex-Plus L-key – 2 mm x 50 mm

• 1 x Chrome-plated Hex-Plus L-key – 2.5 mm x 56 mm

• 1 x Chrome-plated Hex-Plus L-key – 3 mm x 63 mm

• 1 x Chrome-plated Hex-Plus L-key – 4 mm x 70 mm

• 1 x Chrome-plated Hex-Plus L-key – 5 mm x 80 mm

• 1 x Chrome-plated Hex-Plus L-key – 6 mm x 90 mm

Modular Connectors

• 1 x 9549 rigid Tool-Check Modular adapter – 10.5 x 47 x 16.5 mm

• 1 x 9550 flexible Tool-Check Modular hinge – 67.5 x 91 x 22 mm

Key Features

• Comprehensive modular set for imperial fastening, machine-operated screwdriving and precision mechanical work

• Three Tool-Check modules can be connected, rearranged, exchanged or expanded to suit different applications

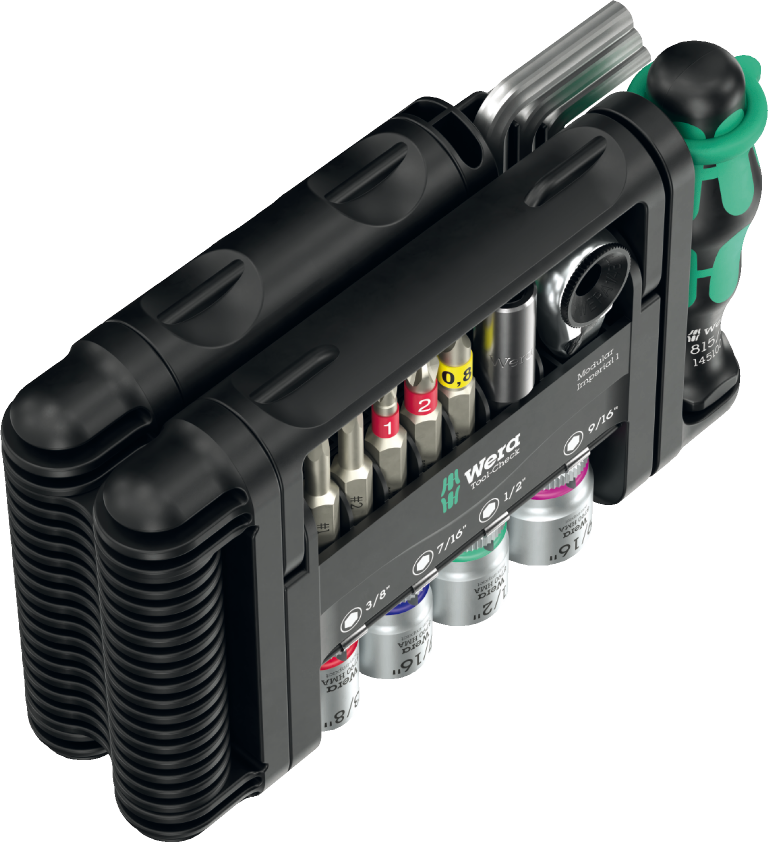

• Flexible hinge allows connected modules to fold together for compact storage and transportation

• Rigid adapter securely connects compatible Tool-Check Modular components

• Zyklop Mini bit ratchet provides a short 6-degree return angle for working in confined spaces

• Drop-forged full-steel ratchet construction provides strength in a highly compact design

• Kraftform bit-holding screwdriver provides comfortable manual operation with 1/4-inch hex bits

• Magnetic universal holder securely retains 1/4-inch bits and is suitable for machine-operated screwdriving

• Included socket adaptor allows the bit ratchet to operate 1/4-inch drive sockets

• Includes four imperial sockets covering common sizes from 3/8 inch to 9/16 inch

• BiTorsion bits help absorb peak loads during demanding screwdriving applications

• Take It Easy Tool Finder uses colour coding and size markings for quick tool identification

• Kraftform Micro precision handle features a rotating cap for fast and controlled fine screwdriving

• Fast-turning, power and precision zones support efficient handling during delicate adjustment work

• Micro bits cover small Phillips, Pozidriv, TORX®, Hex-Plus and slotted fasteners

• Hex-Plus geometry provides a larger contact surface to help reduce rounding of hexagonal screw heads

• Chrome-plated metric L-keys provide high corrosion protection and long service life

• Laser-engraved L-key size markings provide durable and easy identification

• Compact modules keep the tools securely organised while occupying minimal tool-bag space

Specifications

• Brand: Wera

• Model: Tool-Check Modular Set Imperial 1

• Supplier Code: 049025

• Wera Part Number: 05049025001

• Manufacturer-Stated Set Size: 50 Pieces

• Tool Modules Included: Tool-Check Modular Imperial 1, Tool-Check Modular Micro 1 and Tool-Check Modular L-Keys Hex-Plus 1

• Standard Bit Drive: 1/4-inch external hexagon

• Precision Bit Drive: 4 mm external hexagon

• Socket Drive: 1/4 inch through the included adaptor

• Standard Bit Profiles: Phillips, TORX®, slotted, imperial hexagonal and Square-Plus

• Precision Bit Profiles: Phillips, Pozidriv, TORX®, slotted and Hex-Plus

• Imperial Socket Sizes: 3/8, 7/16, 1/2 and 9/16 inch

• Metric L-Key Sizes: 1.5, 2, 2.5, 3, 4, 5 and 6 mm

• Ratchet Return Angle: 6 degrees

• Modular Connections: Rigid adapter and flexible folding hinge

• Dimensions: 102 x 155 x 48 mm

• Weight: 607 g

• EAN: 4013288234773

• Country of Origin: Czech Republic

Ideal For

• HVAC and refrigeration technicians

• Electricians and electrical contractors

• American-manufactured equipment using imperial fasteners

• Electronics and precision equipment servicing

• Mechanical installation and maintenance

• Control cabinets, circuit boards and electrical enclosures

• Appliance, machinery and equipment repair

• Automotive, motorcycle and bicycle maintenance

• Working with both imperial and miniature fasteners

• Mobile technicians requiring a compact and expandable tool system

• Workshop, trade and industrial maintenance applications

Compact Imperial Ratchet, Socket, Bit and Precision Tool Set

The Wera Tool-Check Modular Set Imperial 1 combines imperial 1/4-inch fastening tools, precision Micro bits and metric Hex-Plus L-keys in one configurable storage system. Its compact Zyklop ratchet, ergonomic screwdriver handles, extensive bit range, imperial sockets and modular folding connectors make it an ideal portable tool set for HVAC technicians, refrigeration mechanics, electricians, electronics technicians and maintenance professionals.
