Wera 8100 SA VDE 1 Zyklop Insulated 1/4" Drive Metric Ratchet Set, 22 Piece – 004967

004967

The Wera 8100 SA VDE 1 Zyklop Ratchet Set is a professional 22-piece insulated socket and bit-socket set designed for electrical installations, switchboard servicing and maintenance work.

The set combines an extra-slim 1/4-inch Zyklop VDE ratchet with eleven metric sockets, five TORX® bit sockets, four Hex-Plus bit sockets and a 150 mm insulated extension. Its comprehensive selection covers many of the common socket and internal-drive connections found in electrical building installations and industrial equipment.

Each insulated tool is individually tested at 10,000 volts in accordance with IEC 60900 for safe professional working at voltages up to 1,000 volts.

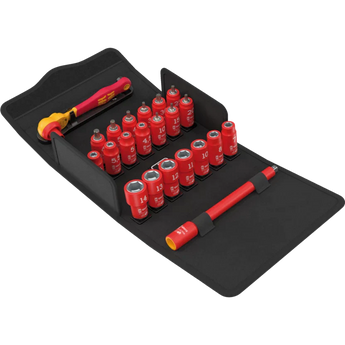

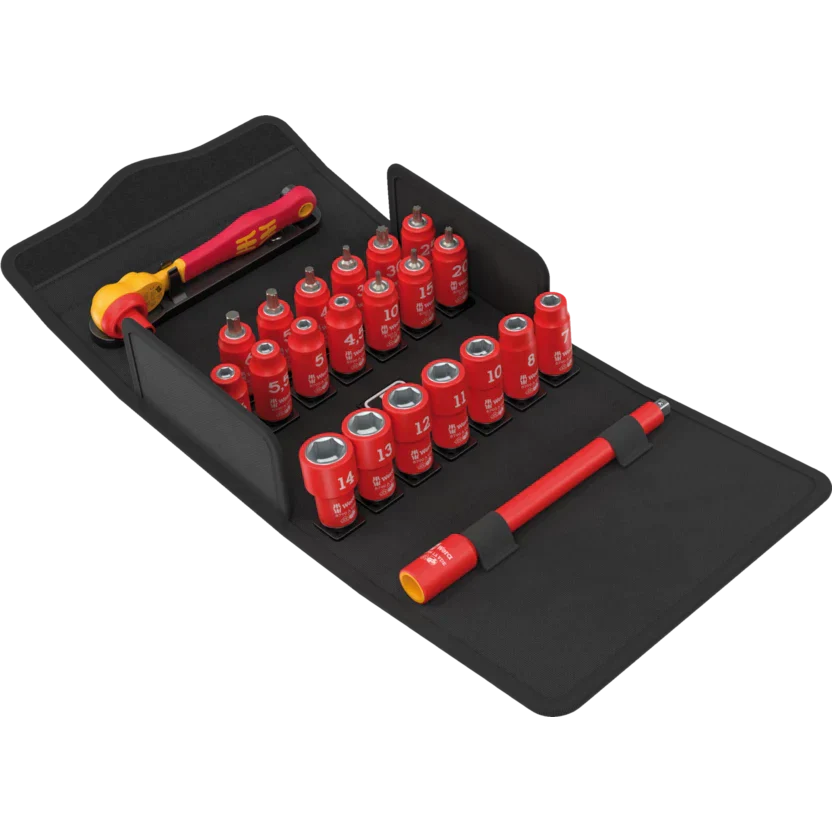

Set Includes

• 1 x 8007 A VDE insulated Zyklop ratchet with reversing lever – 1/4-inch drive x 144 mm

• 1 x 8790 A VDE insulated socket – 4.5 x 41 mm

• 1 x 8790 A VDE insulated socket – 5 x 41 mm

• 1 x 8790 A VDE insulated socket – 5.5 x 41 mm

• 1 x 8790 A VDE insulated socket – 6 x 41 mm

• 1 x 8790 A VDE insulated socket – 7 x 41 mm

• 1 x 8790 A VDE insulated socket – 8 x 41 mm

• 1 x 8790 A VDE insulated socket – 10 x 41 mm

• 1 x 8790 A VDE insulated socket – 11 x 41 mm

• 1 x 8790 A VDE insulated socket – 12 x 41 mm

• 1 x 8790 A VDE insulated socket – 13 x 41 mm

• 1 x 8790 A VDE insulated socket – 14 x 41 mm

• 1 x 8767 A VDE HF insulated TORX® bit socket with holding function – TX10 x 46 mm

• 1 x 8767 A VDE HF insulated TORX® bit socket with holding function – TX15 x 46 mm

• 1 x 8767 A VDE HF insulated TORX® bit socket with holding function – TX20 x 46 mm

• 1 x 8767 A VDE HF insulated TORX® bit socket with holding function – TX25 x 46 mm

• 1 x 8767 A VDE HF insulated TORX® bit socket with holding function – TX30 x 46 mm

• 1 x 8740 A VDE HF insulated Hex-Plus bit socket with holding function – 3 x 46 mm

• 1 x 8740 A VDE HF insulated Hex-Plus bit socket with holding function – 4 x 46 mm

• 1 x 8740 A VDE HF insulated Hex-Plus bit socket with holding function – 5 x 46 mm

• 1 x 8740 A VDE HF insulated Hex-Plus bit socket with holding function – 6 x 46 mm

• 1 x 8794 LA insulated Zyklop VDE extension – 1/4-inch drive x 150 mm

• 1 x Robust compact textile storage box with twist-to-unlock system

• 1 x Hook-and-loop fastening strip – 120 x 50 mm

Key Features

• Professional 22-piece insulated ratchet and socket set for electrical installation and servicing work

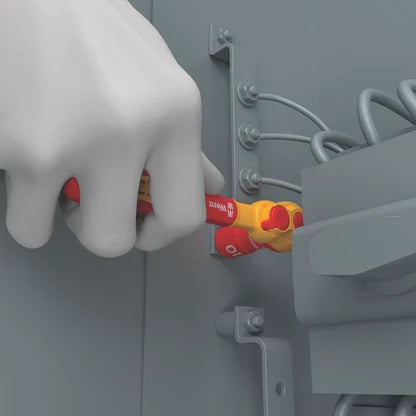

• Extra-slim 1/4-inch Zyklop ratchet provides improved access in confined electrical cabinets and equipment

• Fine-tooth ratchet mechanism features 80 teeth and a small 4.5-degree return angle

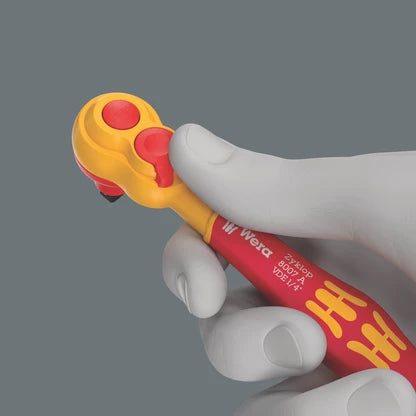

• Reversing lever allows convenient switching between clockwise and counterclockwise operation

• Integrated ball lock securely retains sockets and accessories during use

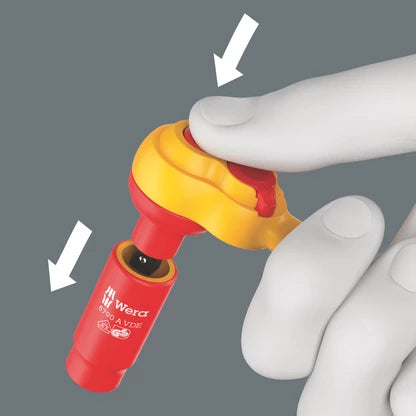

• Quick-release button allows sockets and extensions to be changed easily

• Eleven metric sockets cover common sizes from 4.5 mm to 14 mm

• TORX® HF bit sockets feature a holding function to securely retain compatible screws on the tool

• Hex-Plus bit sockets provide a larger contact surface inside the screw head to help reduce damaging notch effects

• Hex bit sockets incorporate a holding function for secure retention of compatible hex socket screws

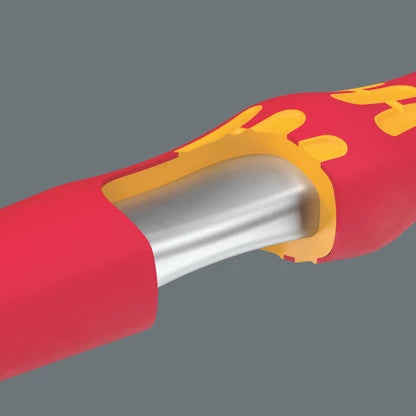

• Two-component insulation includes a yellow safety layer beneath the outer red insulation

• Damage to the red insulation exposes the yellow inner layer, providing a visible warning that the tool should be inspected

• Each insulated tool is individually tested at 10,000 volts in accordance with IEC 60900

• Suitable for safe professional working at voltages up to 1,000 volts

• 150 mm insulated extension provides additional reach for recessed nuts and fasteners

• Compact textile box provides organised, space-saving storage for mobile technicians

• Twist-to-unlock storage system keeps tools securely retained while allowing easy removal

• Robust textile construction helps protect nearby surfaces from scratching and damage

• Storage box is compatible with the Wera 2go tool transport system

Specifications

• Brand: Wera

• Model: 8100 SA VDE 1

• Supplier Code: 004967

• Wera Part Number: 05004967001

• Number of Pieces: 22

• Drive Size: 1/4 inch

• Ratchet Type: Insulated Zyklop ratchet with reversing lever

• Ratchet Length: 144 mm

• Ratchet Teeth: 80

• Ratchet Return Angle: 4.5 degrees

• Metric Socket Sizes: 4.5, 5, 5.5, 6, 7, 8, 10, 11, 12, 13 and 14 mm

• Socket Length: 41 mm

• TORX® Bit Socket Sizes: TX10, TX15, TX20, TX25 and TX30

• Hex Bit Socket Sizes: 3, 4, 5 and 6 mm

• Bit Socket Length: 46 mm

• Extension Length: 150 mm

• Approved Working Voltage: Up to 1,000 V

• Individual Test Voltage: 10,000 V

• Testing Standard: IEC 60900

• Insulation: Two-component red and yellow safety insulation

• Storage: Compact textile box with twist-to-unlock system

• Dimensions: 200 x 135 x 65 mm

• Weight: 1,045 g

• EAN: 4013288236975

• Country of Origin: Czech Republic

Ideal For

• Electricians and electrical contractors

• HVAC and refrigeration technicians

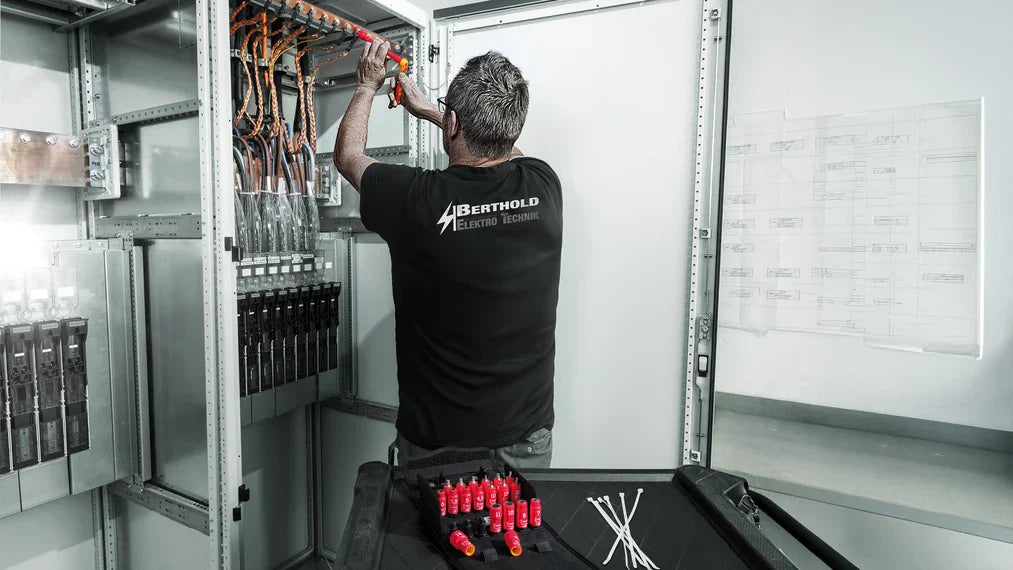

• Electrical switchboard installation and servicing

• Control cabinets and electrical distribution equipment

• Commercial and industrial electrical maintenance

• Plant-room equipment installation and servicing

• Working with insulated sockets in confined spaces

• Servicing equipment with TORX® and internal hex fasteners

• Mobile technicians requiring a compact VDE socket set

Professional Insulated Zyklop Ratchet and Socket Set

The Wera 8100 SA VDE 1 Zyklop Ratchet Set combines an extra-slim 80-tooth ratchet with a comprehensive selection of insulated metric sockets, TORX® bit sockets, Hex-Plus bit sockets and an extension. Its small 4.5-degree return angle, secure fastener-holding functions and individually tested VDE insulation make it a versatile solution for electricians, refrigeration mechanics, HVAC technicians and industrial maintenance professionals.
