Wera 8100 SA 14 Zyklop Comfort Ratchet Set with Reversing Lever 1/4" Drive Metric, 28 Piece – 005541

005541

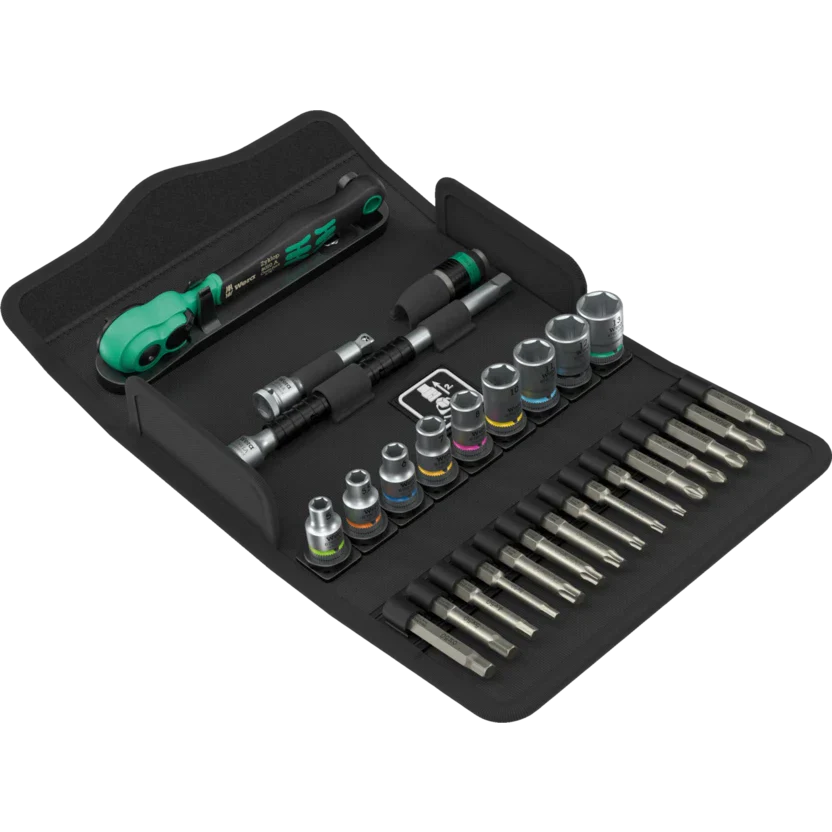

The Wera 8100 SA 14 Zyklop Comfort Ratchet Set is a comprehensive 28-piece metric socket and bit set designed for professional installation, servicing and maintenance work.

The set combines an extremely slim 1/4-inch Zyklop Comfort ratchet with nine metric sockets, a long extension, a wobble extension, a bit adaptor and fifteen 50 mm screwdriver bits covering Phillips, Pozidriv, TORX® and hexagonal profiles.

Its fine 80-tooth ratchet mechanism provides a short 4.5-degree return angle, making it suitable for working in confined spaces where only limited handle movement is available.

Set Includes

• 1 x 8010 A Zyklop Comfort ratchet with reversing lever – 1/4-inch drive x 144 mm

• 1 x 8790 HMA Zyklop socket – 5 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 5.5 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 6 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 7 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 8 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 10 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 11 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 12 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 13 mm x 23 mm

• 1 x 8794 LA Zyklop extension with free-turning sleeve – 1/4-inch drive x 150 mm

• 1 x 8794 A Zyklop wobble extension – 1/4-inch drive x 56 mm

• 1 x 8784 A1 Zyklop bit adaptor – 1/4-inch square drive to 1/4-inch hex x 37 mm

• 1 x Phillips bit – PH1 x 50 mm

• 1 x Phillips bit – PH2 x 50 mm

• 1 x Phillips bit – PH3 x 50 mm

• 1 x Pozidriv bit – PZ2 x 50 mm

• 1 x Pozidriv bit – PZ3 x 50 mm

• 1 x TORX® bit – TX10 x 50 mm

• 1 x TORX® bit – TX15 x 50 mm

• 1 x TORX® bit – TX20 x 50 mm

• 1 x TORX® bit – TX25 x 50 mm

• 1 x TORX® bit – TX27 x 50 mm

• 1 x TORX® bit – TX30 x 50 mm

• 1 x Hexagonal bit – 3 mm x 50 mm

• 1 x Hexagonal bit – 4 mm x 50 mm

• 1 x Hexagonal bit – 5 mm x 50 mm

• 1 x Hexagonal bit – 6 mm x 50 mm

• 1 x Compact textile storage box with twist-to-unlock system

• 1 x Hook-and-loop fastening strip – 120 x 50 mm

Key Features

• Comprehensive 28-piece 1/4-inch ratchet, socket and screwdriver bit set

• Extremely slim ratchet design provides improved access in confined working areas

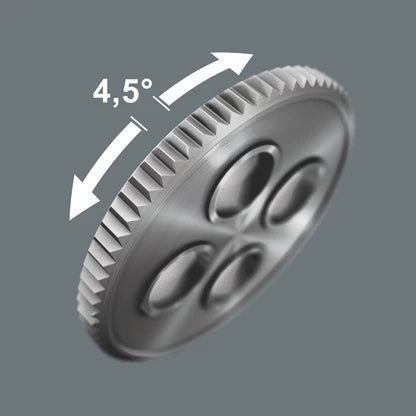

• Fine-tooth ratchet mechanism features 80 teeth and a short 4.5-degree return angle

• Reversing lever allows convenient switching between clockwise and counterclockwise operation

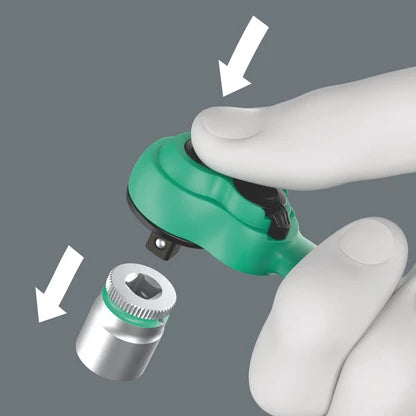

• Push-button release allows sockets and accessories to be changed quickly

• Integrated ball lock securely retains sockets and extensions during use

• Comfortable plastic sleeve provides a secure grip and helps protect surrounding surfaces from damage

• Nine metric sockets cover common sizes from 5 mm to 13 mm

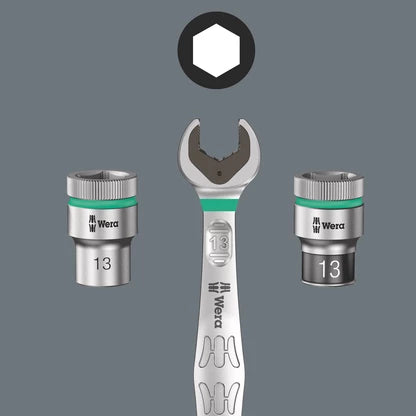

• Take It Easy Tool Finder uses colour coding and laser-engraved size markings for quick socket identification

• 150 mm extension includes a free-turning sleeve for fast rotation of nuts and fasteners

• 56 mm wobble extension provides a pivoting angle of up to 15 degrees in all directions

• 1/4-inch bit adaptor allows the ratchet to operate standard 1/4-inch hex screwdriver bits

• Includes fifteen tough 50 mm bits for Phillips, Pozidriv, TORX® and internal hex fasteners

• Torsion-zone bits help absorb peak loads during demanding screwdriving applications

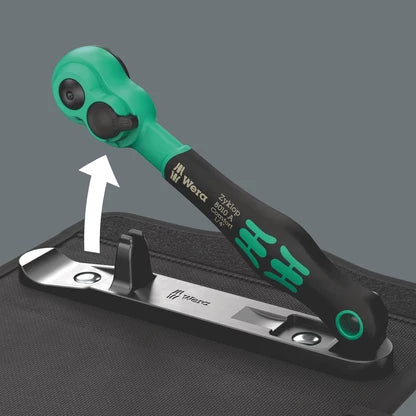

• Compact textile box uses a twist-to-unlock system for secure storage and easy tool removal

• Robust textile construction helps protect nearby surfaces from scratching and damage

• Storage box is compatible with the Wera 2go tool transport system

Specifications

• Brand: Wera

• Model: 8100 SA 14 Zyklop Comfort

• Supplier Code: 005541

• Wera Part Number: 05005541001

• Number of Pieces: 28

• Drive Size: 1/4 inch

• Ratchet Type: Zyklop Comfort ratchet with reversing lever

• Ratchet Length: 144 mm

• Ratchet Teeth: 80

• Ratchet Return Angle: 4.5 degrees

• Number of Metric Sockets: 9

• Metric Socket Sizes: 5, 5.5, 6, 7, 8, 10, 11, 12 and 13 mm

• Socket Length: 23 mm

• Long Extension Length: 150 mm

• Wobble Extension Length: 56 mm

• Wobble Extension Pivot Angle: Up to 15 degrees in all directions

• Bit Adaptor Length: 37 mm

• Bit Adaptor Connection: 1/4-inch square drive to 1/4-inch hex

• Number of Screwdriver Bits: 15

• Phillips Bit Sizes: PH1, PH2 and PH3

• Pozidriv Bit Sizes: PZ2 and PZ3

• TORX® Bit Sizes: TX10, TX15, TX20, TX25, TX27 and TX30

• Hexagonal Bit Sizes: 3, 4, 5 and 6 mm

• Bit Length: 50 mm

• Storage: Compact textile box with twist-to-unlock system

• Dimensions: 200 x 115 x 58 mm

• Weight: 823 g

• EAN: 4013288236821

• Country of Origin: Czech Republic

Ideal For

• HVAC and refrigeration technicians

• Electricians and electrical contractors

• Mechanical installation and equipment servicing

• Automotive and machinery maintenance

• Control cabinets and plant-room equipment

• Working with metric nuts, bolts and screws in confined spaces

• Servicing equipment with Phillips, Pozidriv, TORX® and internal hex fasteners

• Mobile technicians requiring a compact socket and bit set

• Workshop, trade and industrial maintenance applications

Compact 1/4-Inch Metric Ratchet, Socket and Bit Set

The Wera 8100 SA 14 Zyklop Comfort Ratchet Set combines an extra-slim 80-tooth ratchet with nine metric sockets, two practical extensions and fifteen professional screwdriver bits. Its small 4.5-degree return angle, secure socket locking, versatile drive profiles and compact textile box make it an ideal portable tool set for HVAC technicians, refrigeration mechanics, electricians and maintenance professionals.
