VALUE UD Series Vacuum Pump - 12 m³/h

$4,719.13 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
UD12
$4,719.13 AUD (Inc GST)

Pickup available at 36 Enterprise Drive

Usually ready in 24 hours

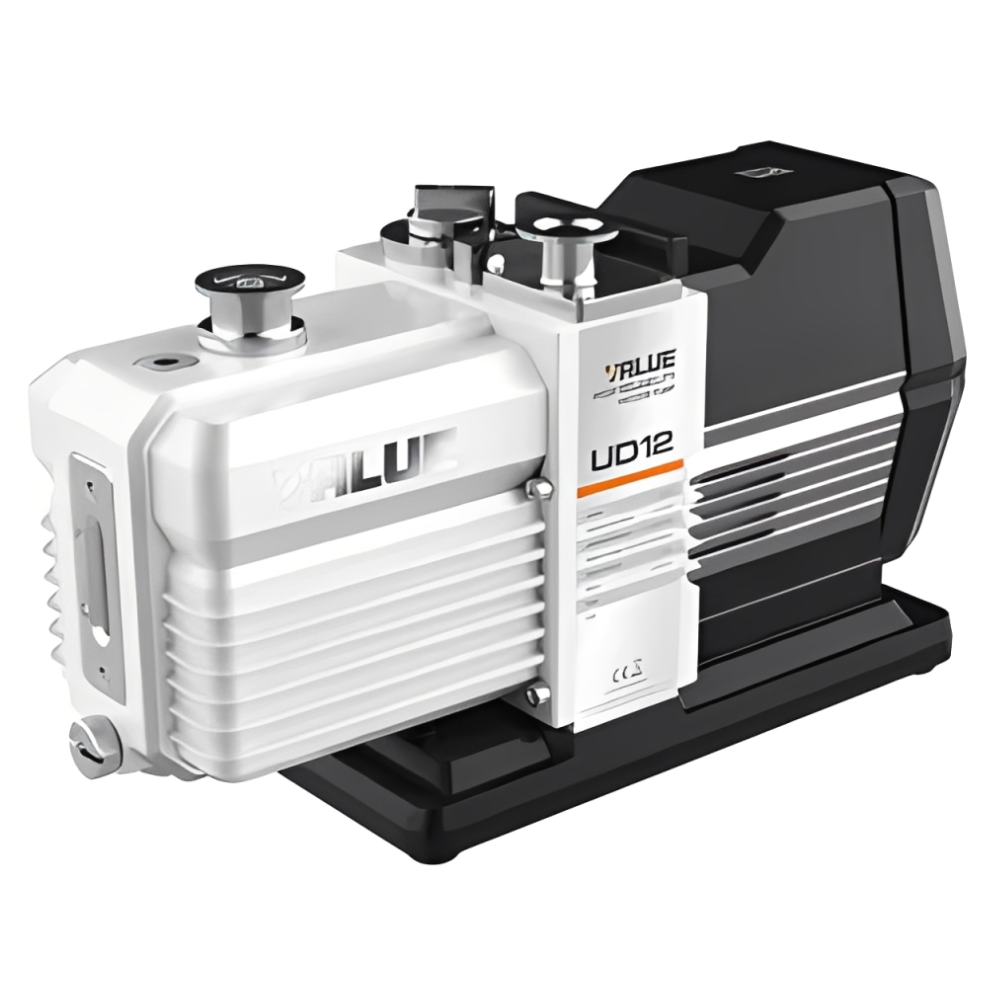

VALUE UD Series Vacuum Pump – UD12

The VALUE UD12 Two-Stage DC Brushless Rotary Vane Vacuum Pump has been engineered for demanding industrial and laboratory environments where high performance, reliability, and resistance to harsh operating conditions are essential.

Powered by an advanced DC brushless motor, the UD12 delivers ultra-low noise operation combined with high efficiency and long service life. Designed for more demanding applications, it incorporates anti-corrosion treated components to ensure durability when handling high moisture levels, water vapour, and corrosive gases.

Utilising magnetic drive and shielding technology, the UD12 achieves true static sealing, eliminating the oil leakage issues commonly associated with traditional dynamic sealing systems and ensuring consistent, reliable vacuum performance.

To maintain stable operation, the pump is equipped with a forced lubrication gear pump and an automatic anti-oil return structure, delivering a cleaner, quieter, and more controlled vacuum environment.

Key Features:

  • Advanced DC brushless motor for quiet, energy-efficient performance

  • Anti-corrosion treated components for harsh and corrosive environments

  • Magnetic drive & static sealing to minimise oil leakage

  • Designed for high water vapour and corrosive gas applications

  • Forced lubrication gear pump for consistent oil circulation

  • Automatic anti-oil return system for cleaner operation

  • Built for high reliability, low maintenance, and long service life

Specifications:

Specification UD12
Pump Type Two-Stage Rotary Vane
Motor Type DC Brushless Motor
Peak Pumping Speed 10 m³/h
Ultimate Vacuum (without gas ballast) 0.5 Pa
Ultimate Vacuum (with gas ballast) 3 Pa
Input Power Supply 200–240 V
Rated Power 0.55 kW
Input Frequency 50/60 Hz
Inlet/Exhaust Port KF25
Oil Capacity 0.75 L
Dimensions (L × W × H) 414 × 152 × 235 mm
Weight 15 kg
Ambient Temperature 5–40°C
Noise Level / 50 Hz ≤ 52 dB
Sealing Method Magnetic Drive (Static Sealing)
Corrosion Protection Anti-corrosion treated components
Lubrication System Forced lubrication gear pump
Anti Oil Return Automatic anti-oil return structure
Application Corrosive gases, high moisture, industrial & laboratory use
WARRANTY

12 months from date of purchase.*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
