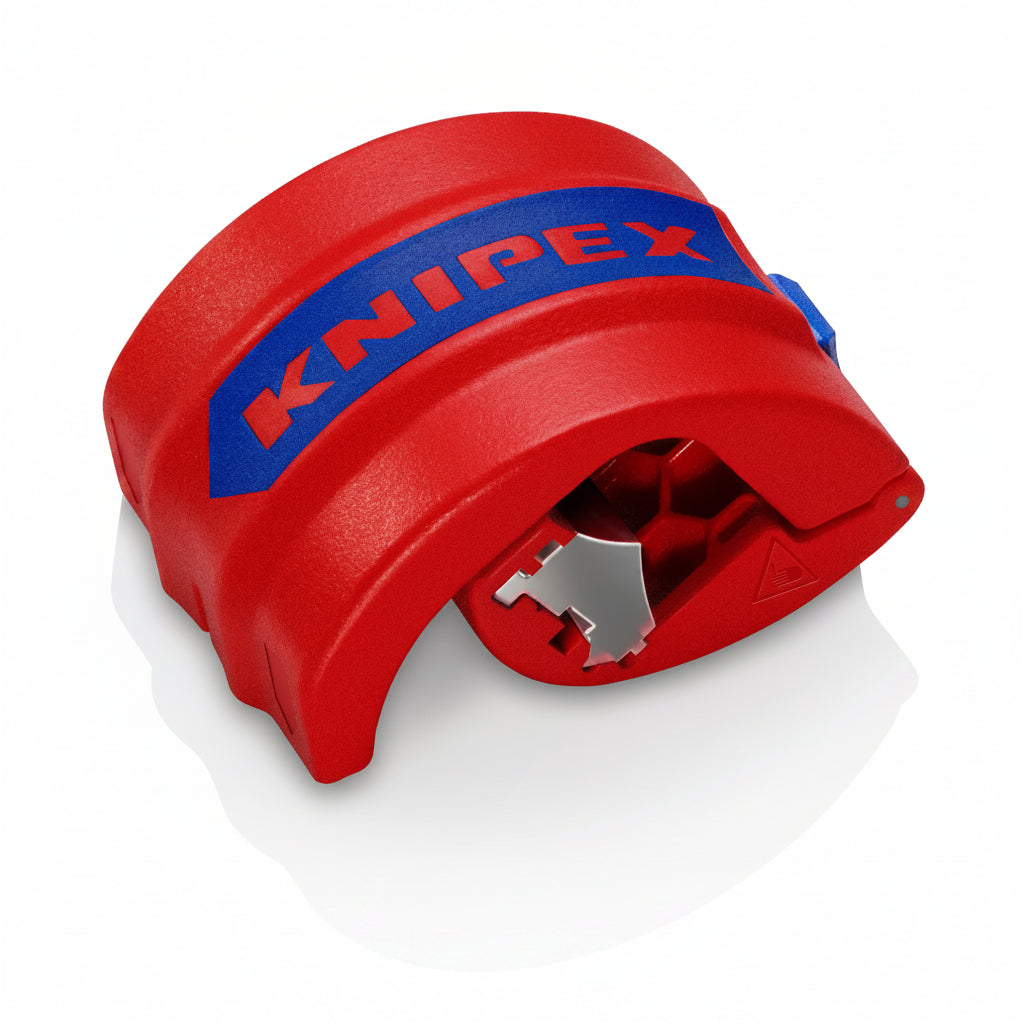

KNIPEX 90 22 10 BiX® Cutter for Plastic Pipes & Sealing Sleeves

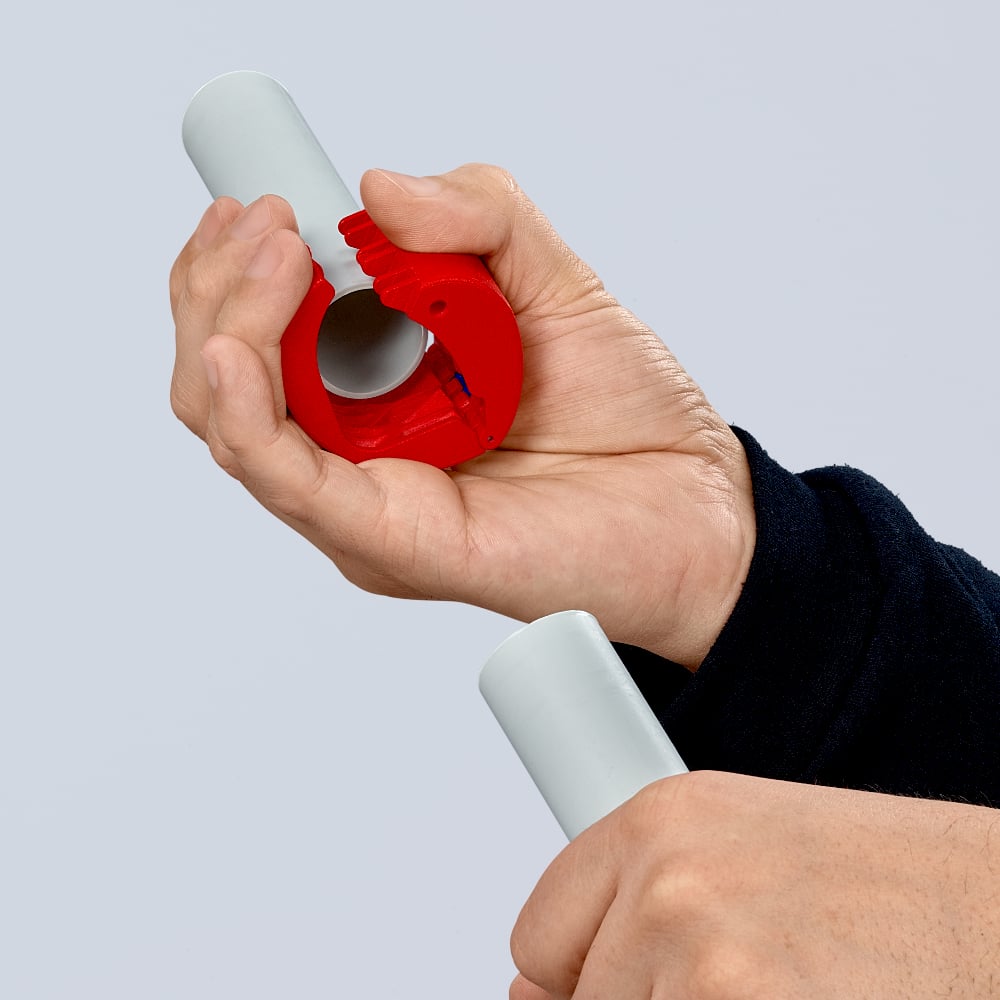

The KNIPEX 90 22 10 BiX® Cutter is designed for electricians, plumbers, HVAC technicians, refrigeration technicians and maintenance professionals who need a compact tool for cutting plastic pipes and sealing sleeves cleanly. Small enough to fit in the hand or tool pouch, the BiX® is ideal for working in tight spaces where a standard pipe cutter may be awkward to use.

Designed for unreinforced plastic pipes, HT drain pipes, electrical conduits, soft plastic pipes, foam-core pipes and sealing sleeves, the KNIPEX BiX® cuts quickly and cleanly without producing shavings. The cut section remains inside the tool, helping reduce mess and making it practical for installation and service work in finished areas.

The rotatable knife block allows the blade position to be changed depending on the application. With the blade in the centre, the tool cuts plastic pipes to length. With the blade positioned outside, it cuts sealing sleeves close to the wall, approximately 2–3mm from the surface. Two spare blades are integrated into the tool, and the locking mechanism keeps the cutter closed during transport.

Set Includes

• 1 x KNIPEX BiX® cutter for plastic pipes and sealing sleeves

• 2 x Spare blades integrated in the tool

Key Features

• Compact BiX® cutter for plastic pipes and sealing sleeves

• Cuts unreinforced plastic pipes from Ø 20mm to Ø 56mm

• Cuts soft plastic pipes and foam-core pipes from Ø 20mm to Ø 56mm

• Cuts sealing sleeves from Ø 20mm to Ø 56mm

• Suitable for HT plastic drain pipes and electrical plastic conduit

• Cuts pipes quickly, cleanly and without shavings

• Cut-off pipe section remains inside the tool after cutting

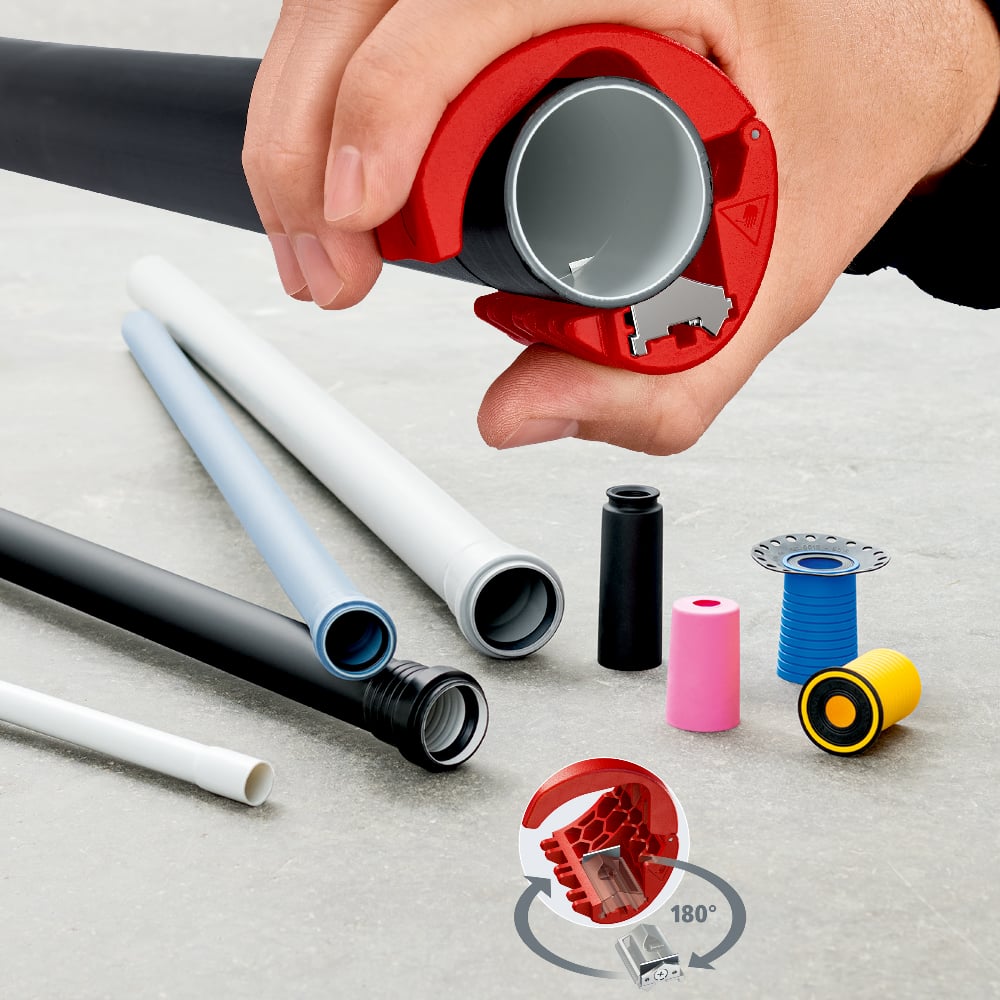

• Rotatable knife block changes blade position for pipe or sleeve cutting

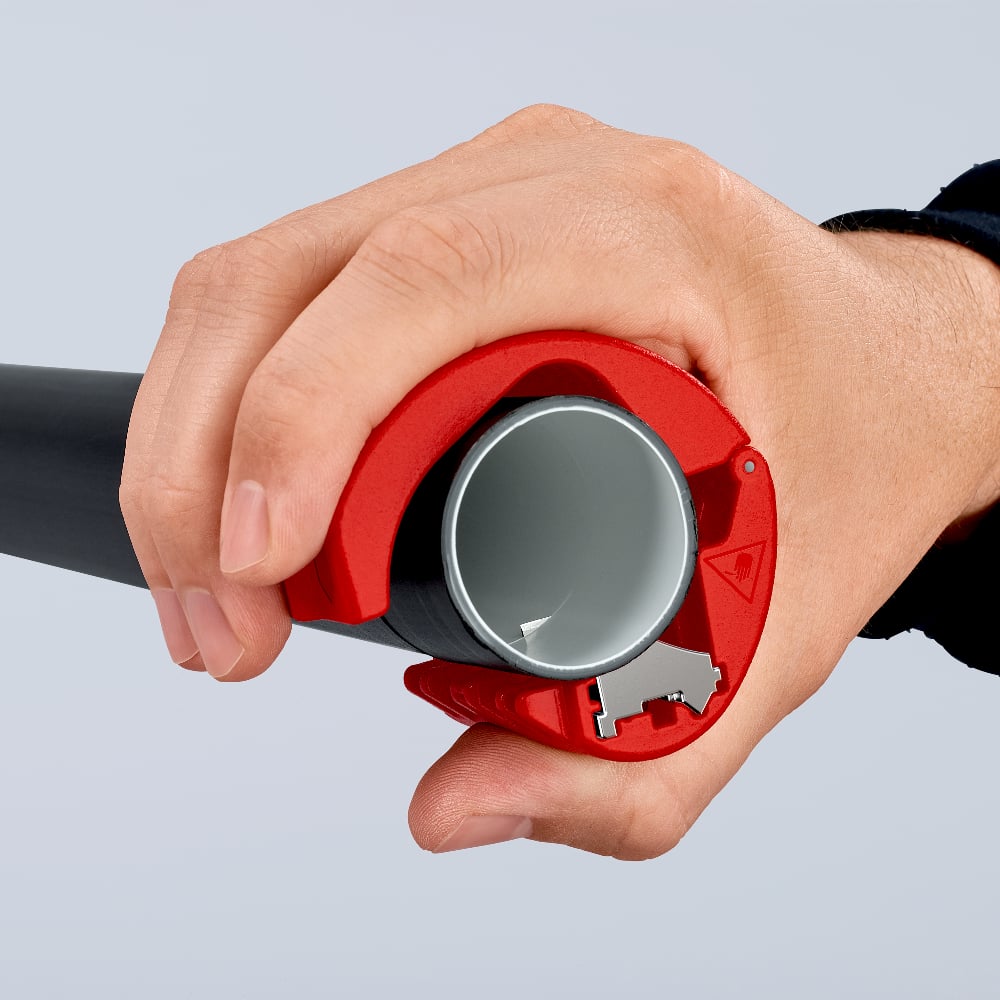

• Centre blade position is used for cutting plastic pipes

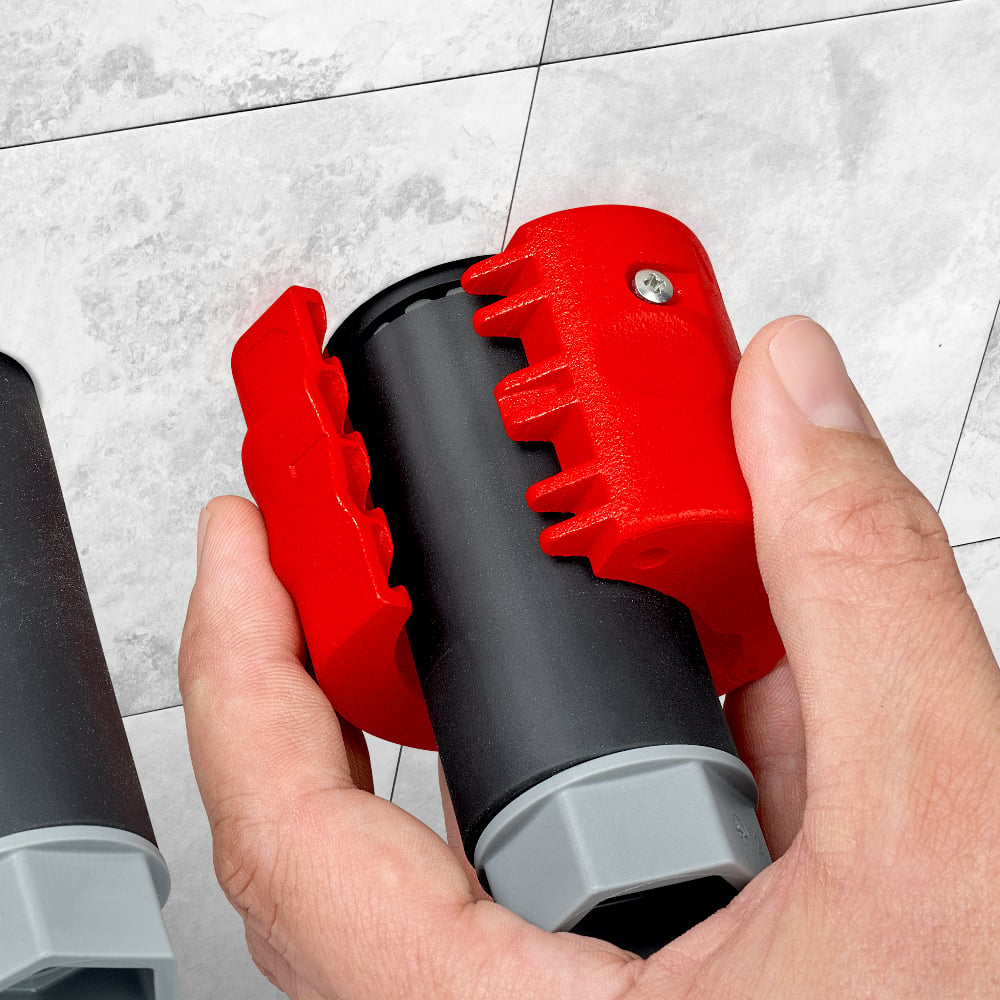

• Outside blade position is used for cutting sealing sleeves close to the wall

• Cuts sealing sleeves approximately 2–3mm from the wall

• Integrated markings help position the cut accurately

• Locking mechanism keeps the tool closed for safer transport

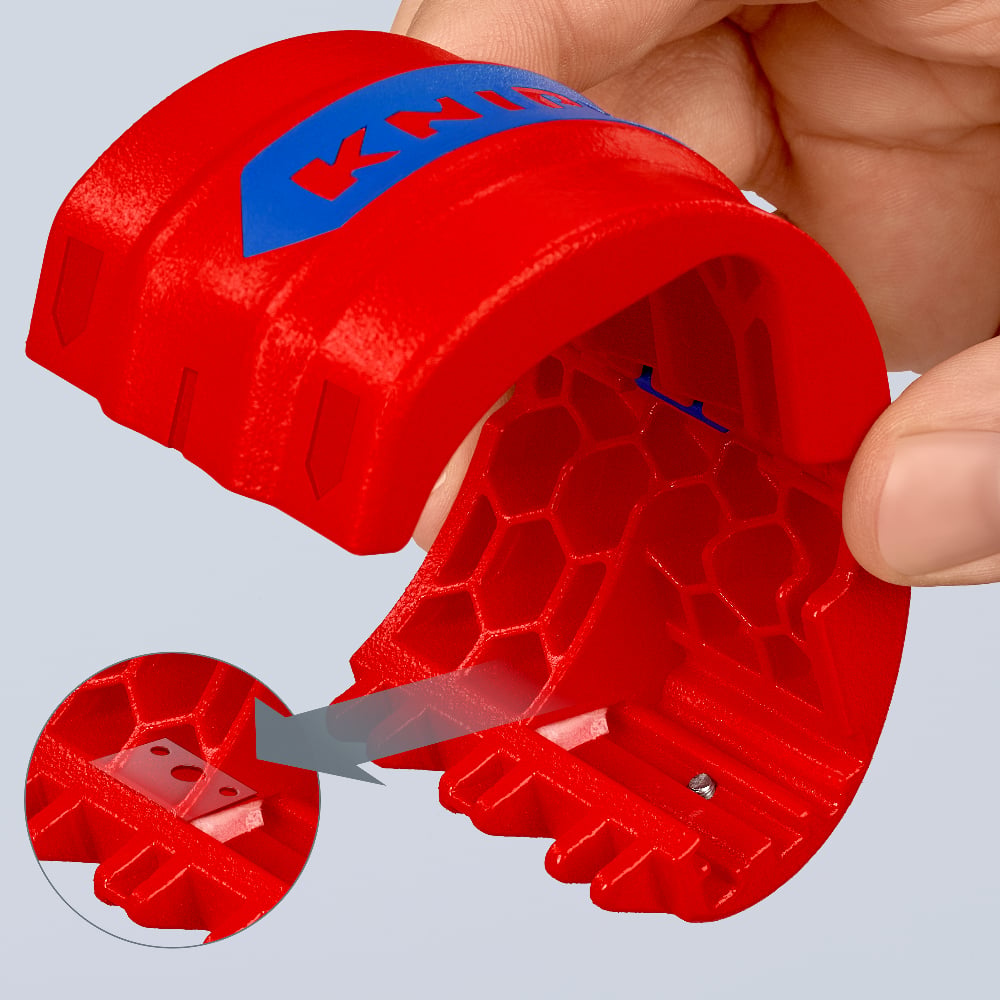

• Two spare blades are integrated into the tool

• Tool body made from sturdy reinforced plastic

• Blade unit made from die-cast zinc

• Blades made from special surgical stainless steel

• Compact and lightweight design is ideal for tool bags, pockets and confined work areas

Specifications

• Brand: KNIPEX

• Product Number: 902210

• KNIPEX Part Number: 90 22 10 BK

• Product Name: KNIPEX BiX® Cutter for Plastic Pipes and Sealing Sleeves

• Tool Type: Plastic Pipe Cutter / Sealing Sleeve Cutter

• Cutting Capacity, HT and Plastic Pipes: Ø 20mm to Ø 56mm

• Cutting Capacity, Sealing Sleeves: Ø 20mm to Ø 56mm

• Maximum Wall Thickness, Unreinforced Plastic Pipe: Up to 2.4mm

• Maximum Wall Thickness, Soft Plastic and Foam-Core Pipe: Up to 3.5mm

• Sealing Sleeve Cutting Position: Approximately 2–3mm from the wall

• Blade Block: Rotatable knife block for pipe and sealing sleeve cutting

• Blade Position for Pipe Cutting: Blade in the middle

• Blade Position for Sealing Sleeves: Blade on the outside

• Blade Material: Special surgical stainless steel

• Blade Unit Material: Die-cast zinc

• Tool Body Material: Sturdy reinforced plastic

• Spare Blades: Two spare blades integrated in the tool

• Locking Mechanism: Yes, for safer transport

• Suitable Materials: Unreinforced plastic pipes, HT drain pipes, electrical conduit, soft plastic pipes, foam-core pipes and sealing sleeves

• 1000V Insulated: No

• REACH Compliance: Does not contain SVHC

• RoHS Compliance: Not applicable

• Dimensions: 72 x 85 x 44mm

• Weight: 70g

• EAN / Barcode: 4003773087311

• Application: Cutting plastic pipe, HT drain pipe, electrical conduit and sealing sleeves during installation and service work

Ideal For

• Professional electricians

• Plumbers

• HVAC technicians

• Refrigeration technicians

• Maintenance workers

• Service technicians

• Electrical conduit cutting

• HT plastic drain pipe cutting

• Plastic pipe installation and trimming

• Cutting sealing sleeves close to walls

• Working in confined spaces and finished areas

• Trade tool kits, service bags and maintenance vehicles

Compact Pipe Cutter for Clean Plastic Pipe and Sealing Sleeve Cuts

The KNIPEX 90 22 10 BiX® Cutter is built for tradespeople who need a small, clean and practical cutter for plastic pipe and sealing sleeve work. With its rotatable knife block, shaving-free cutting action, integrated spare blades and compact reinforced body, it is ideal for installation and service jobs where speed, control and clean results matter.

For electricians, plumbers, HVAC technicians, refrigeration technicians and maintenance teams, the KNIPEX BiX® provides trusted KNIPEX quality in a compact tool designed for plastic conduit, HT drain pipes, soft plastic pipes, foam-core pipes and sealing sleeves.
