WIPCOOL P120S Supermarket Refrigeration Condensate Pump – 120L/h

P120S

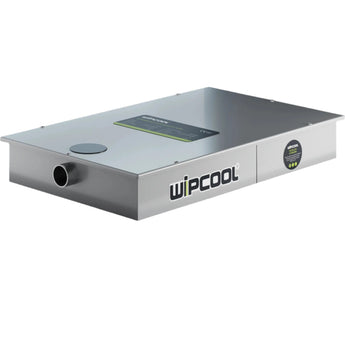

The WIPCOOL P120S Supermarket Condensate Pump is specifically designed for removing condensate and defrost water from refrigerated display cabinets and commercial refrigeration equipment. Its low-profile stainless steel tank fits easily beneath low-clearance cabinets, while the powerful pump delivers up to 120L/h with an impressive maximum discharge head of 30 metres.

Key Features

• Maximum flow rate of 120L/h

• Exceptional maximum discharge head of 30 metres

• Specifically designed for refrigerated display cabinets and commercial refrigeration

• Handles hot defrost water up to 75°C

• Low-profile design at approximately 70mm high for installation beneath display cabinets

• Stainless steel reservoir for durability and easy cleaning

• Effectively pumps away water produced during refrigeration defrost cycles

• Built-in non-return valve helps prevent discharged water flowing back into the tank

• Top and side inlet options provide flexible installation

• Integrated filtration helps manage debris commonly found in refrigeration condensate

• Suitable for single or multiple refrigeration units

• Compact design provides easy access for cleaning and maintenance

Specifications

• Model: P120S

• Voltage: 230V AC, 50/60Hz

• Maximum Flow Rate: 120L/h

• Maximum Discharge Head: 30m

• Maximum Water Temperature: 75°C

• Power Consumption: 30W

• Sound Level: 40–62dB(A) at 1m

• Tank Material: Stainless Steel

• Approximate Height: 70mm

• Inlet Options: Top or Side

• Non-Return Valve: Yes

Ideal For

• Supermarket refrigerated display cabinets

• Convenience store refrigerated cabinets

• Commercial refrigeration systems

• Refrigerated produce display cases

• Freezer and refrigeration defrost drainage

• Single refrigeration units

• Multiple refrigeration units connected to a common drainage system

• Low-clearance installations beneath refrigerated cabinets

• Applications involving hot defrost water

• Commercial food retail and refrigeration installations

The WIPCOOL P120S is purpose-built for the demanding condensate and defrost drainage requirements of commercial refrigeration equipment. Its low-profile stainless steel construction, ability to handle water temperatures up to 75°C and exceptional 30-metre discharge capability make it an ideal solution for supermarkets, convenience stores and other commercial refrigeration installations.
