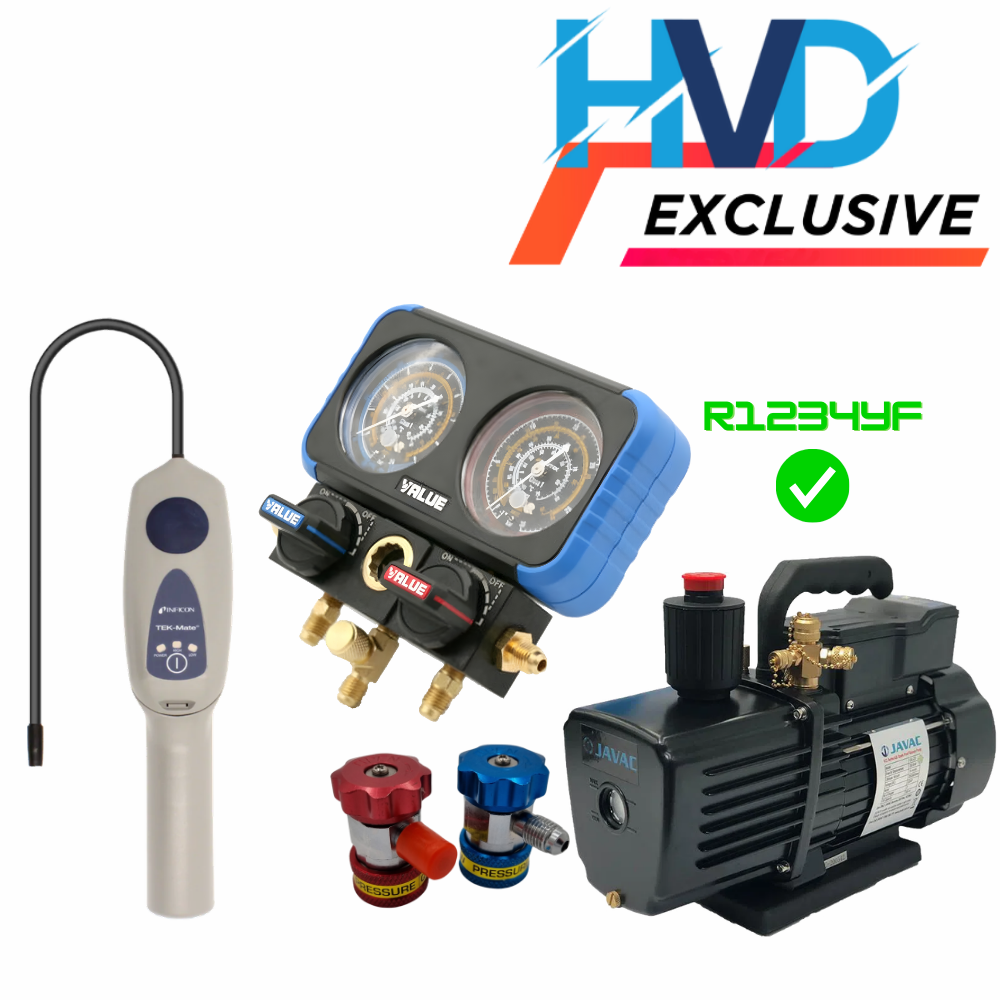

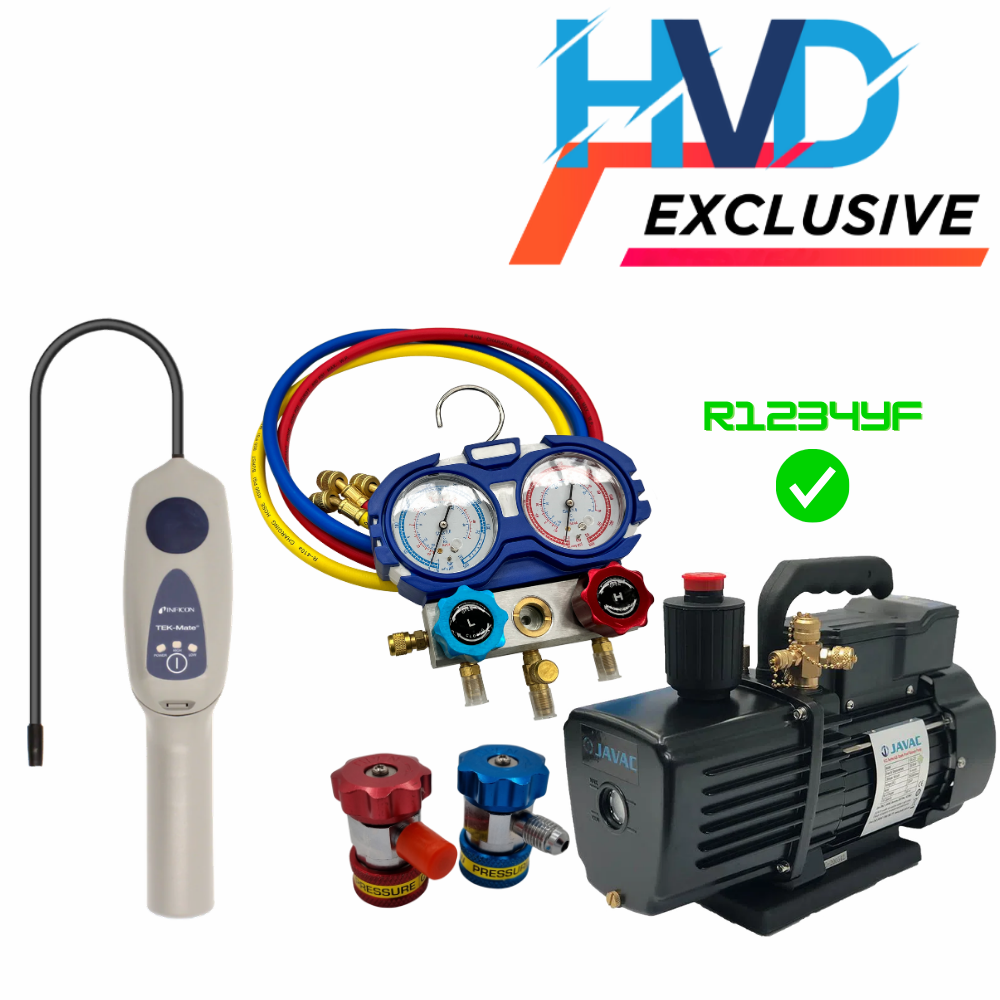

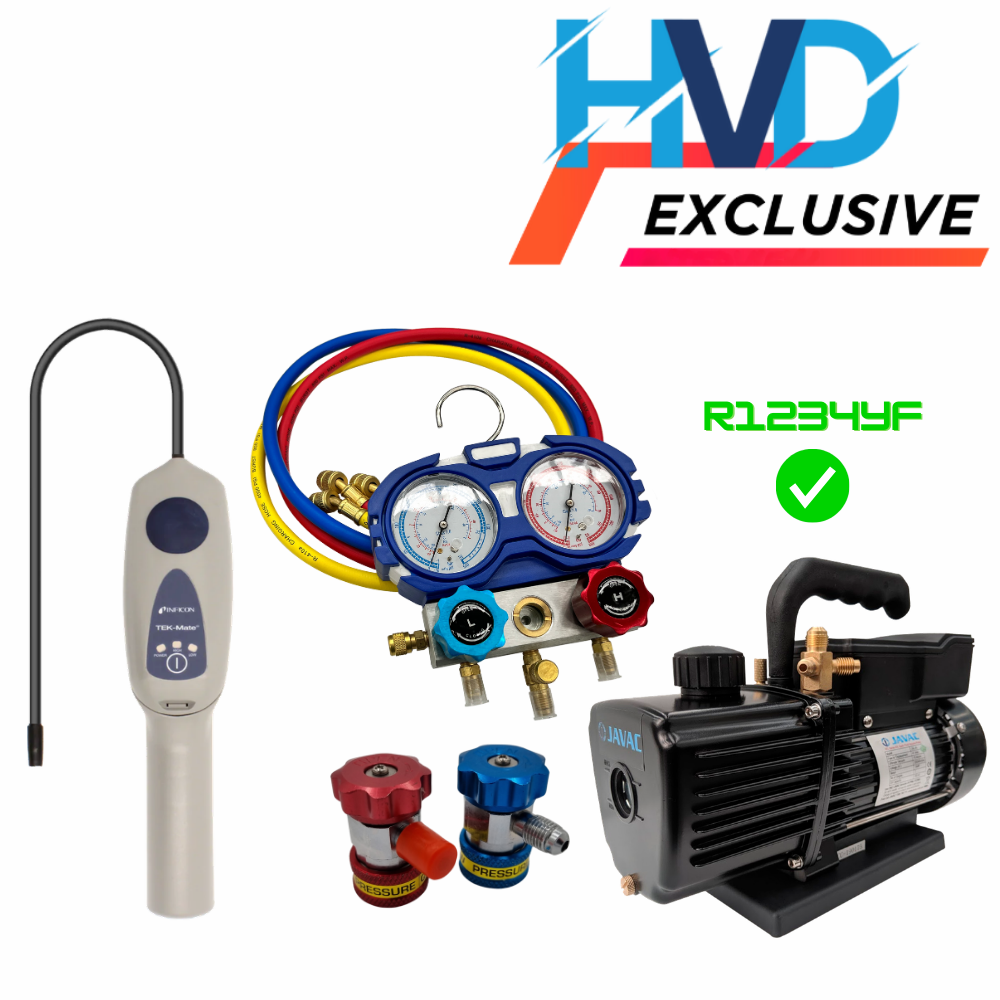

HVACDIRECT Basic Auto Kit 1: Vacuum Pump, Manifold & Leak Detector

HVACDIRECT Basic Auto Kit 1 - R134a (Vacuum Pump, Refrigerant Manifold & Leak Detector)

R134a-KIT1/R134a-KIT1.5

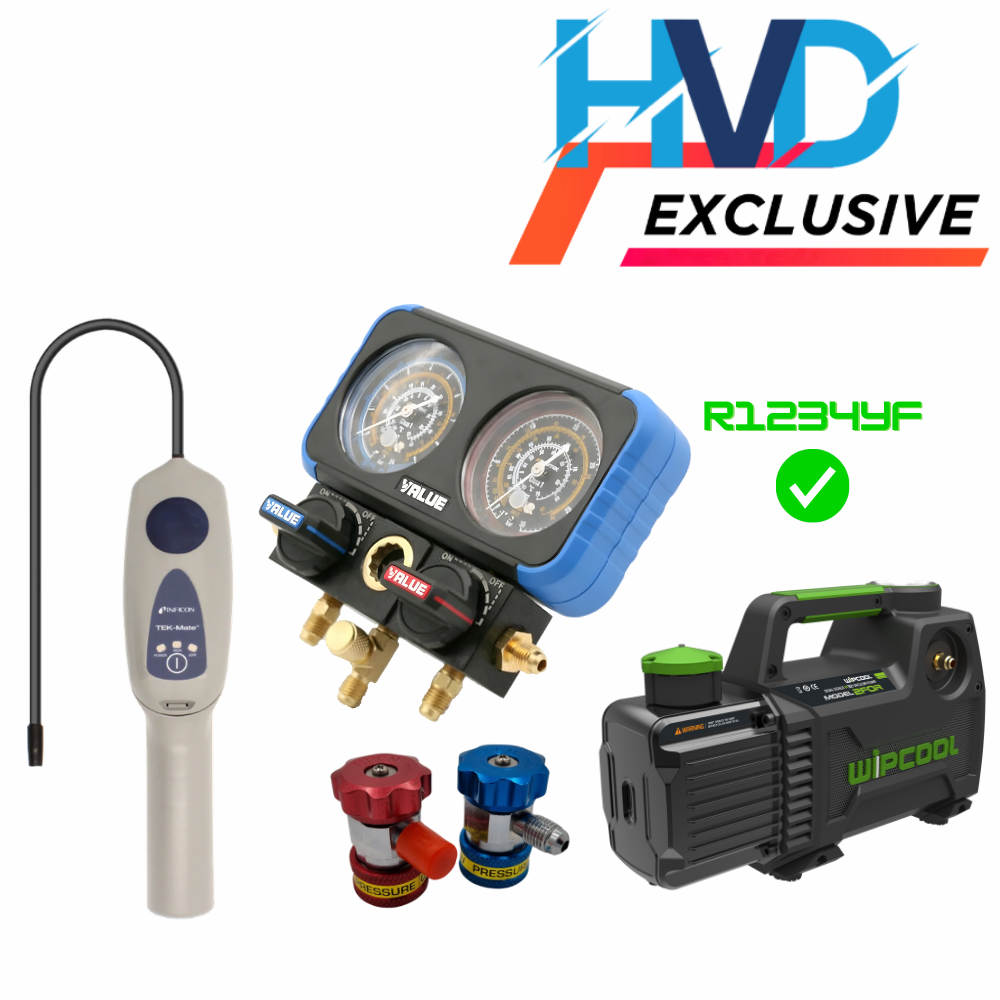

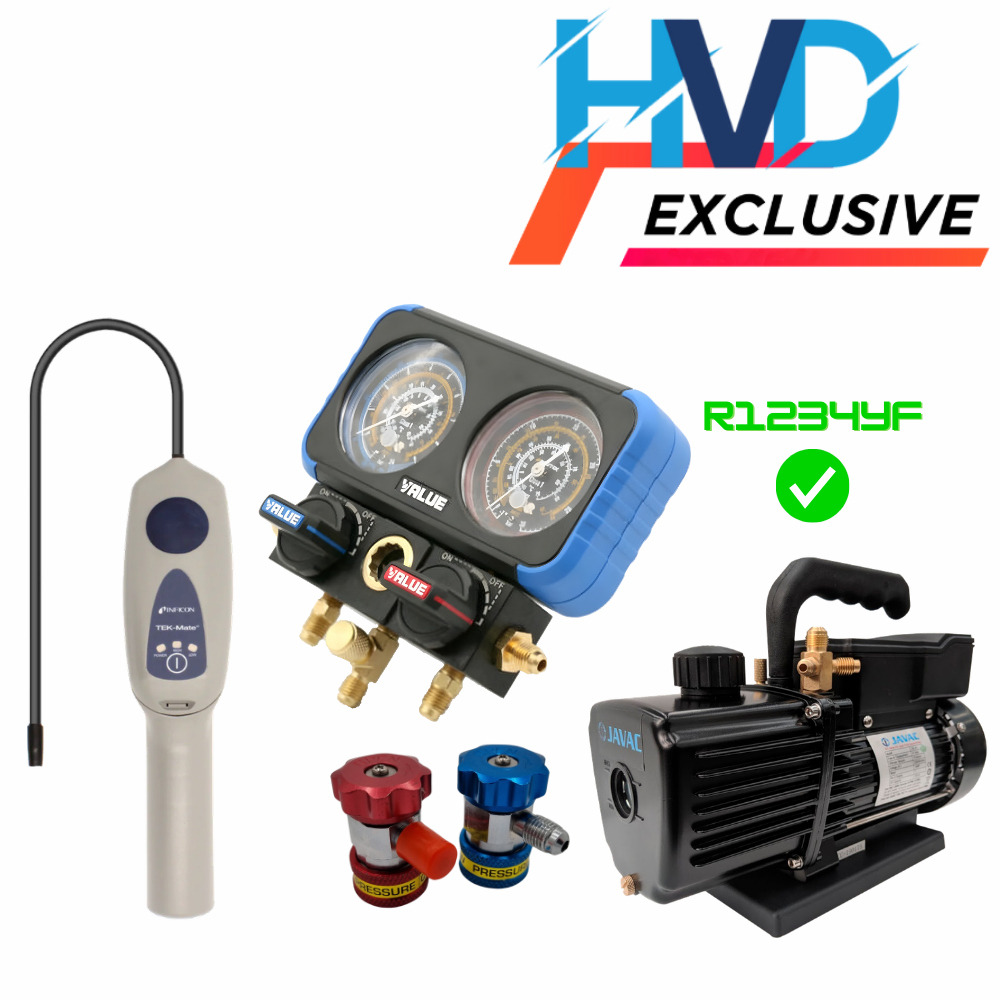

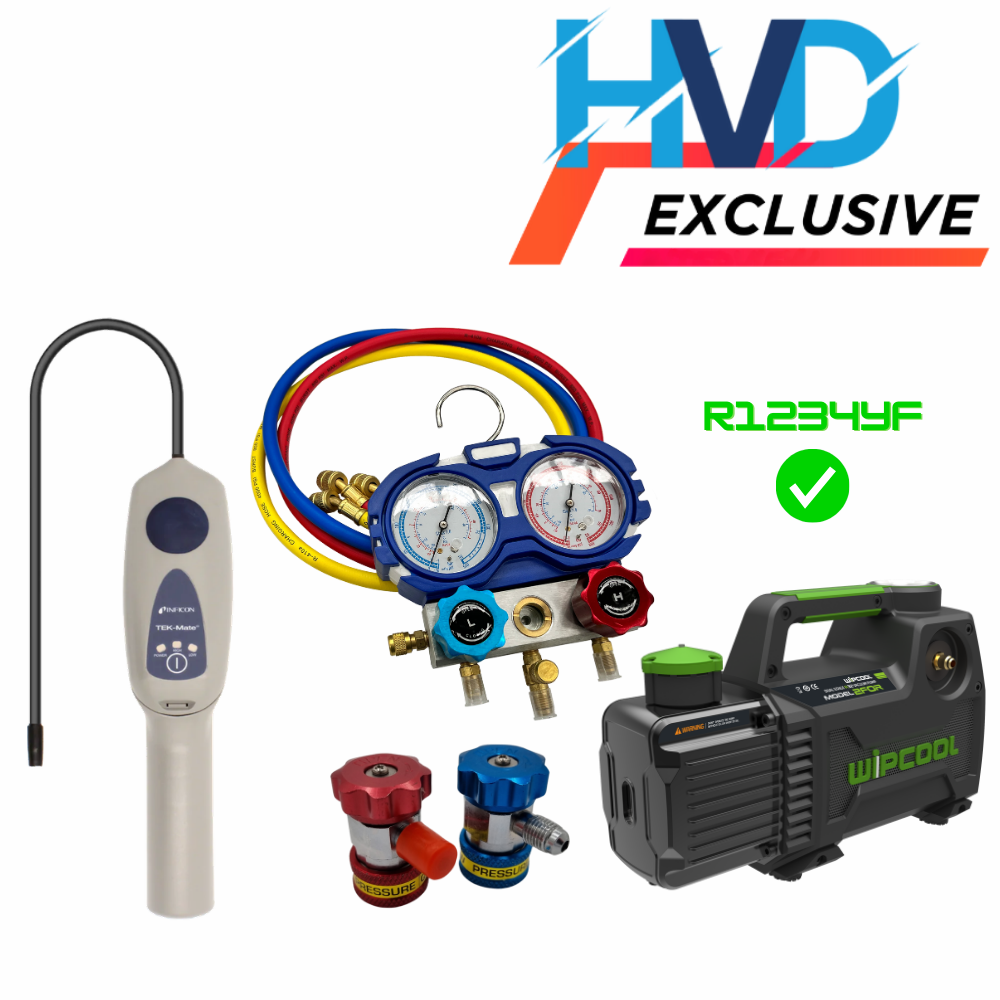

This HVACDIRECT R134a-KIT1, Basic Auto Kit (Vacuum Pump, Refrigerant Manifold & Leak Detector) is a high-quality tool kit that is ideal for basic Auto A/C requirements. Included in this kit are some of HVAC Direct's best selling products.

Kit contains:

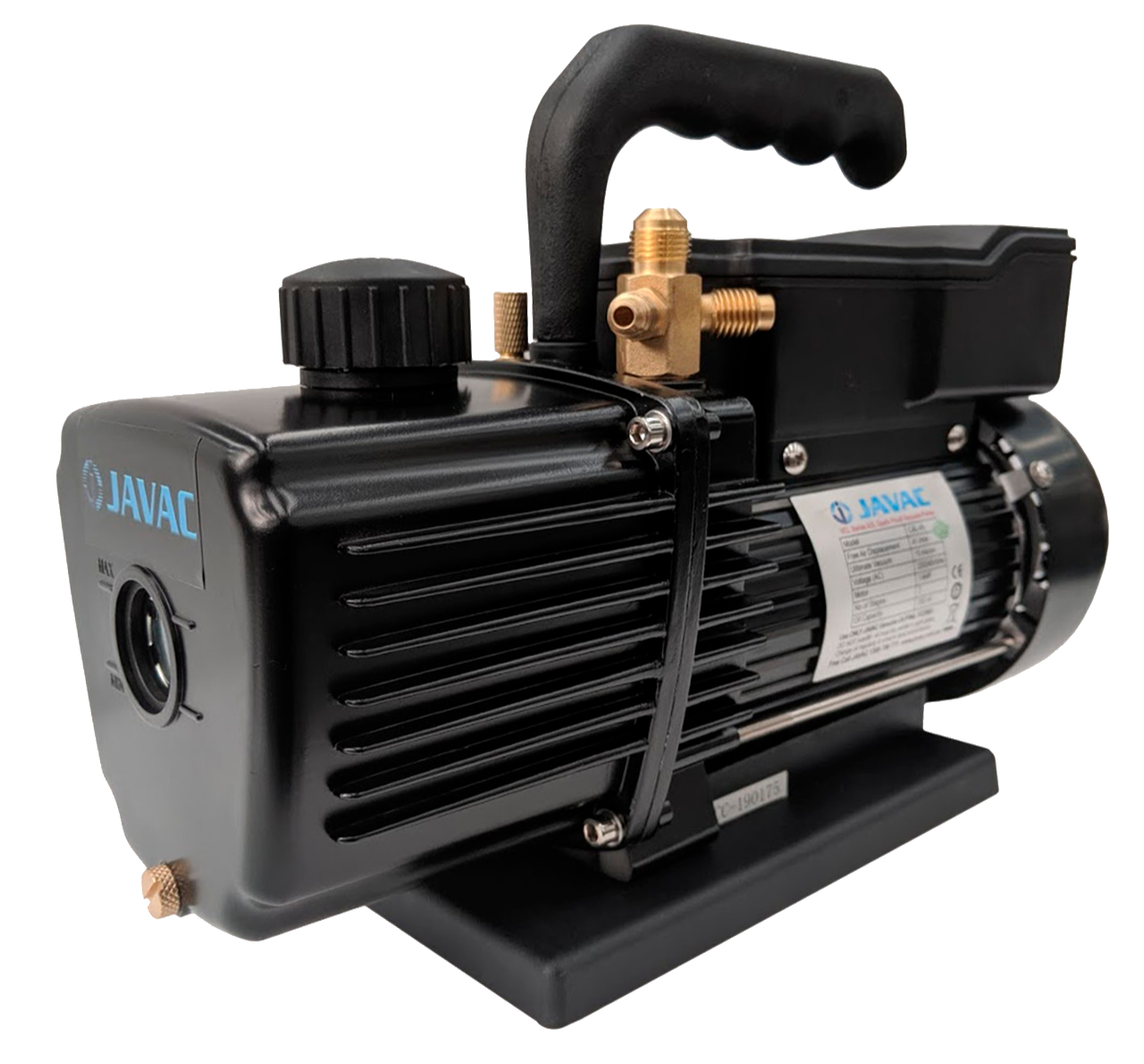

#1. JAVAC CAL Series pumps/Wipcool Series F pump

Option 1 - VCL452 - 45L/min

Option 2 - VCL822 - 80L/min

Option 3 - VCL1422 - 140L/min

Option 4 - VCL2322 - 230L/min

Option 5 - 2F0R - 45Lmin

JAVAC CAL Series Vacuum Pumps are professional two-stage rotary vane pumps designed for fast and efficient evacuation of refrigeration and air conditioning systems. Built for HVAC technicians, they deliver deep vacuum performance, reliable operation, and durable construction for installation, servicing, and maintenance of modern refrigeration equipment. Compact, powerful, and easy to maintain, the CAL Series ensures effective moisture removal and optimal system performance.

Wipcool F Series Vacuum Pumps are high-performance two-stage rotary vane pumps designed for fast and reliable evacuation of refrigeration and air conditioning systems. Built for HVAC professionals, they provide deep vacuum performance, durable construction, and efficient moisture removal for installation, servicing, and maintenance of modern HVACR equipment.

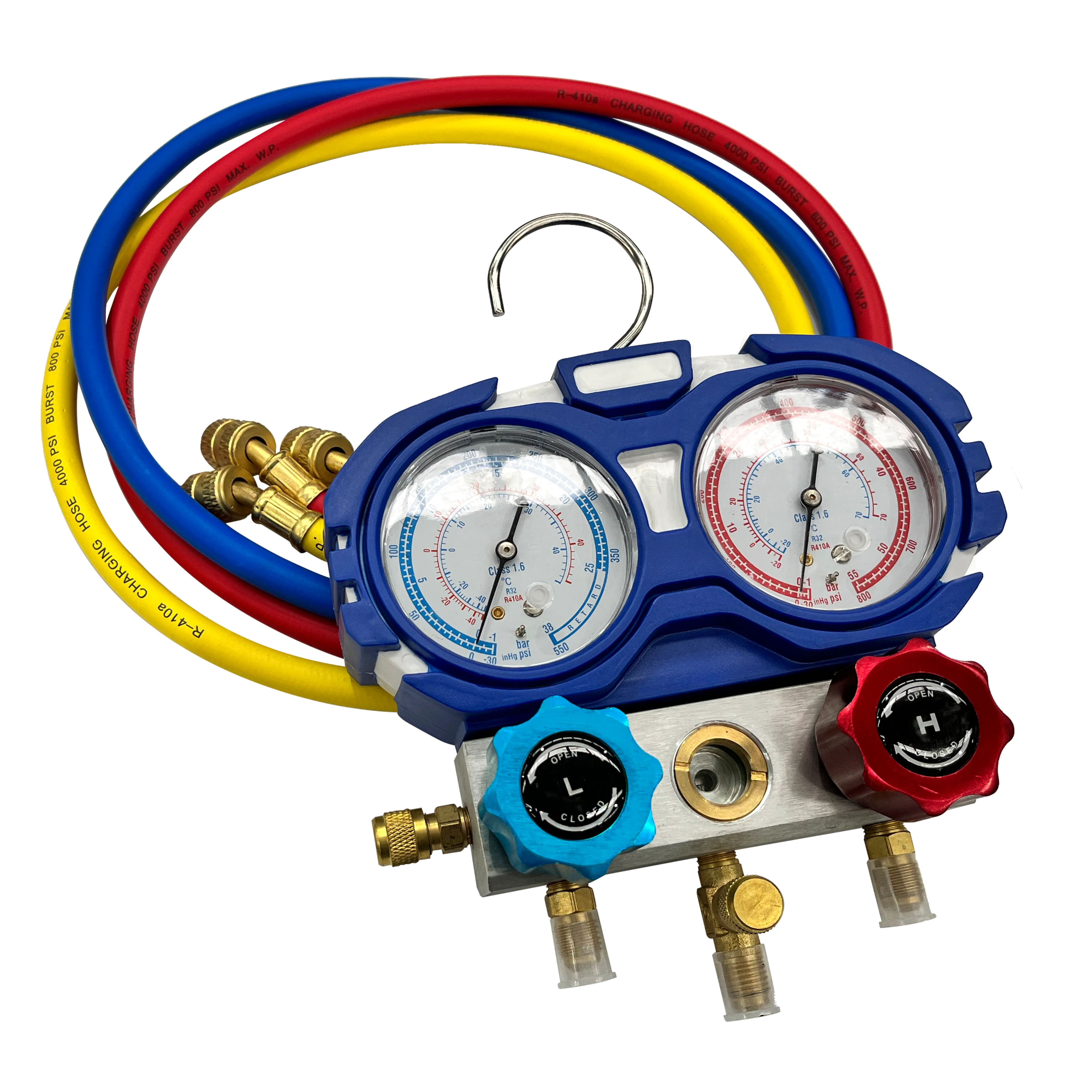

#2.  2-Valve Automotive Refrigerant Manifold Set - R134a

Option 1: HMG2R134AII

This HVD HMG2R134AII, 2-Valve Automotive Refrigerant Manifold Set is designed and manufactured for use with R134a. Made for professionals desiring to vacuum, charge, diagnose, or even evacuate refrigerant in automotive A/C systems.

Features:

• High quality extruded aluminium body
• Teflon diaphragm-valve mechanism for excellent sealing & large flow
• 80mm gauges with rubber protective cover
• Pulse-free gauge
• Zero-pointed calibration
• Extra-large sight glass for visual refrigerant check
• Soft ergonomic design with colour-coded knobs

Specifications:

• 2-Valve anodised aluminium body with 1/4" SAE fittings
• Gauge type: 80mm class 1.0 accuracy gauges with internal silicon dampeners for flutter-free operation
• Hoses: Premium 36" JAVAC hose set with 1/4" SAE fittings
• Ear buds
• Heavy duty carrying case

Option 2: VRM20401

This VALUE VRM20401, Refrigerant Manifold/Gauge Set provides a complete manifold/gauge kit for all professionals. This durable yet ergonomic design is part of VALUE's NAVTEK range and is a top quality & extremely reliable kit.

Features:

• Suitable for: R22/R134a/R410a/R407c
• Dial size: 70mm
• Pressure range: -30INHG~800PSI; -30INHG~550PSI
• Hose set: RED: 1/4"-5/16"; YELLOW: 1/4"-1/4"; BLUE: 1/4"-5/16"; built-in 2 adapters, external thread: 5/16" SAE , internal thread: 1/14" SAE
• Hose length: 150cm
• Comes in blow moulded carry case

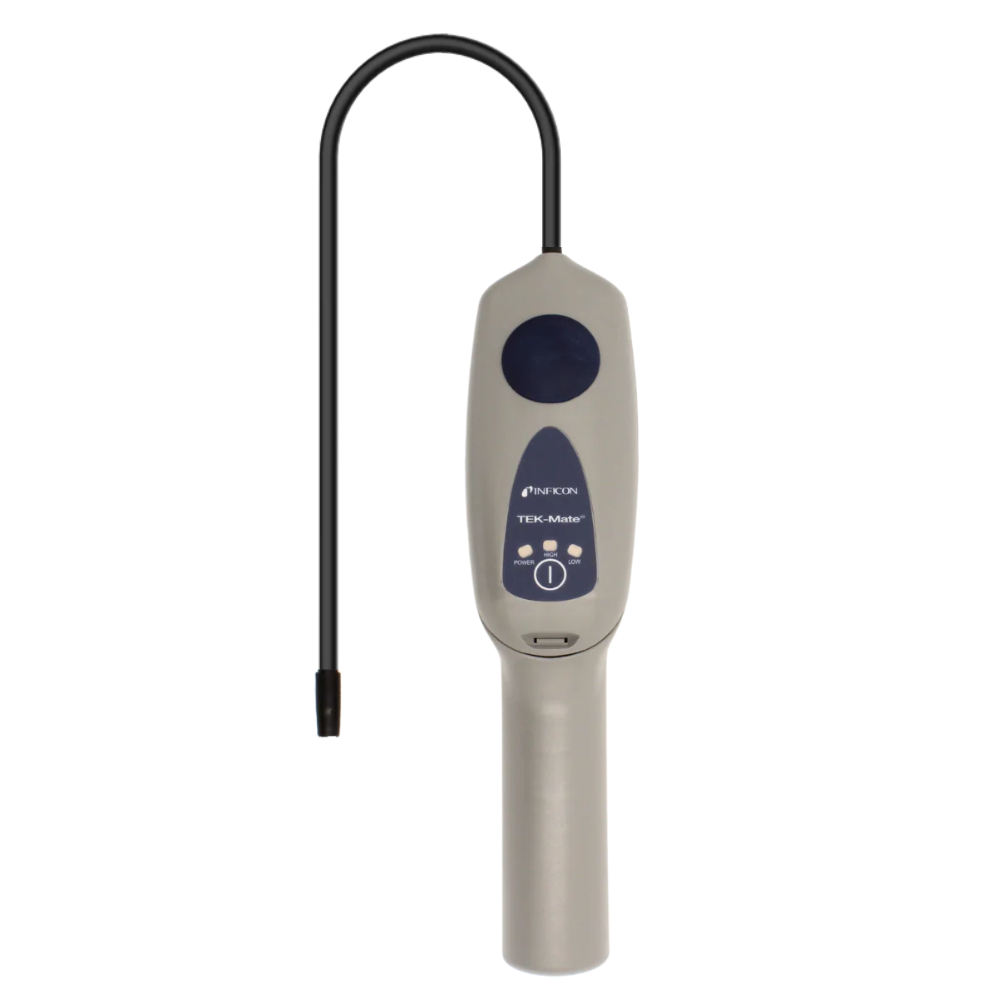

#3. INFICON Tek-Mate Leak Detector

705202G6

This INFICON 705202G6, Tek-Mate Leak Detector offers hand-held convenience. It boasts proven heated diode sensor technology and incorporates an electrochemical sensor consisting of a ceramic substrate, doped with a reactive element, and maintained at high temperatures by a built-in heating element.

Applications:

• Residential

• Light commercial

• Industrial

• Automotive A/C

Benefits:

• Detects all CFC's, HCFC's and HFC's

• Runs on 2 D-cell batteries

• No adjustments required as it continuously monitors and compensates for changing background noise

Specifications:

• HDST: Heated Diode Sensor Technology

• Operating temperature: -20 - 50 °C

• Minimum sensitivity: 5 g/yr

• Sensor life: 100 hours

• Battery life: 16 hours
