Wipcool 3PC - 141L HVAC Installer Kit - 18V

Wipcool 3PC - 141L HVAC Installer Kit - 18V

Part Number: JAV2F2BRMSK1

Efficiency, precision, and reliability are the cornerstones of any successful HVAC installation project. Understanding the demands of modern HVAC systems, we proudly introduce our all-new HVAC Installation Tool Kit, designed to elevate your service quality and streamline your workflow. This comprehensive kit is equipped with state-of-the-art tools that cater to every critical aspect of HVAC installation, ensuring optimal performance and long-term satisfaction for your clients. All packaged in a heavy-duty tough tool box.



JAV2F2BR: 18V Series, 141 L/min, 2-stage Vacuum Pump - R32 Compliant



WIPCOOL Cordless Series, 140 L/min, 2-stage Vacuum Pump - R32 Compliant (Pump Only) + 240v adaptor

JAVF2BRPUMP



This WIPCOOL Cordless Series JAVF2BRPUMP is a quality 2-stage, oil rotary vane pump with a 140 L/min flow rate and a 15 micron ultimate vacuum.

This pump is ideal for general refrigeration service, and is packed with the features below.



Applications:

• Bottle shops, convenient stores, restaurants and catering facilities

• General Refrigeration

• Residential or Industrial

• Split system installation or servicing

Features/Benefits:

• Comes with 1x Milwaukee battery adapter, 1x Makita battery adapter and 240v adapter
• Comes with a free starter bottle of oil
• R32 and 1234yf compliant
• Manufactured to WIPCOOL's high quality standards
• 140 L/min flow rate
• 15 micron ultimate vacuum
• Built-in vacuum gauge
• Automatic solenoid valve
• Anti-oil demister to prevent oil spillage
• Fitted with a 1/4" SAE connection
• 500ml oil capacity
• Dimensions (mm): 379x130x225
• Weight (kg): 7.5kg





JAVALD2: HEATED DIODE REFRIGERANT LEAK DETECTOR

Features:

• Flexible probe

• High precision and sensitivity sensor

• LCD Display

Specifications:

• Sensor type: Heated diode gas sensor

• Minimum detectable leakage: ≤3g/year

• Reaction time: ≤ 3 seconds

• Warm-up Time: 30 seconds

• Reset Time: ≤ 10 seconds

• Operating Temperature Range: 0-50 ℃

• Operating Humidity Range: <80% RH (non-condensing)

• Applicable Refrigerant: CFCs, HCFCs, HFCs. HCs and HFOs

• Sensor lifetime: ≥ 1 year

• Reset: Automatic/ Manual

• Probe Length: 420mm (16.5 in)

• Battery: 3 x AA alkaline battery, 7 hours continuous working

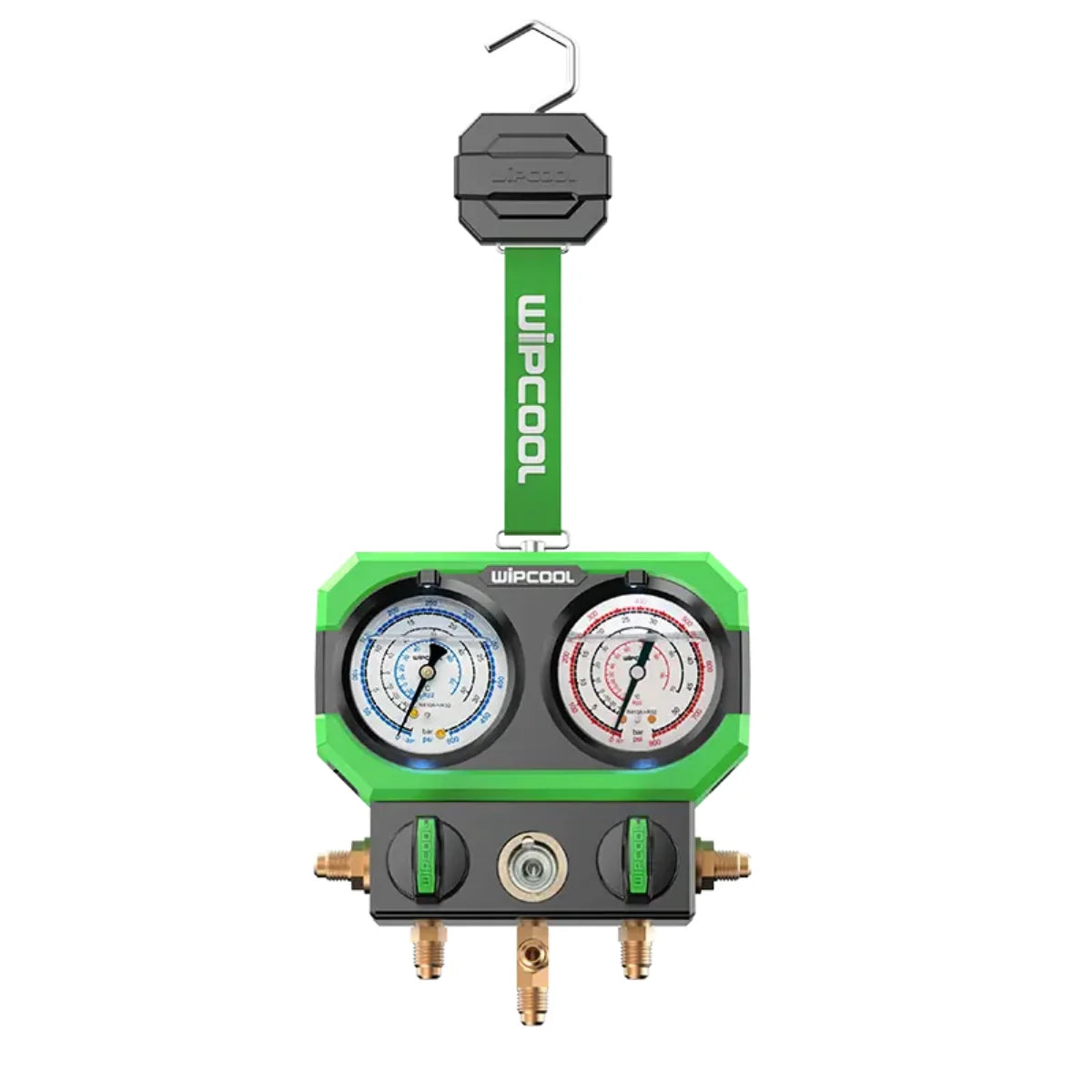

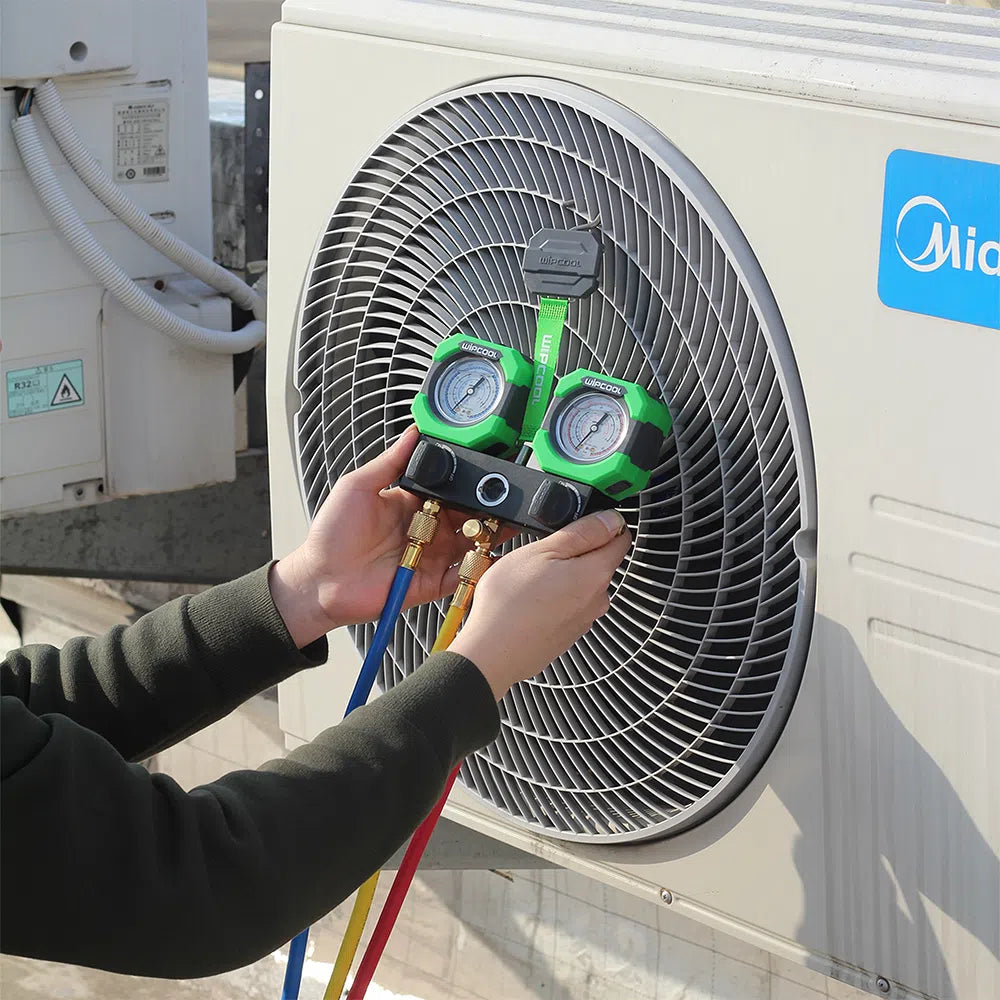

JAVMG2K: 2 Valve Manifold Gauge & Hose Set

• Sight Glass

• Rubber Bumper Protection

• Gauge lights, powered by small solar cell

• Magnetic hanging strap

• ¼ tunrn valves

• Battery Type: Built-in Li-ion battery (3-7V/120mAh)

• Gauge Scale: R22 R410A    R32

• Gauge Type: Oil filled – prevents any flutter in the needle.

• Interface:  3 X 1/4'' SAE

• Diameter: Ø50

• Pressure: -30inHg-500psi / -30inHg-800psi

• Hose Pressure: 800psi Max WP / 4000psi Burst Pressure

• Accessories: Set of 3 RYB refrigeration hoses, 2 X Adapters (5/16''-1/4'')

• Packing: Tool bag
