HVACDIRECT Refrigeration & HVAC Split System Install Kit (Pump, Manifold Set, Tool Set, Scales, Thermometer, Tube Bender & Leak Detector)

EBAYKIT13
$866.50 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
EBAYKIT13

Usually ready in 24 hours

HVACDIRECT Refrigeration & HVAC Split System Install Kit (Pump, Manifold Set, Tool Set, Scales, Thermometer, Tube Bender & Leak Detector)

KIT13



This HVACDIRECT KIT13, Refrigeration & HVAC Split System Install Kit (Pump, Manifold Set, Tool Set, Scales, Thermometer, Tube Bender & Leak Detector) is a high quality tool kit that is ideal for general refrigeration and split system service. Included in this kit are some of HVAC Direct's best selling products.



Kit contains:


#1. Refrigeration Vacuum Pump (VP215N)

Ideal for general refrigeration service, our top selling 45L/min Vacuum Pump is a quality, 2-stage oil rotary vane pump with 15 micron ultimate vacuum.

Applications:

  • Bottle shops and convenient stores

  • Restaurants, cafes and catering facilities

  • General refrigeration

  • Household or residential including split systems

  • Commercial

Key Benefits:

  • Manufactured to high quality JAVAC standards

  • Great value for money

  • Anti-oil demister to prevent oil spillage

  • Fitted with 1/4" SAE connector

Refrigerants:

R12, R134a, R401C, R406A, R500, R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A, R411B, R412A, R502, R509, R402A, R404A, R407A, R407B, R410A & R507

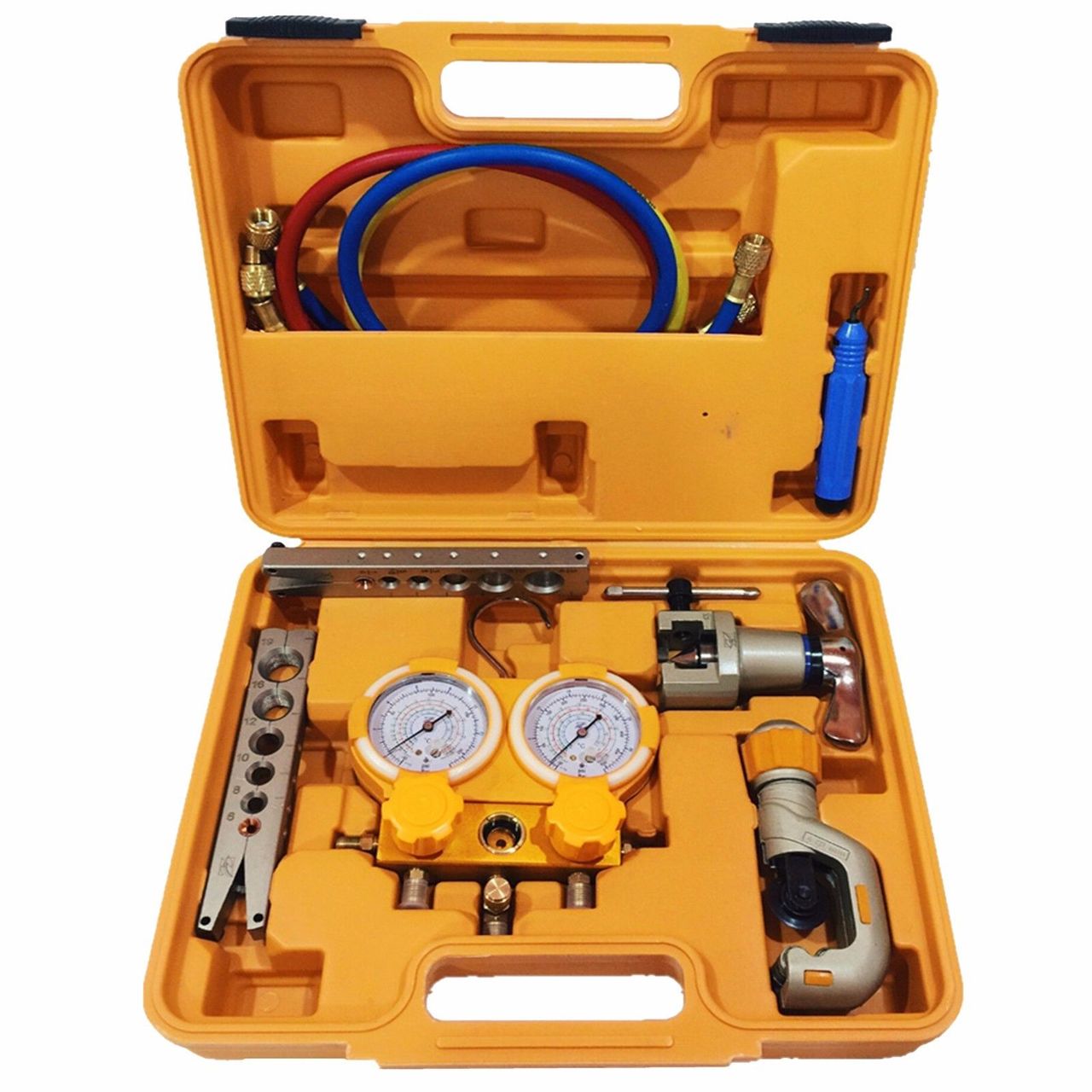

#2. HVACDIRECT Manifold Set & Refrigeration Tool Kit

ZRB5BA



This HVACDIRECT ZRB5BA, HVACDIRECT Manifold Set & Refrigeration Tool Kit is the perfect entry level tool kit for refrigeration. See all features of products within the kit below;



1. Manifold gauge:

  • Refrigerants: R410a, R22, R134a, R404a

  • Anti-collision cover for gauge protection

  • Operation: 2 valve with sight glass

  • Port size: 1/4" SAE

2. Hoses:

  • Length (mm): 1500

  • Connections: 1/4" SAE x 5/16"

  • Working pressure: 800 psi

  • Burst pressure: 4000 psi

  • Colours: Blue, red & yellow

3. Tube flaring tool

  • Heavy duty eccentric cone flaring

  • Steel design

  • Bar lock

  • Hardened steel bearings

  • Flaring bar sizes (mm): 6, 8, 10, 12, 16 & 19

  • Flaring bar sizes (inches): 1/4", 5/16", 3/8", 1/2",  5/8" & 3/4"

4. Tube cutter:

  • 6x roller bearing for easy turning

  • Large wheel for easy cutting

  • Tube size: 4-32mm

5. Deburring tool:

  • Plastic body with hardened steel swivel tips

  • Internal tip storage, including 1 spare tip



#3. HVACDIRECT Refrigerant Leak Detector (Heated Diode)

LD100



This HVACDIRECT LD100, Refrigerant Leak Detector is a highly sensitive, quick responding & easy to use entry level leak detector.



Features:

  • Product modelling unique, accord with human body function

  • LED display

  • Sensitivity Level 7

  • Conform to the CE test standard

  • SAEJ1627 standard

  • The probe can be replaced

  • Has the battery indicator, low battery alarm function

Specifications:

  • Power types: 5 dry cell

  • Refrigerant detection range: R12, R22, R502, R134A, R404A, R407C, R410A, R600A & HFC/HCFC series of refrigerants

  • Sensitivity rating: Sensitivity Level 7

  • Detection precision: For R134a, static: 3 g/yr & dynamic: 5 g/yr

  • Operating environment: 0 °C〜40 °C; relative humidity (50%~85% rh)

  • Probe type: Semiconductor sensor

  • Warm-up time: 30 seconds



#4. HVACDIRECT Digital Thermometer

WT2THERMO



This HVACDIRECT WT2THERMO, HVACDIRECT Digital Thermometer is a high quality, portable thermometer. With it's 900mm flexible lead, readings can be taken using it from outside of vehicles.



Details:

  • Temperature: -50 °C to +300 °C

  • Resolution: 0.1 °C

  • Accuracy: ±1 °C

  • Power: DC 1.5 V AAA alkaline battery

  • Probe length: 100 mm (+ handle)

  • Screen size (mm): 32 x 14

  • Plus: Min/max and alarm functions



#5. HVACDIRECT Refrigeration Flaring Tool Kit (With Tube Cutter)

LT1226A



This HVACDIRECT LT1226A, Refrigeration Flaring Tool Kit is a quality, versatile, 3-piece kit used for aluminium and copper piping, brake and fuel lines, and cooling and transmission lines.



Detail:

  • Sizes:  3/16", 1/4", 5/16", 3/8", 7/16", 1/2" and 5/8"
  • Used for: soft pliable metals such as copper and aluminium

  • Flaring tools provide a water-tight fitting and come with industry-standard measurements on the tool

  • They are rated highly upon their ability to form tight fittings

  • Set in: Handy PVC carry storage case



#6. JAVAC Pro-Charge 3 Refrigerant Charging Scale

C12626



This JAVAC C12626, Pro-Charge 3 Scales offer a 100kg weighing limit. The scale is highly accurate, extremely durable and easy to operate.



Features:

  • Power on self test (only lasts 2 seconds)
  • Tare deduction in full range (100kg)
  • LCD display
  • Carry bag included
  • Auto turn off feature, after 10 minutes idle



#7. WIPCOOL Tube Bender

JAVHB3



This WIPCOOL JAVHB3, Tube Bender is a quality tool used to bend and shape tubing across industries such as; HVAC, refrigeration, automotive, hydraulic and pneumatic systems maintenance.

Specifications:

  • Provides flawless bending results

  • Ergonomic handle grips
  • High quality die-cast aluminium for long life
  • Sizes: 1/4", 5/16" & 3/8" (O.D.)

    WARRANTY:
    12 months from date of purchase.
    *All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
