FIELDPIECE POWER True RMS Clamp Meter—with kW power range for electricians & HVACR service

SC480INT
$629.80 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
SC480INT

FIELDPIECE POWER True RMS Clamp Meter—with kW power range for electricians &  HVACR service

SC480INT



As Top-of-the-Line of HVACR meters, not only does the SC480INT communicate with Job Link, but you can also measure the kW power consumption to determine system efficiency with it.

Details:

  • Verify 3-phase rotation with just two leads

  • Take more accurate VAC and AAC readings with True RMS

  • Filter out noise to get true voltage and frequency with low pass filter

  • Measures kW power for system efficiency

  • Has True RMS and Low Pass Filter (LPF) to obtain accurate VFD readings

  • Measures start/run capacitors

  • Molex tips reach into power connectors

  • Magnet for mounting meter during use

  • Safety-rated CAT IV-600 V/CAT III-1000 V

  • Job Link® System Mobile Capability

  • Send and save electrical measurements to Job Link® System mobile App Plus, calculate kW power and system efficiency for in depth understanding of system performance in real world conditions

  • Electrical Testing for HVACR: True RMS readings through the clamp or leads. Inrush current mode to capture starting Amps

  • Test 3-Phase Power Test: Conveniently test phase rotation without carrying an extra meter or lead

  • Rugged Dual Display: Broad temperature range tolerance allows for testing in freezers and on rooftops

        Specifications:

        • Display: 10000 count dual display

        • Backlight: 5 minute duration with auto-off, blue colour

        • Overrange: “OL” or “-OL” is displayed

        • Measurement rate: 3.3 times per second, nominal

        • Zero: Automatic

        • Operating environment: 0 to 50 °C at <70% RH

        • Storage temperature: -20 to 60 °C, 0 to 80% RH (with battery removed)

        • Accuracy: Stated accuracy @ 23 °C ±5 °C, <75% RH

        • Temperature coefficient: 0.1 x (specified accuracy) per °C [0 to 19 °C, 28 to 50 °C]

        • APO (Auto Power Off): approx 30 minutes

        • Power: Single standard 9-Volt battery, NEDA 1604, JIS 006P, IEC 6F22

        • Battery life: 100 hours typical alkaline (No wireless, no backlight)

        • Low battery indication: Battery icon blinks and "batt" is displayed when the battery voltage drops below the operating level

        • Dimensions (mm): 247 x 79 x 48

        • Weight: approx 345 g including battery

        • Altitude: Up to 2000 m

        • Overload protection: 1000 VDC or 750 VAC rms unless otherwise stated

        • Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIII 600 V or above. Included test leads are gold-plated and have removable safety caps

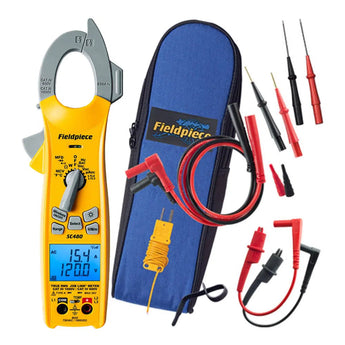

            What's included:

            • SC480INT Bluetooth Clamp Meter

            • ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath

            • ATB1 Wrap Tab Type K Thermocouple

            • ASA2 Short Alligator Lead Extensions

            • 9 V Battery

            • ANC7 Padded Case

            • Operator's Manual

            • Velcro Strap

                WARRANTY:
                12 months from date of purchase.
                *All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
