FIELDPIECE

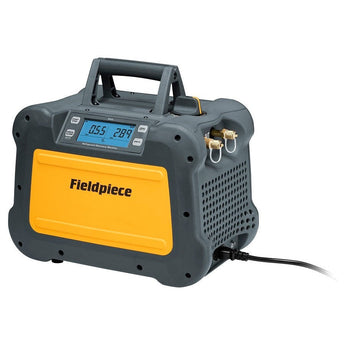

FIELDPIECE Smart Digital Refrigerant Recovery Unit

MR45INT
$2,407.90 AUD (Inc GST) $2,275.00 AUD (Inc GST) Sale
Tax included. Shipping calculated at checkout.
MR45INT

Usually ready in 24 hours

FIELDPIECE Smart Refrigerant Recovery Unit

MR45INT



This fully featured Fieldpiece Smart Refrigerant Recovery Unit has onboard system monitoring that adjusts motor performance to handle liquid and run twice as fast on vapor. The MR45INT also steps up low voltage at the supply input to deliver full power to the motor where high voltage drop is a problem.

With a powerful 1HP motor and super-sized condenser, this refrigerant recovery unit excels on longer and hotter jobs.

The easy-to-read display, lightweight (10 kg), straight hose connection ports, and single dial make this machine user-friendly while being tough enough for everyday use in air conditioning & refrigeration applications.

Details:

  • Dual cylinder compressor with long life and low friction with ceramic lined cylinders

  • Auto shut off when -10 kpa reached

  • Protected from voltage drop (runs as low as 190 vac)

  • Single dial self purge

  • Twice the revolutions per minute (3,000 rpm) and twice the horsepower (1 hp, 0.74 5kW) with DC Motor

  • Extra large condenser cools faster, especially on hot days

  • Water & rain resistant

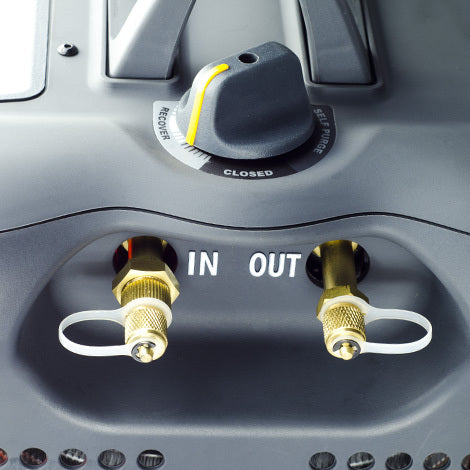

  • Easy access ports

  • Easy hose connections and built in power cord storage
  • Large backlit display with status messages

  • Suitable for use with A2L Class Refrigerants (Including R32 & R1234yf)

  • Also can be used for transferring SF6 [Sulfur hexafluoride] a non-flammable gas used in electrical components

  • Lightweight at only 10 kg

Specifications:

  • Display: 2 x 10,000 count LCD with status messages

  • Backlight: Blue colour

  • Measurement rate: 3.3 times per second, nominal

  • Input port pressure sensor range: -762 mm Hg to 600 psig
  • Output port pressure sensor range: -762 mm Hg to 600 psig

  • High pressure cutoff: 558 psig, nominal

  • Resolution & units: 1 psig (25.4 mm Hg), 0.05 bar (20 mm Hg), 0.01 Mpa (20 mm Hg), 5 Kpa (20 mm Hg)

  • Pressure sensor accuracy: ± 12.7 mm Hg (Vacuum) ± (0.6% of reading +2 psig)

  • Final recovery vacuum: 378.5 mm Hg

  • Compressor: Twin cylinder reciprocating (oil-less)

  • DC motor: 1 HP (variable smart speed)

  • Power source: 220–240 vac @ 50 Hz 1 phase
  • Max current draw: 7.0 Amp

  • Valve: Single dual-route ball valve

  • Input port filtration: 9 mm mesh screen, stainless

  • Operating environment: 0 to 50 °C

  • Storage environment: -20 to 60 °C

  • Approved refrigerants:  R12, R12345yf, R134A, R22, R32, R401A (MP39), R401B, R401C, R402A, R402B, R404A, R407A, R407B, R407C, R407D, R408A, R409A, R410A, R412A, R500, R502, R507 & R509

  • Dimensions:  376 x 250 x 344 mm

  • Weight: 10 kg

    What's included:

    • MR45INT Refrigerant Recovery Machine

    • 10 extra mesh screens for input port

    • 3 extra o-rings for input port

    • Operator’s manual

    WARRANTY:
    12 months from date of purchase.
    *All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
