FIELDPIECE
FIELDPIECE Wireless Manometer - Single Port & BlueTooth
Pickup available at 36 Enterprise Drive
Usually ready in 24 hours
Pickup currently unavailable.
This product needs 2-3 business days to process.
FIELDPIECE Wireless Manometer - Single Port & BlueTooth
JL3MN

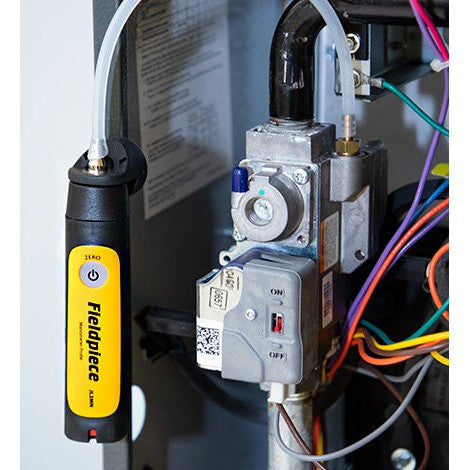

Part of the Job Link® System, the JL3MN BlueTooth Manometer lets you work the way you want to. Its strong magnet allows you to place your probe directly on a test port and its short tubes offer tangle-free work.
With a strong metal tip that‘s used with different sizes of tubing, the JL3MN is a reliable, accurate and durable measurement tool. It’s great for taking a single gas pressure measurement and works wirelessly—recording up to eight readings at once—with the Job Link App.
The JL3MN can be purchased as a single unity that includes also a slide-on Gas Adapter, extra hose with Brass Screw Fitting, and a Static Pressure Probe. You can, however, obtain two JL3MNs in the double pack dual manometer (JL3KM2) which includes a case, two slide-on Gas Adapters, extra hose with two Brass Screw Fittings, and two Static Pressure Probes.
Details:
-
Use for static air pressure, LPG or nat. gas and burner draft pressure
-
300 metres wireless range
-
Precise magnetic placement makes it more convenient with shorter hoses
-

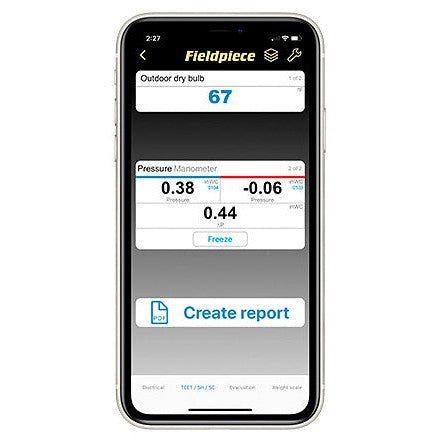

Record up to eight readings at once in Job Link App
Specifications:
-
Minimum device requirement: BLE 4.0 devices running iOS® 7.0 or Android 5.0
-
Compatible media: Dry, non-corrosive gas
-
Pressure port: Tube connector for flexible tubing 4.5 to 8 mm ID
- Units of measure: inWC, mmWC, mbar, psi, Pa
-
Accuracy and ranges:
inWC: ±0.02 on 0.00 to ±2.00 (±1.5% FS on 2.00 to ±60.00),
mmWC: ±0.5 on 0.0 to ±51.0 (±1.5% FS on 51.0 to ±1500.0),
mbar: ±0.05 on 0.00 to ±5.00 (±1.5% FS on 5.00 to ±150.00),
psi: ±0.001 on 0.000 to ±0.072 (±1.5% FS on 0.072 to ±2.165),
Pa: ±5 on 0 to 498 (±1.5% FS on 498 to ±14930)
Maximum overload pressure: 321.08 inWC (11.6 psi; 80.0 kPa) -
Battery type: 2 AAA
-
Battery life: 150 h typical alkaline. LED slow-blinks red when battery replacement is needed
-
Auto power off: 2 h (APO can be disabled)
-
Wireless range: 305 m line of sight … obstructions affect distance
-
Radio frequency: 2.4 GHz:
-
Operating environment: -23 to 50 °C at <75% RH
-
Storage temperature: -23 to 60 °C at <80% RH (with batteries removed)
-
Temperature coefficient: 0.1 x (specified accuracy) per 1 °C (-23 to 18 °C, 28 to 50 °C)

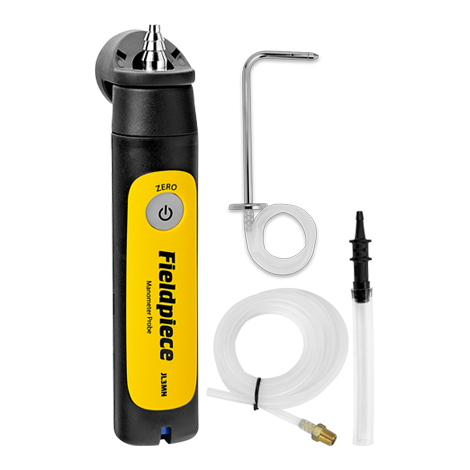

What's included:
-
1 JL3MN manometer probe
-
1 ASP2 static pressure probe and hose
-
Brass screw fitting with extra hose
- 1 slide gas adapter
-
2 AAA batteries
