KYORITSU

KYORITSU - TRMS Digital AC/DC CAT IV Clamp Meter - 1000A

2056R
$699.00 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
2056R

Usually ready in 24 hours

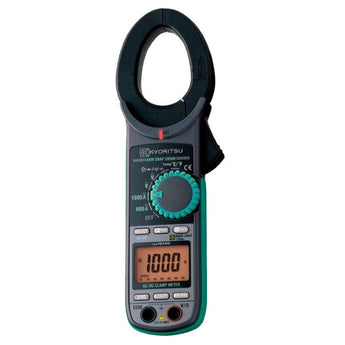

Kyoritsu 2056R 1000A TRMS Digital AC/DC CAT IV Clamp Meter

SKU:2056R

The Kyoritsu 2056R is a digital clamp meter is designed to meet international safety standard IEC 61010-1 CAT IV 600V and has the capability to read current up to 1000A AC/DC. The 2056R model features True RMS measurements providing greater accuracy on non-sinusoidal  and distorted waveforms.

The Kyoritsu 2056R also features a data hold function and peak hold function, as well as the ability to measure resistance up to 60MΩ. Temperature can be measured using an additional probe (not supplied) and capacitance can be tested. In addition, a max/min function is available to display the maximum and minimum values during a set period of time.

Furthermore, the tester has a non-contact voltage function, warning the user of AC voltage via a red LED indicator. Ergonomically designed, the Kyoritsu 2056R comprises a double moulded construction and features a bar graph display with backlight, for testing in low light conditions.

Kyoritsu 2056R Features:

  • Measures up to 1000A AC.
  • True RMS.
  • Measures up to 600V AC/DC.
  • Capacitance test.
  • Designed to meet international safety standard IEC 61010-1 CAT IV 600V.
  • 40mm jaw size
  • Max/min function.
  • Temperature between -50°C amd +300°C (probe not supplied).
  • Measures resistance up to 60MΩ.
  • Peak hold function.
  • Double moulded construction.
  • Auto power off
  • Data hold function.
  • Bar graph display with backlight.

Kyoritsu 2056R Specifications:

AC A (RMS) 0 – 600.0/1000A
±2.0%rdg±5dgt (50/60Hz)
±3.5%rdg±5dgt (40 – 500Hz)
DC A 0 – 600.0/1000A
±1.5%rdg±5dgt
AC V 6/60/600V
Auto Ranging
±1.5%rdg±4dgt (50/60Hz)
±3.5%rdg±5dgt (40 – 400Hz)
DC V 600m/6/60/600V
Auto Ranging
±1.0%rdg±3dgt
Ω 600/6k/60k/600k/6M/60MΩ (Auto Ranging)
±1%rdg±5dgt (600 – 6M) / ±5%rdg±8dgt (60M)
CONTINUITY BUZZER Buzzer Sounds at 100Ω
CAPACITANCE TEST 400n/4µ/40µF(Auto Ranging)
TEMPERATURE -50ºC – +300ºC (With the use of Temperature probe 8216)
FREQUENCY/DUTY 10/100/1k/10kHz (Auto Ranging) / 0.1 – 99.9%
CONDUCTOR SIZE Ø40mm
SAFETY STANDARD IEC 61010-1 CAT IV 600V,
IEC 61010-031,
IEC 61010-2-032,
IEC 61326
POWER SOURCE R03 (1.5V) (AAA) × 2
DIMENSIONS 254(L) × 82(W) × 36(D)mm
WEIGHT 310g
INCLUDED ACCESSORIES 7066A (Test leads)
9094 (Carrying case)
Instruction Manual
OPTIONAL ACCESSORIES 8216 (Temperature probe)

WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
