HVACDIRECT Basic HVAC Kit (Pump, Refrigerant Manifold & Leak Detector)

EBAYKIT10
$999.90 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
EBAYKIT10

HVACDIRECT Basic HVAC Kit (Pump, Refrigerant Manifold & Leak Detector)

KIT10



This HVACDIRECT KIT10, Basic HVAC Kit (Pump, Refrigerant Manifold & Leak Detector) is a high quality tool kit that is ideal for basic HVAC requirements. Included in this kit are some of HVAC Direct's best selling products.

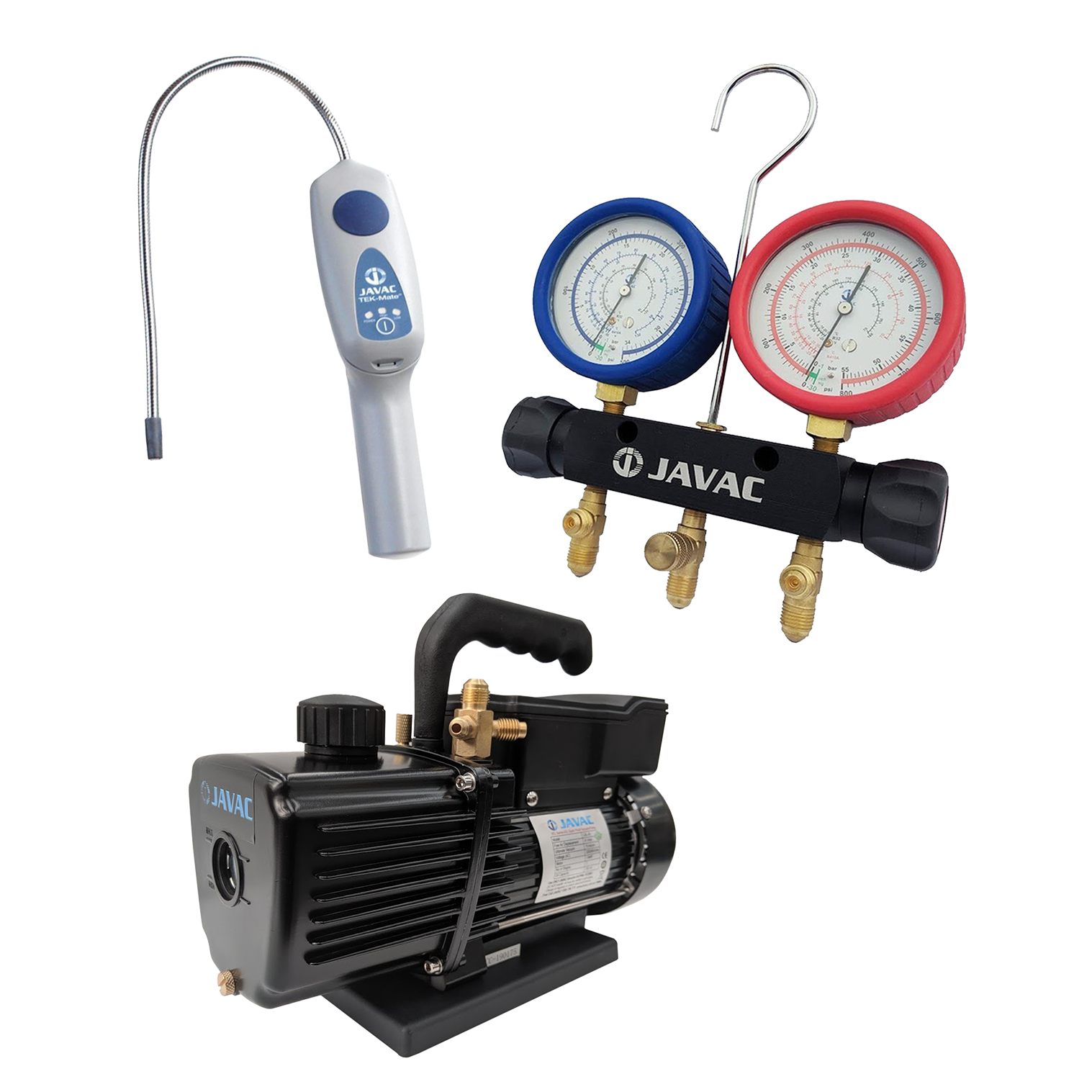

Kit contains:



#1. JAVAC CAL Series, 45 L/min, 2-stage Vacuum Pump - R32 Compliant

VCL452



This JAVAC CAL Series VCL452 is a quality 2-stage, oil rotary vane pump with a 45 L/min flow rate and a 15 micron ultimate vacuum.

This pump is ideal for general refrigeration service, and is packed with the features below.



Applications:

  • Bottle shops, convenient stores, restaurants and catering facilities

  • General Refrigeration

  • Residential or Industrial

  • Split system installation or servicing

Features/Benefits:

  • Comes with a free starter bottle of oil
  • R32 and 1234yf compliant
  • Manufactured to JAVAC's high quality standards
  • 45 L/min flow rate
  • 15 micron ultimate vacuum
  • Ballast valve
  • Anti-oil demister to prevent oil spillage
  • Fitted with a tri-connector: 1/4", 3/8" & 5/16" SAE
  • 350ml oil capacity
  • Dimensions (mm): 330x135x255
  • Weight (kg): 9.6kg



#2. JAVAC 2-Valve Refrigeration Manifold Set - R32 & R410a Compliant

JAVA66336



This JAVAC JAVA66336, 2-Valve Refrigeration Manifold Set has evolved from over 50 years of industry knowledge. With a 36" hose set and large 80mm gauges, this manifold set is designed for consistently accurate professional use.



Features:

  • High quality aluminium body
  • Piston values
  • Soft ergonomic with colour-coded knobs
  • Heavy-duty swivel hanging hook
  • Heavy-duty black carry case
  • 80mm gauges with soft cushion-protective cover, pulse-free pointer, zero-pointed calibration and colour-coded

Specifications:

  • 800 psi max recommended working pressure
  • Burst pressure 4,000 psi
  • Red, blue & yellow hoses: 72", 5/16" SAE connections
  • Included: 2-Valve Refrigeration Manifold, 3-piece hose set, hanging manifold hook & carry case



#3. INFICON Tek-Mate Leak Detector

705202G6



This INFICON 705202G6, Tek-Mate Leak Detector offers hand-held convenience. It boasts proven heated diode sensor technology and incorporates an electrochemical sensor consisting of a ceramic substrate, doped with a reactive element, and maintained at high temperatures by a built-in heating element.



Applications:

  • Residential

  • Light commercial

  • Industrial

  • Automotive A/C

Benefits:

  • Detects all CFC's, HCFC's and HFC's

  • Runs on 2 D-cell batteries

  • No adjustments required as it continuously monitors and compensates for changing background noise

Specifications:

  • HDST: Heated Diode Sensor Technology

  • Operating temperature: -20 - 50 °C

  • Minimum sensitivity: 5 g/yr

  • Sensor life: 100 hours

  • Battery life: 16 hours

WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
