WIPCOOL
WIPCOOL ALD1 Infrared Leak detector
Pickup available at 36 Enterprise Drive
Usually ready in 24 hours

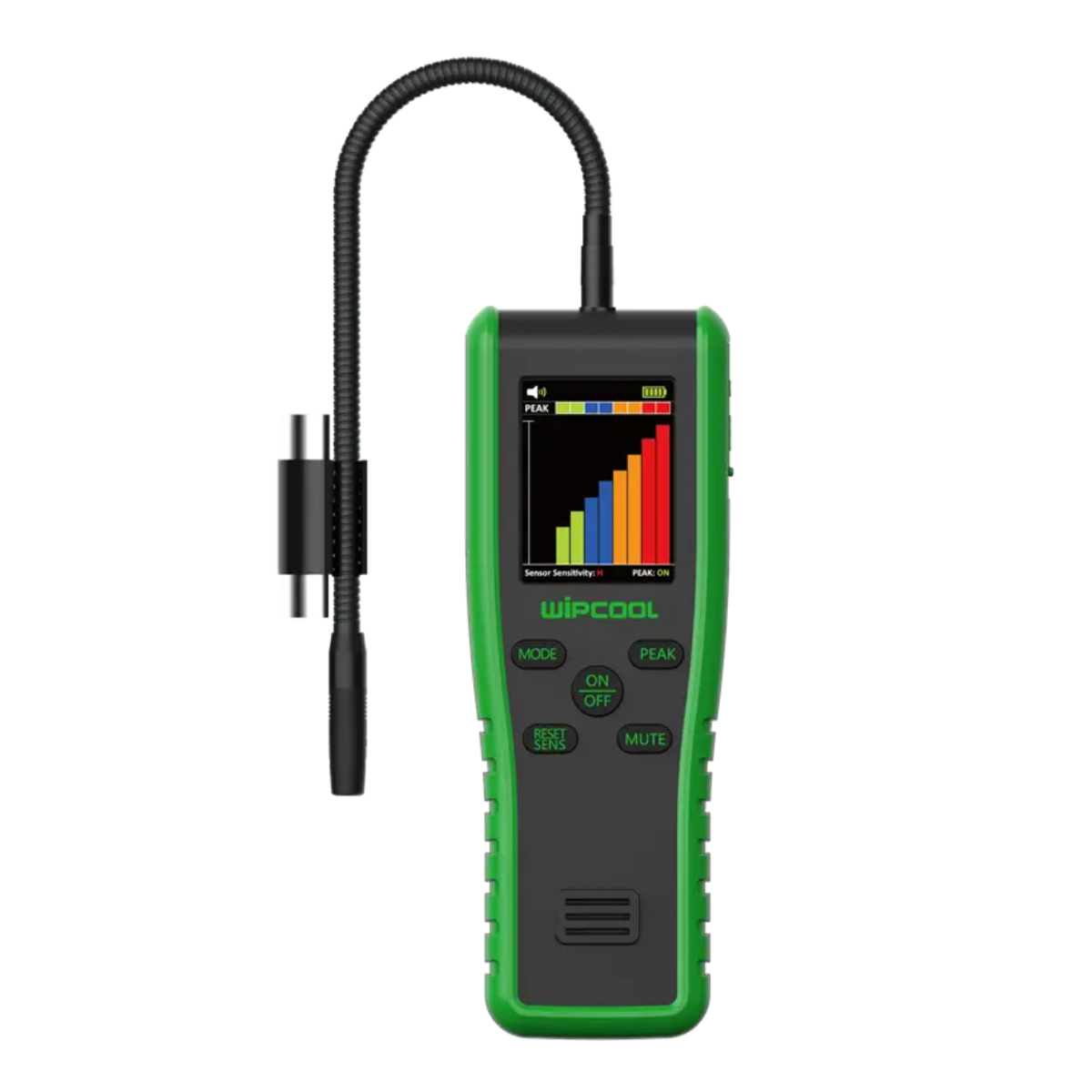

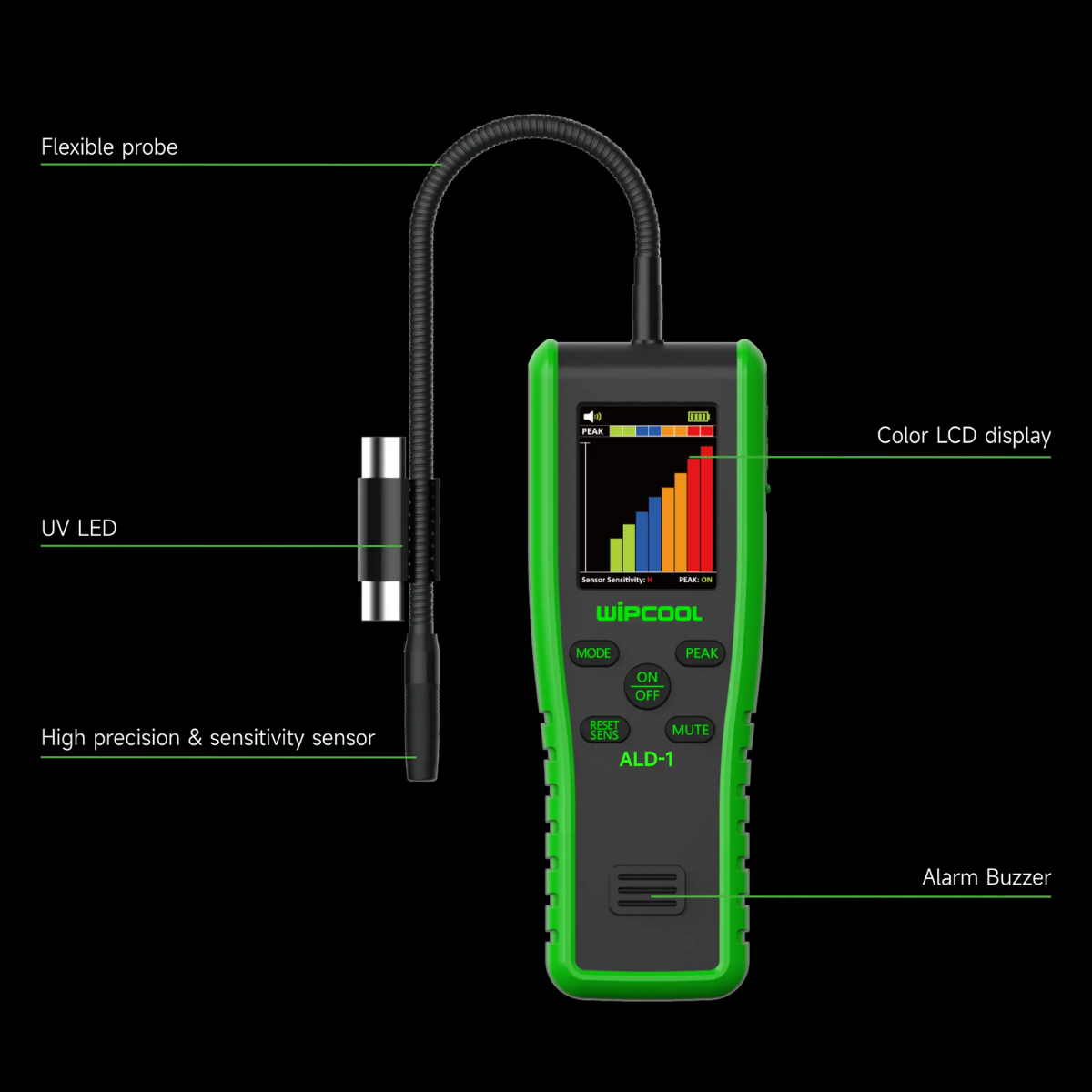

Wipcool ALD1 Infrared Refrigerant Leak Detector
The Wipcool ALD1 is a high-precision infrared leak detector designed for fast, reliable identification of refrigerant leaks across a wide range of systems. Built with a long-life IR sensor and intuitive visual/audible alerts, it delivers professional performance for HVAC technicians who need accuracy and durability on the job.
Key Features:
-
Infrared Sensor Technology: Stable, long-life IR sensor with up to 10 years service life.
-
High Sensitivity: Detects leaks as small as ≤4 g/year with a rapid ≤1-second response time.
-
Fast Start-Up: 30-second preheat for quick deployment.
-
Smart Alerts: Audible and visual alarms with TFT screen indication for clear leak visualization.
-
Wide Compatibility: Suitable for CFCs, HCFCs, HFCs, blends, and HFO-1234yf refrigerants.
-
Rugged & Practical: Operates from -10°C to 52°C with humidity tolerance up to 90% RH (non-condensing).
-
Portable Power: Runs on 2× 18650 rechargeable lithium batteries, providing up to 8 hours of continuous use per charge.
-
Compact Design: Measures 201 × 72 × 35 mm and weighs 450 g, ensuring comfortable handheld operation.
Specification
| Model | ALD-1 |
| Sensor Type: | Infrared sensor |
| Minimum Detectable Leakage: | ≤4 g/year |
|
Response Time: |
≤1 seconds |
| Preheating Time: | 30 seconds |
| Alarm Mode: | Audible and visual alarm; TFT indication |
| Operating Temperature Range: | -10-52℃ |
| Operating Humidity Range: | <90%RH(non-condensing) |
| Applicable Refrigerant: | CFCs, HFCs, HCFC Blends and HFO-1234YF |
| Sensor Lifetime: | ≤10 years |
| Dimensions: | 201x72x 35mm (7.9"x 2.8"x 1.4") |
| Weight: | 450g |
| Battery: | 2x 18650 rechargeable lithium battery, full charge for 8 hours continuous work |
