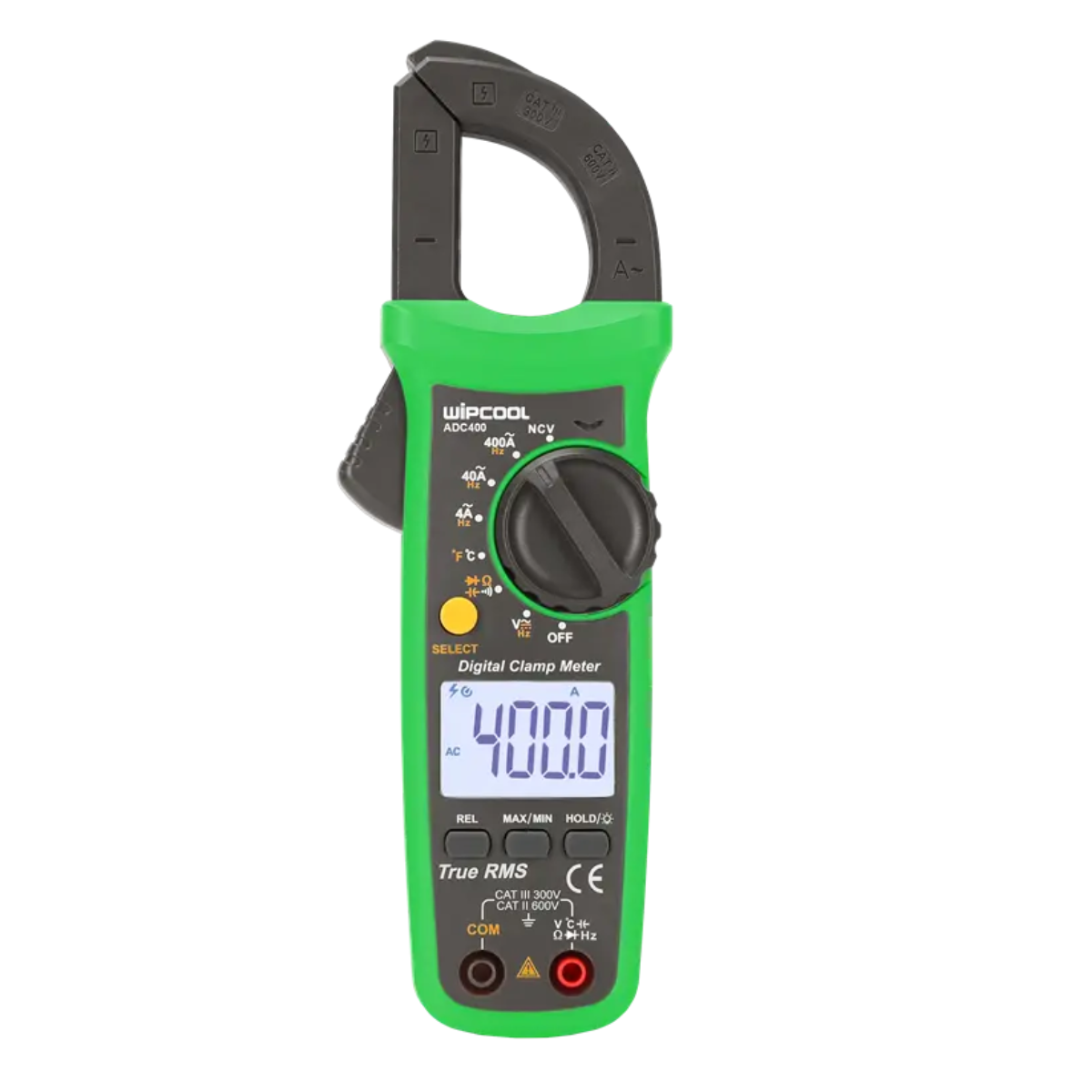

Wipcool ADC400 Digital Clamp Meter
The Wipcool ADC400 is a versatile, true-RMS digital clamp meter designed for fast, accurate electrical diagnostics across HVAC, industrial, and general electrical applications. With rapid capacitance measurement, wide-range voltage and current capabilities, and built-in safety features, it provides technicians with a dependable all-in-one testing solution.
Key Features:
-
Fast Capacitance Measurement: Quickly checks capacitors for HVAC and electrical troubleshooting.
-
NCV Detection with Audio/Visual Alerts: Ensures safe, contactless voltage detection.
-
True RMS Accuracy: Delivers precise readings even on non-linear loads.
-
AC Voltage Frequency Measurement: Measures frequency directly for more detailed analysis.
-
Large LCD Screen: Clear, easy-to-read display for use in low-light environments.
-
Comprehensive Protection: Includes false detection protection and overcurrent indication for safer operation.
Specification
| Model | ADC400 |
| AC current (A) | 400A |
| AC current frequency (Hz) | 50Hz~100HZ |
| DC voltage (V) | 600V |
| AC voltage (V) | 600V |
| AC voltage frequency (Hz) | 10Hz~10KHz |
| Resistance (Q) | 40MΩ |
| Capacitance(F) | 4mF |
| Temperature measurement (C/°F) | -40~1000℃/-40~1832°FS |
