HVACDIRECT Basic Auto Kit 3: Vacuum Pump, Manifold & Leak Detector

HVACDIRECT Basic Auto Kit 3- R134a (Vacuum Pump, Refrigerant Manifold & Leak Detector)

R134a-KIT3/ R134a-Kit3.5

This HVACDIRECT R134a-KIT3, Basic Auto Kit (Vacuum Pump, Refrigerant Manifold & Leak Detector) is a high-quality tool kit that is ideal for basic Auto A/C requirements. Included in this kit are some of HVAC Direct's best selling products.

Kit contains:

#1. JAVAC CAL Series pumps/Wipcool Series F pump

Option 1 - VCL452 - 45L/min

Option 2 - VCL822 - 80L/min

Option 3 - VCL1422 - 140L/min

Option 4 - VCL2322 - 230L/min

Option 5 - 2F0R - 45Lmin

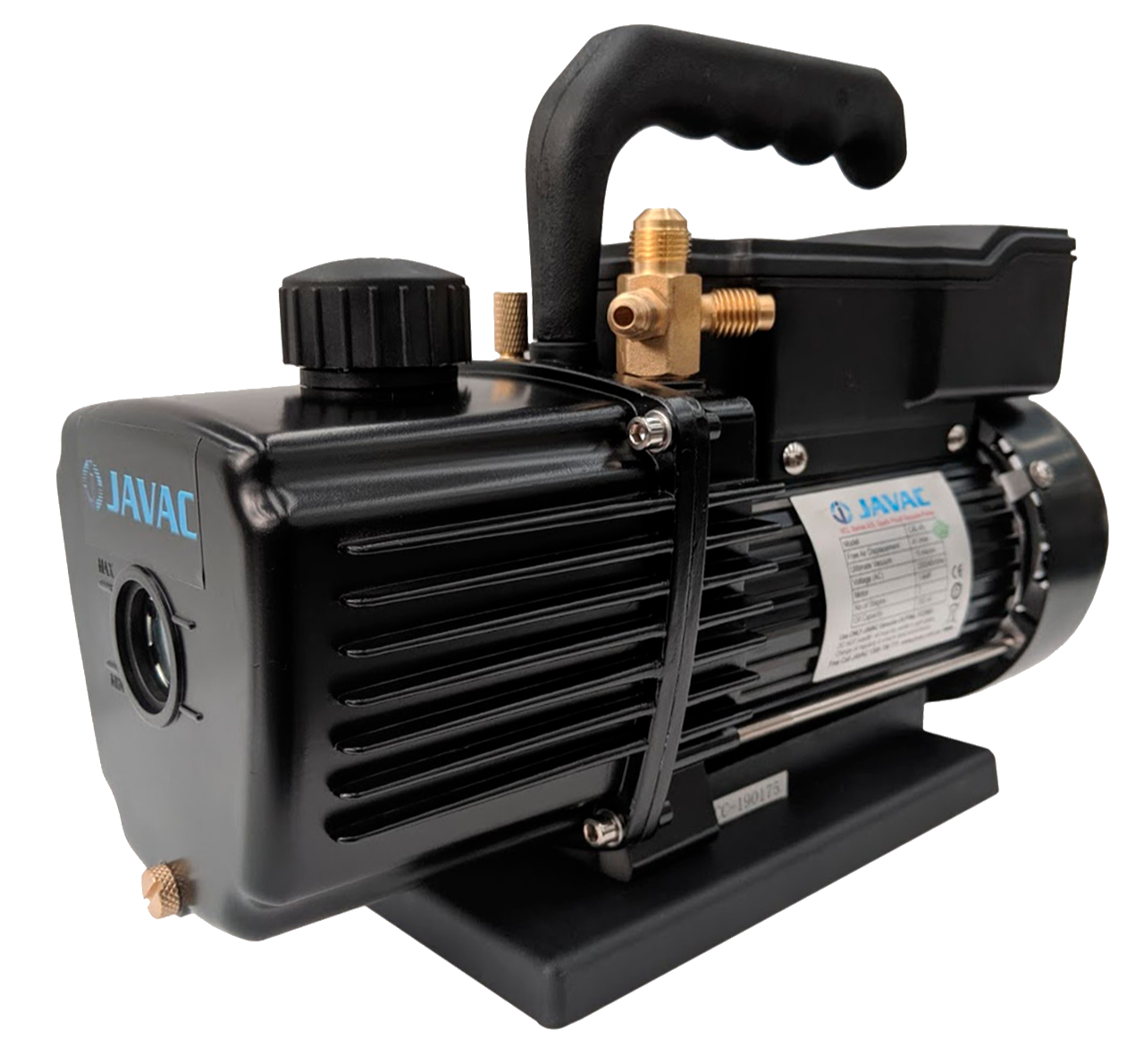

This JAVAC CAL Series VCL452 is a quality 2-stage, oil rotary vane pump with a 45 L/min flow rate and a 15-micron ultimate vacuum.

These pumps are ideal for general refrigeration service and is packed with the features below.

Applications:

• Bottle shops, convenient stores, restaurants and catering facilities

• General Refrigeration

• Residential or Industrial

• Split system installation or servicing

Features/Benefits:

• Comes with a free starter bottle of oil
• R32 and 1234yf compliant
• Manufactured to JAVAC's high quality standards
• 45, 80, 140, 230 L/min flow rate
• 15 micron ultimate vacuum
• Ballast valve
• Anti-oil demister to prevent oil spillage
• Fitted with a tri-connector: 1/4", 3/8" & 5/16" SAE
• 350ml, 420ml, 420ml, 610ml oil capacity

• Weight (kg): 9.6-12kg

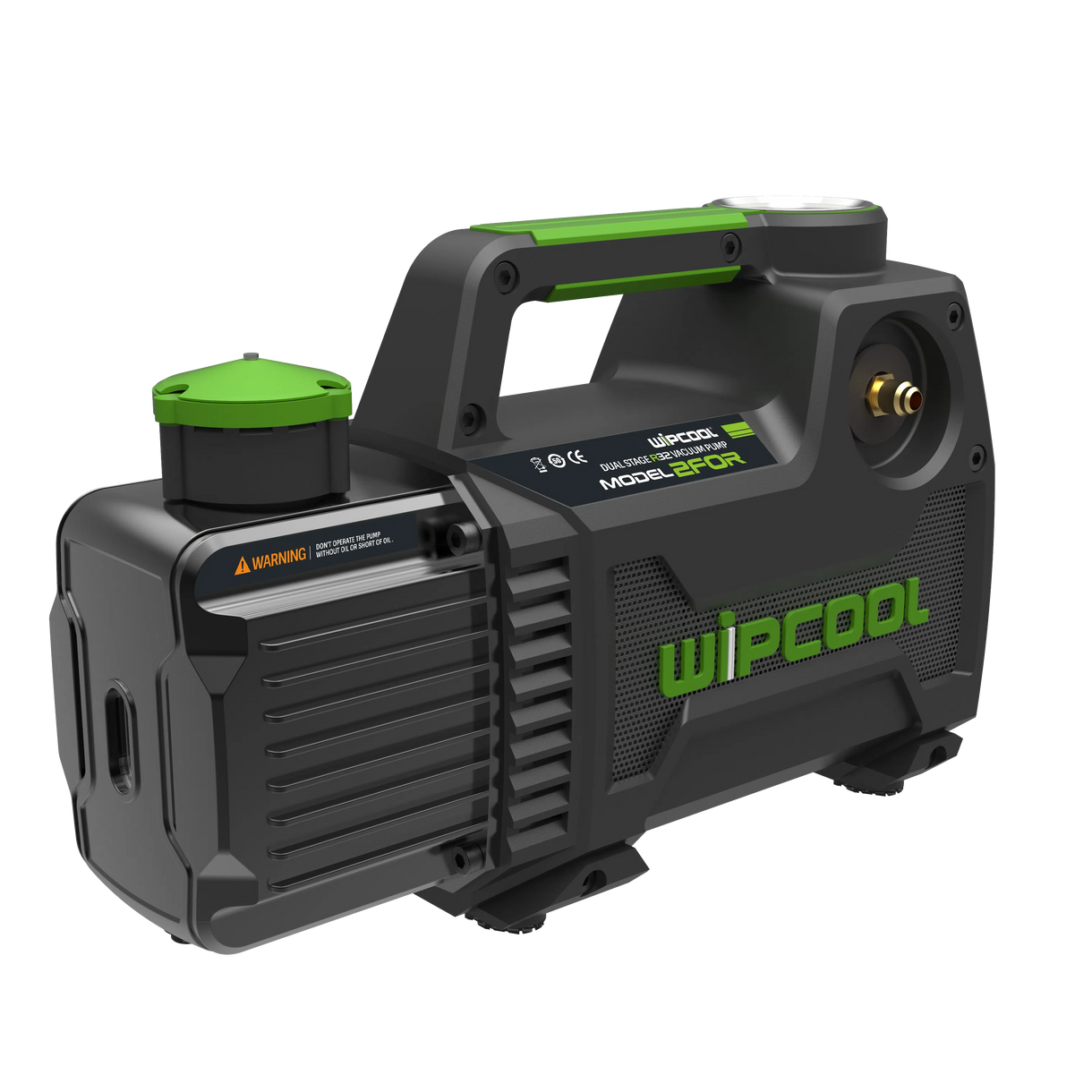

2F0R

This WIPCOOL 240V Series JAV2F0R is a quality 2-stage, oil rotary vane pump with a 45 L/min flow rate and a 15 micron ultimate vacuum.

This pump is ideal for general refrigeration service, and is packed with the features below.

Applications:

• Bottle shops, convenient stores, restaurants and catering facilities

• General Refrigeration

• Residential or Industrial

• Split system installation or servicing

Features/Benefits:

• Comes with a free starter bottle of oil
• R32 and 1234yf compliant
• Manufactured to WIPCOOL's high quality standards
• 45 L/min flow rate
• 15-micron ultimate vacuum
• Built-in vacuum gauge
• Automatic solenoid valve

• Anti-oil demister to prevent oil spillage
• Fitted with a 1/4" SAE connection (+3/8" SAE adapter)
• 300ml oil capacity
• Dimensions (mm): 309x113x198
• Weight (kg): 4.2kg

#2. HVD - 2-Valve Automotive Refrigerant Manifold Set - R134a

Option 1 - HMG2R134AII

Option 2 - VRM20401

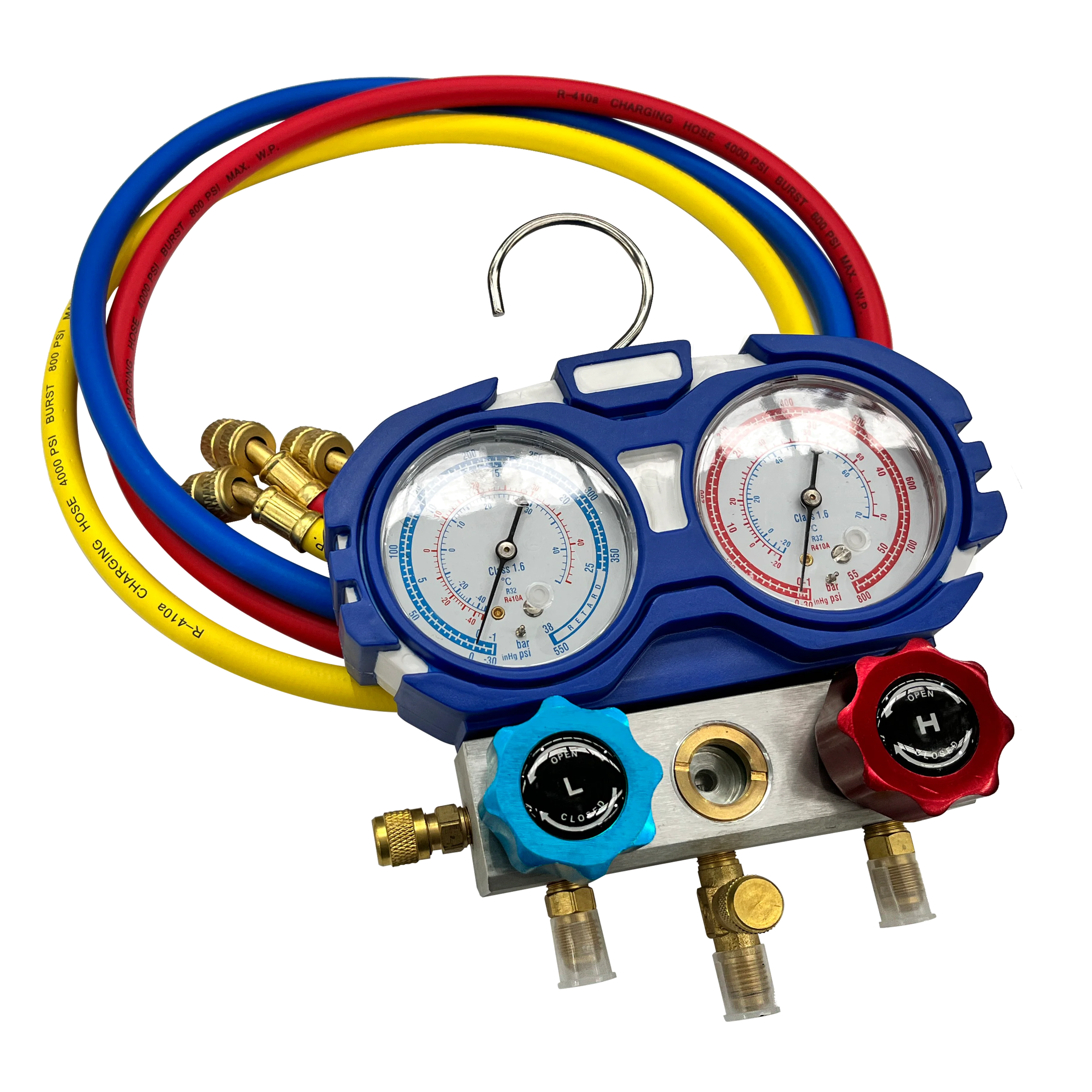

This HVD HMG2R134AII, 2-Valve Automotive Refrigerant Manifold Set is designed and manufactured for use with R134a. Made for professionals desiring to vacuum, charge, diagnose, or even evacuate refrigerant in automotive A/C systems.

Features:

• High quality extruded aluminium body
• Teflon diaphragm-valve mechanism for excellent sealing & large flow
• 80mm gauges with rubber protective cover
• Pulse-free gauge
• Zero-pointed calibration
• Extra-large sight glass for visual refrigerant check
• Soft ergonomic design with colour-coded knobs

Specifications:

• 2-Valve anodised aluminium body with 1/4" SAE fittings
• Gauge type: 80mm class 1.0 accuracy gauges with internal silicon dampeners for flutter-free operation
• Hoses: Premium 36" JAVAC hose set with 1/4" SAE fittings
• Ear buds
• Heavy duty carrying case

VALUE Refrigerant Manifold/Gauge Set

VRM20401

This VALUE VRM20401, Refrigerant Manifold/Gauge Set provides a complete manifold/gauge kit for all professionals. This durable yet ergonomic design is part of VALUE's NAVTEK range and is a top quality & extremely reliable kit.

Features:

• Suitable for: R22/R134a/R410a/R407c
• Dial size: 70mm
• Pressure range: -30INHG~800PSI; -30INHG~550PSI
• Hose set: RED: 1/4"-5/16"; YELLOW: 1/4"-1/4"; BLUE: 1/4"-5/16"; built-in 2 adapters, external thread: 5/16" SAE , internal thread: 1/14" SAE
• Hose length: 150cm
• Comes in blow moulded carry case

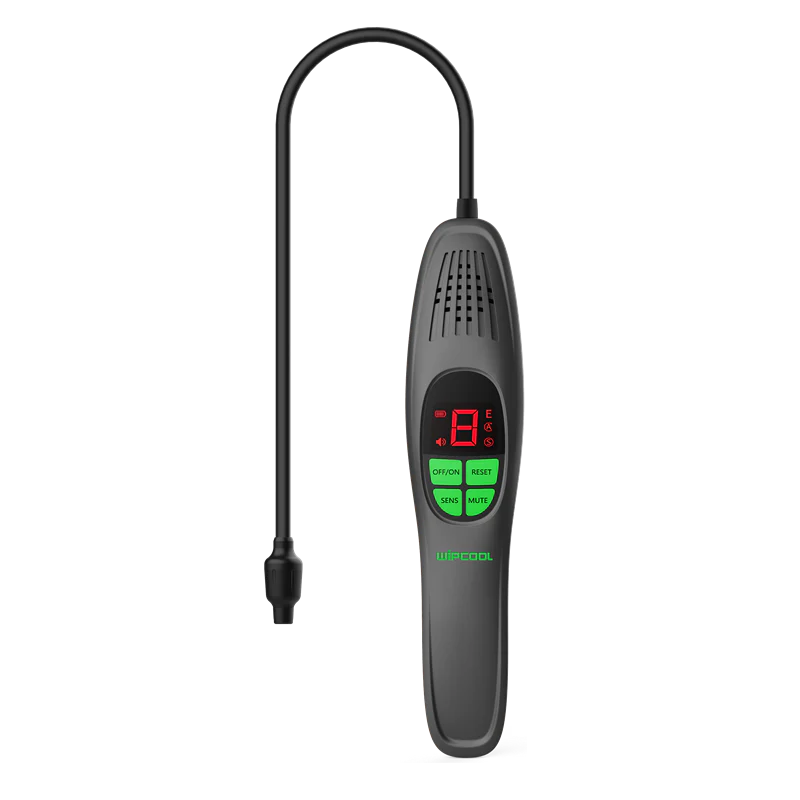

#3. WIPCOOL ALD-2 HEATED DIODE REFRIGERANT LEAK DETECTOR

ALD2

Features:

• Flexible probe
• High precision and sensitivity sensor
• LCD Display

Specifications:

• Sensor type: Heated diode gas sensor
• Minimum detectable leakage: ≤3g/year
• Reaction time: ≤ 3 seconds
• Warm-up Time: 30 seconds
• Reset Time: ≤ 10 seconds
• Operating Temperature Range: 0-50 ℃
• Operating Humidity Range: <80% RH (non-condensing)
• Applicable Refrigerant: CFCs, HCFCs, HFCs. HCs and HFOs
• Sensor lifetime: ≥ 1 year
• Reset: Automatic/ Manual
• Probe Length: 420mm (16.5 in)
• Battery: 3 x AA alkaline battery, 7 hours continuous working
