KYORITSU
KYORITSU - 2500 - DC Milliamp Process Clamp Meter
Pickup available at 36 Enterprise Drive
Usually ready in 24 hours

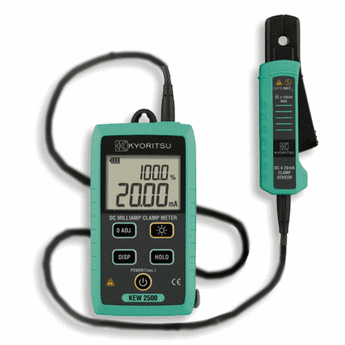

KYORITSU - 2500 - DC Milliamp Process Clamp Meter
SKU:2500
The Kyoritsu 2500 is a high precision milliamp clamp meter with a specified 0.02% accuracy. Possessing a 0.01mA resolution, the 2500 model is capable of measuring DC current from 0.01mA to 120mA.
The Kyoritsu 2500 DC Milliamp Process Clamp Meter is ideal in maintaining and troubleshooting process and automation equipment without breaking the loop and interrupting the process.
The Kyoritsu 2500 DC Milliamp Process Clamp Meter comprises a 6mm clamp jaw, allowing the meter to be utilised in tight working conditions. An analogue output terminal is also present on the tester, providing the ability to integrate a recorder or logger.
Similar to the Fluke 771 / 772 / 773 Milliamp Process Clamp Meters.
Kyoritsu 2500 DC Milliamp Process Clamp Meter Specifications:
| DC A | 20/100mA (Auto ranging) ±0.2%rdg±5dgt (0.00mA – 21.49mA) ±1.0%rdg±5dgt (21.0mA – 120.0mA) |
|---|---|
| CONDUCTOR SIZE | Ø6mm max. |
| ANALOGUE OUTPUT | Recorder: DC 1000mV against DC 100mA |
| APPLICABLE STANDARDS | IEC 61010-1, Pollution degree 2 IEC 61010-2-032, IEC 61326-1(EMC) IEC 60529 IP40, EN50581(RoHS) |
| OPERATING TEMPERATURE & HUMIDITY RANGE | -10 – +50ºC < 85% |
| STORAGE TEMPERATURE & HUMIDITY RANGE | -20 – +60ºC < 85% |
| POWER SOURCE | R6/LR6 (AA) (1.5V) × 4 |
| DIMENSIONS | 111(L) × 61(W) × 40(D)mm : Display unit 104(L) × 34(W) × 20(D)mm : Sensor 700mm : Sensor cable |
| WEIGHT | Approx. 290g (including batteries) |
| INCLUDED ACCESSORIES | 9096 (Carrying case), LR6 (AA) × 4, Instruction Manual |
| OPTIONAL ACCESSORIES | 7256 (Output cord) |
