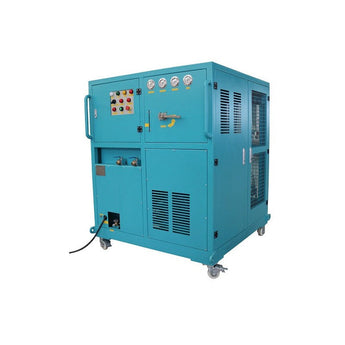

CM580-EP Refrigerant Recovery System (Explosion Proof)

CM580-EP Refrigerant Recovery System (Explosion Proof)

CM580-EP

Products in CM580-EP refrigerant recovery machine is specially designed for ISO tank vapor and liquid recovery. It adopts powerful three stage compressor and suitable for various refrigerant R410A, R32, R600, R22, R134A etc.

Application

Chiller Maintenance

ISO Tank Recovery

Feature

• Large displacement oil-less compressor for avoid refrigerant cross contamination
• Ultra-fast recovery rate for both liquid and vapor refrigerants
• One valve to exchange vapor recovery and liquid push pull recovery
• HP and LP shut-off function
• Standard air cooled and compressor individual cooling for high efficiency heat exchange rate
• Deep vacuum degree allow recovery more refrigerant for avoid refrigerant loss
• Equipped with explosion proof motor and control box for flammable refrigerant
• Continuously running for 24 hours duty cycle
• Low RPM with large compressor flow rate make it durable with long working life
• ISO Tank vapor recovery time 4hours

Specification

• Motor:25HP
• Compressor: Oil-Less Piston Three-Cylinder
• Compressor Flow Rate:57m³/h
• Vapor Recovery Rate:300Kg/h
• Liquid Push Pull Recovery Rate:15000Kg/h
• Cooling Type: Air Cooled, Water Cooled
• Voltage:380V 50Hz 3PH
